The stereoisomer is meso but can someone help me draw and justify the mechanism

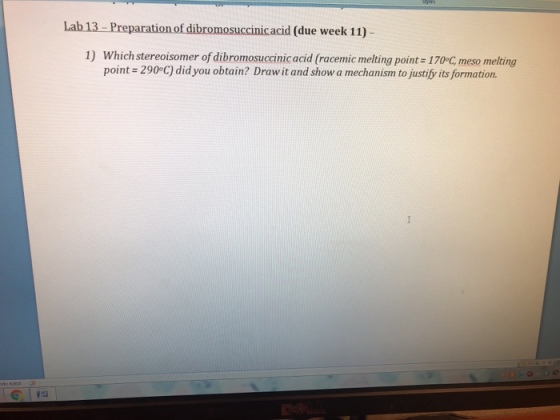

Lab 13- Preparation of dibromosuccinicacid (due week 11) 1) Which stereoisomer of dibromosuccinic acid (racemic melting point 170°C, meso melting point 2900C) did you obtain? Draw it and show a mechanism to justify its formation.
science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

OOH Br Br HOOC H OOH r COOH (2R,3S)-2,3-dibromosuccinic acid HOOC HooCa Br fumaric acid H COOH Br Fumaric acid gives bromoniu

0 0
