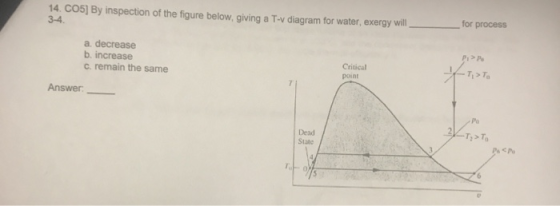

![14. CO5] By inspection of the figure below, giving a Tov diagram for water, exergy will 3-4. for process a. decrease b. incre](http://img.homeworklib.com/questions/5b4466a0-3cba-11eb-8595-5187236698d6.png?x-oss-process=image/resize,w_560)
Homework Answers
Exergy is the energy that available to be used.
When system and surrounding are in equilibrium , exergy is zero
Since process 3-4 has temperature T2 .Which greater than ambient temperature To
Hence exergy will increases
Ans(b) increase
Add Answer to:
14. CO5] By inspection of the figure below, giving a Tov diagram for water, exergy will...
Exergy
Steam enters a closed feed-water heater at 2 MPa and 300oC and leaves as saturated liquid at the same pressure. On the other side, cold feed-water enters the heater at 3 MPa and 35oC and leaves 10oC below the exit temperature of the steam. Neglect any heat losses from the outer surfaces of the heater and assume the surroundings to be at 25oC. Determine (a) the ratio of the mass flow rates of the extracted steam and the feedwater, (b)...
