Homework Answers
a. M = AB+CD
| A | B | C | D | M |
|---|---|---|---|---|
| F | F | F | F | F |
| F | F | F | T | F |
| F | F | T | F | F |
| F | F | T | T | T |
| F | T | F | F | F |
| F | T | F | T | F |
| F | T | T | F | F |
| F | T | T | T | T |
| T | F | F | F | F |
| T | F | F | T | F |
| T | F | T | F | F |
| T | F | T | T | T |
| T | T | F | F | T |
| T | T | F | T | T |
| T | T | T | F | T |
| T | T | T | T | T |
b. P = (AC+BC)(A+C) P = ACA+ACC+BCA+BCC P = AC+AC+BCA+BC P = AC+BCA+BC P = (AC)(1+B)+BC P = (AC)(1)+BC P = AC+BC P = (A+B)C
| A | B | C | P |
|---|---|---|---|
| F | F | F | F |
| F | F | T | F |
| F | T | F | F |
| F | T | T | T |
| T | F | F | F |
| T | F | T | T |
| T | T | F | F |
| T | T | T | T |
Add Answer to:
solve logic expression and write truth table for both

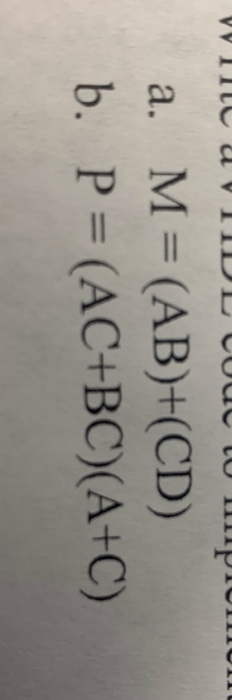

WILUVIIDouo 11 Р a. M=(AB)+(CD) b. P...
a. Write the truth table for the following expression A 'BC + AB 'C' + A...
a. Write the truth table for the following expression A 'BC + AB 'C' + A 'B 'C' + AB 'C + ABC where A' indicates not A. b. Prove that abc' + bc'd' + bc + c'd = b + c'd c. Draw the NAND gate implementation for F = BC + AB + A'B'C'D
Prove or disprove the following expression. (Prove: using Boolean algebra. Disprove: using truth table.) (NOT is...
Prove or disprove the following expression. (Prove: using Boolean algebra. Disprove: using truth table.) (NOT is presented by -.) 1. a + b (c^- + d)^- = a^-b^- + a^-cd^- 2. ab^- + bc^- + ac^- = (a + b + c) (a^- + b^-+ c^-) 3. a^- + bd^-^- (c + d) + ab^-d = ac^-d + ab^-cd + abd
Boolean Logic 1. Draw the truth table for the following functions: OF(A,B) = AB + (A...
Boolean Logic 1. Draw the truth table for the following functions: OF(A,B) = AB + (A + B) • F(A, B, C) = AB + BC+CA • F(A, B, C, D = ABC + ABD + BCD
Write the truth table for each of the following logic functions: F=(A'+B'+CD)(B+C'+D'E')
Write the truth table for each of the following logic functions: F=(A'+B'+CD)(B+C'+D'E')
1. Logic Circuits, Truth Table. k-mapping, Back to Logic Circuits.
introduction to HDL, 1. Logic Circuits. Draw the equivalent logic circuit diagram of the given expression. F = (ab)̅̅̅̅̅̅ + (ac)2. Truth Table. Provide the truth table from your logic circuit in part 1. 3. K-Mapping. Simplify the circuit using the truth table you derived from part 2. 4. Back to Logic Circuits. Draw the equivalent logic circuit diagram of your simplified expression frompart 3.
Simplify the logic express Y(a,b,c)=(ab)'+acd'+a(bc)'+a'bc+(ab)'cd+a(cd)'.
Simplify the logic express Y(a,b,c)=(ab)'+acd'+a(bc)'+a'bc+(ab)'cd+a(cd)'.
9. (Expression Truth Table) Determine the truth table for the three-input XOR function y = 11...
9. (Expression Truth Table) Determine the truth table for the three-input XOR function y = 11 12 13. You may first evaluate i n and then evaluate y as y=( 12) 13. In the truth table, besides the columns for 11.12.13 and y, also include a column corresponding to I 1. Also use a word statement to describe this logic function and indicate a possible application of the function 10. (Expression Circuit) Draw a circuit schematic which realizes the logic...
Boolean Logic A. Show the truth table for this expression: X AND (Y XOR X) B....
Boolean Logic A. Show the truth table for this expression: X AND (Y XOR X) B. Show the truth table for this expression: Y OR (Y AND NOT X) C. Show the truth table for this expression: X NOR (Y NAND X) D. Draw a digital logic circuit for the expression used in 3A. E. Draw a digital logic circuit for the expression used in 3B. F. Draw a digital logic circuit for the expression used in 3C.
Objective: Practice converting a Boolean logic expression into it’s truth table and to show the implementation...
Objective: Practice converting a Boolean logic expression into it’s truth table and to show the implementation of the logic function with hardware logic gates. _ _ Given the Boolean logic expression for output D: A B C + A B C = D In the space below show how you would implement a circuit where the inputs are A, B and C and the output is D with standard logic gates. In the space below assemble the Truth...
2. Prove the logic equations for: a) /ABC + A/BC + AB/C + ABC AB +...
2. Prove the logic equations for: a) /ABC + A/BC + AB/C + ABC AB + BC + CA b) AB + /AB + /A/B = /A + B using the truth table approach. The / indicates NOT for the variable immediately following it.
a. Write the truth table for the following expression A 'BC + AB 'C' + A 'B 'C' + AB 'C + ABC where A' indicates not A. b. Prove that abc' + bc'd' + bc + c'd = b + c'd c. Draw the NAND gate implementation for F = BC + AB + A'B'C'D
Prove or disprove the following expression. (Prove: using Boolean algebra. Disprove: using truth table.) (NOT is presented by -.) 1. a + b (c^- + d)^- = a^-b^- + a^-cd^- 2. ab^- + bc^- + ac^- = (a + b + c) (a^- + b^-+ c^-) 3. a^- + bd^-^- (c + d) + ab^-d = ac^-d + ab^-cd + abd
Boolean Logic 1. Draw the truth table for the following functions: OF(A,B) = AB + (A + B) • F(A, B, C) = AB + BC+CA • F(A, B, C, D = ABC + ABD + BCD
9. (Expression Truth Table) Determine the truth table for the three-input XOR function y = 11 12 13. You may first evaluate i n and then evaluate y as y=( 12) 13. In the truth table, besides the columns for 11.12.13 and y, also include a column corresponding to I 1. Also use a word statement to describe this logic function and indicate a possible application of the function 10. (Expression Circuit) Draw a circuit schematic which realizes the logic...
2. Prove the logic equations for: a) /ABC + A/BC + AB/C + ABC AB + BC + CA b) AB + /AB + /A/B = /A + B using the truth table approach. The / indicates NOT for the variable immediately following it.
