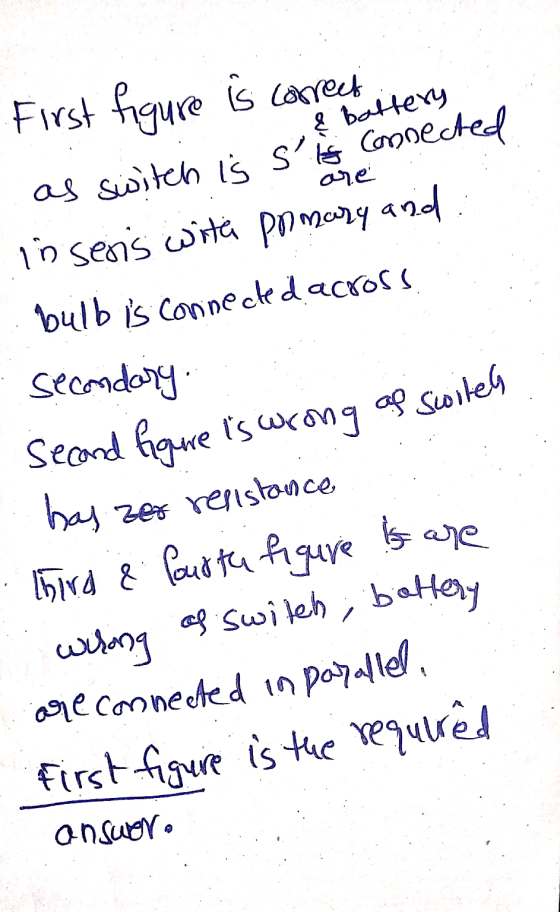

A 9.0-V battery (with nonzero resistance) and switch are connected in series across the primary coil of a transformer. The secondary coil is connected to a lightbulb that operates on 120 V.

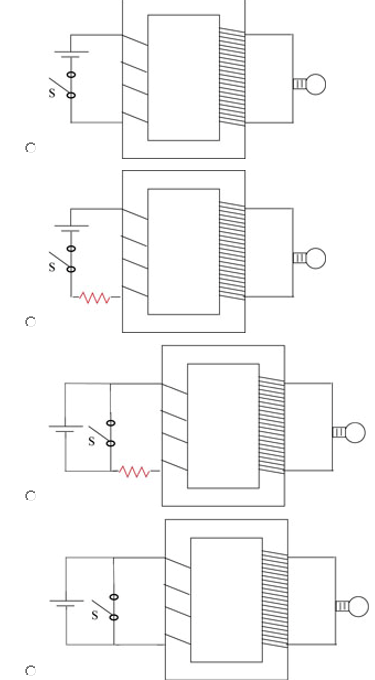

Choose the correct draw of the circuit.
Homework Answers
Add Answer to:
A 9.0-V battery (with nonzero resistance) and switch are
connected in series across the primary coil...
The switch in an effective LR series dc-circuit (consisting of an emf and a coil with...
The switch in an effective LR series dc-circuit (consisting of an emf and a coil with inductance L = 0.5 H and unknown internal resistance) is closed at t = 0 sec. At t = r, the current is 9.5 A and is increasing at a rate of 1.1 A/s. What must the internal resistance of the coil be? A step-up transformer is designed to have an output voltage of 1800 V (rms) when the primary is connect across a...
Two identical lightbulbs are connected in series to a single 9.0 V battery. Choose the correct...
Two identical lightbulbs are connected in series to a single 9.0
V battery.
Choose the correct graph showing the potential as a function of
distance through the circuit, starting withV = 0 V at the
negative terminal of the battery.
A transformer changes 120 V across the primary to 1200 V across the secondary. If the...
A transformer changes 120 V across the primary to 1200 V across the secondary. If the secondary coil has 1556, how many turns does the primary coil have?
4. Suppose that you are supplied with this equipment: 1 non-ideal battery (with internal resistance r...
4. Suppose that you are supplied with this equipment: 1 non-ideal battery (with internal resistance r 0.012 Q), plus 2 switches and plenty of wire (of negligible resistance) parallel-plate capacitor, initially uncharged. 4 identical ohmic resistors, each with resistance R 4.00 2 solenoid inductors, with inductance values L, and L, respectively. Inductor A is half as long as inductor B Inductor A has a diameter of 5.30 cm; inductor B has a diameter of 6.36 cm And you conduct the...
4. Suppose that you are supplied with this equipment: 1 non-ideal battery (with internal resistance r...
4. Suppose that you are supplied with this equipment: 1 non-ideal battery (with internal resistance r 0.012 Q), plus 2 switches and plenty of wire (of negligible resistance) parallel-plate capacitor, initially uncharged. 4 identical ohmic resistors, each with resistance R 4.00 2 solenoid inductors, with inductance values L, and L, respectively. Inductor A is half as long as inductor B Inductor A has a diameter of 5.30 cm; inductor B has a diameter of 6.36 cm And you conduct the...
A 12-V battery is connected in series with a switch, resistor and coil. If the circuit's...
A 12-V battery is connected in series with a switch, resistor and coil. If the circuit's time constant is 2.0 ´ 10-4 s and the final steady current after the switch is closed becomes 1.0 A, what is the value of the inductance? Question 60 options: 1) 1.2 mH 2) 2.4 mH 3) 9.6 mH 4) 48 mH 5) 96 mH WILL RATE!!
resistor a switch, and a 12 V battery 7) A 20 mH coil inductor is connected...
resistor a switch, and a 12 V battery 7) A 20 mH coil inductor is connected in series with a) (5 pts) What is the time constant of the circuit? b) (10 pts) How long after the switch is closed will it take for the current to reach 99 percent of final value? e) (5 pts) A long time after the switch is closed, what is the energy stored in the coil? W 10000
A resistor of 15 and a coil are connected in series with a 6.30V battery with...
A resistor of 15 and a coil are connected in series with a 6.30V battery with negligible internal resistance and a closed switch. At the instant of 2.00 ms after opening the circuit the current is 0.210A, the inductance of the coil is: a. 94.5 H b. 13.3 mH c. 42.0 mH d. 43.3 mH
4. Suppose that you are supplied with this equipment: 1 non-ideal battery (with internal resistance r 0.012 Q), plu...
4. Suppose that you are supplied with this equipment: 1 non-ideal battery (with internal resistance r 0.012 Q), plus 2 switches and plenty of wire (of negligible resistance) parallel-plate capacitor, initially uncharged. 4 identical ohmic resistors, each with resistance R 4.00 2 solenoid inductors, with inductance values L, and L, respectively. Inductor A is half as long as inductor B Inductor A has a diameter of 5.30 cm; inductor B has a diameter of 6.36 cm And you conduct the...
Suppose that you are supplied with this equipment 4. Inon-ideal battery (with internal resistance r 0.012 ), plus 2...
Suppose that you are supplied with this equipment 4. Inon-ideal battery (with internal resistance r 0.012 ), plus 2 switches and plenty of wire (of negligible resistance). I parallel-plate capacitor, initially uncharged. 4 identical ohmic resistors, each with resistance R 400 Q 2 solenoid inductors, with inductance values L and Ly, respectively. Inductor A is half as long as inductor B Inductor A has a diameter of 5.30 cm; inductor B has a diameter of 6.36 cm And you conduct...
The switch in an effective LR series dc-circuit (consisting of an emf and a coil with inductance L = 0.5 H and unknown internal resistance) is closed at t = 0 sec. At t = r, the current is 9.5 A and is increasing at a rate of 1.1 A/s. What must the internal resistance of the coil be? A step-up transformer is designed to have an output voltage of 1800 V (rms) when the primary is connect across a...
Two identical lightbulbs are connected in series to a single 9.0
V battery.
Choose the correct graph showing the potential as a function of
distance through the circuit, starting withV = 0 V at the
negative terminal of the battery.
4. Suppose that you are supplied with this equipment: 1 non-ideal battery (with internal resistance r 0.012 Q), plus 2 switches and plenty of wire (of negligible resistance) parallel-plate capacitor, initially uncharged. 4 identical ohmic resistors, each with resistance R 4.00 2 solenoid inductors, with inductance values L, and L, respectively. Inductor A is half as long as inductor B Inductor A has a diameter of 5.30 cm; inductor B has a diameter of 6.36 cm And you conduct the...
4. Suppose that you are supplied with this equipment: 1 non-ideal battery (with internal resistance r 0.012 Q), plus 2 switches and plenty of wire (of negligible resistance) parallel-plate capacitor, initially uncharged. 4 identical ohmic resistors, each with resistance R 4.00 2 solenoid inductors, with inductance values L, and L, respectively. Inductor A is half as long as inductor B Inductor A has a diameter of 5.30 cm; inductor B has a diameter of 6.36 cm And you conduct the...
resistor a switch, and a 12 V battery 7) A 20 mH coil inductor is connected in series with a) (5 pts) What is the time constant of the circuit? b) (10 pts) How long after the switch is closed will it take for the current to reach 99 percent of final value? e) (5 pts) A long time after the switch is closed, what is the energy stored in the coil? W 10000
4. Suppose that you are supplied with this equipment: 1 non-ideal battery (with internal resistance r 0.012 Q), plus 2 switches and plenty of wire (of negligible resistance) parallel-plate capacitor, initially uncharged. 4 identical ohmic resistors, each with resistance R 4.00 2 solenoid inductors, with inductance values L, and L, respectively. Inductor A is half as long as inductor B Inductor A has a diameter of 5.30 cm; inductor B has a diameter of 6.36 cm And you conduct the...
Suppose that you are supplied with this equipment 4. Inon-ideal battery (with internal resistance r 0.012 ), plus 2 switches and plenty of wire (of negligible resistance). I parallel-plate capacitor, initially uncharged. 4 identical ohmic resistors, each with resistance R 400 Q 2 solenoid inductors, with inductance values L and Ly, respectively. Inductor A is half as long as inductor B Inductor A has a diameter of 5.30 cm; inductor B has a diameter of 6.36 cm And you conduct...
