With a cumulative compound connection, the shunt field coil is making a pole piece an N...

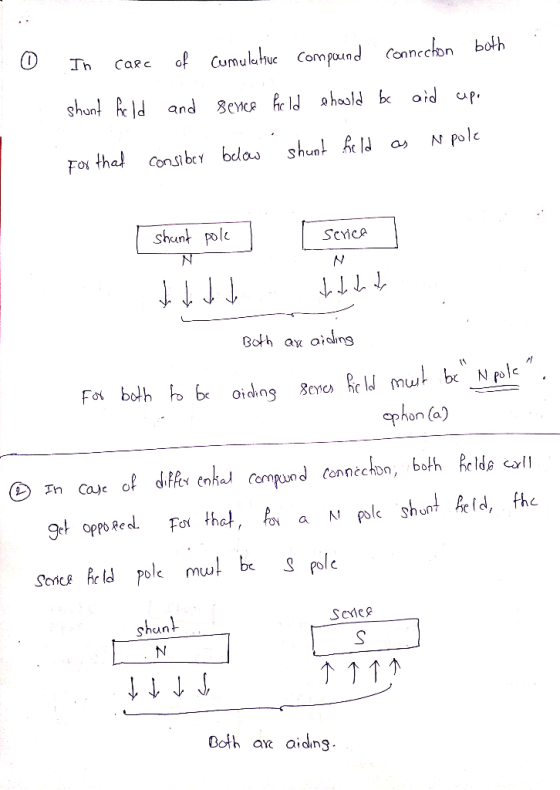

With a cumulative compound connection, the shunt field coil is making a pole piece an N pole while the series field coil is trying to make the same pole pieces:
a. An N pole.
b. An S pole.
c. Not any pole.
With a differential compound connection, the shunt field coil is making a pole piece an N pole while the series field coil is trying to make the same pole piece:
a. An N pole.
b. An S pole.
c. Not any pole.
