Add Answer to:

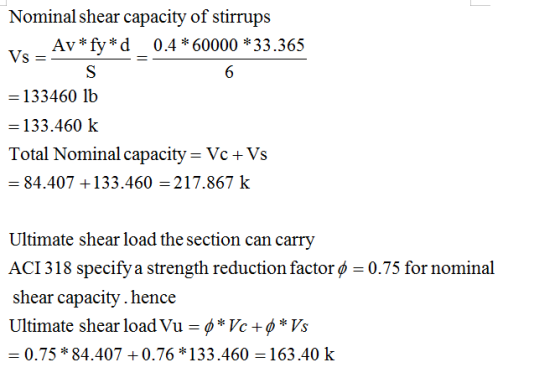

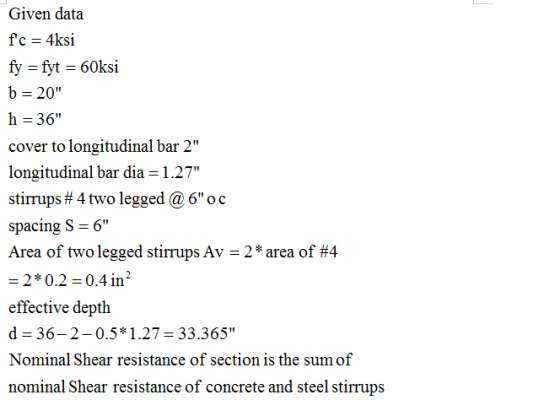

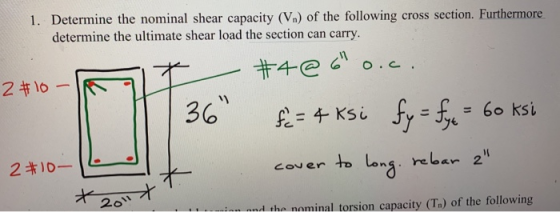

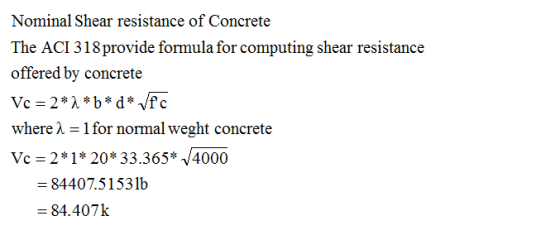

1. Determine the nominal shear capacity (V.) of the following cross section. Furthermore determine the ultimate...
Problem 2 Determine the nominal moment capacity for the reinforced concrete beam shown. The beam ...
Problem 2 Determine the nominal moment capacity for the reinforced concrete beam shown. The beam cross section has a width 10 inch and a depth 20 inch. The beam is reinforced with a tension steel reinforcement of 3#8 with an area of steel # 2.37 inch Assume grade 60 steel with a yield strss, Fy 60 ksi d 20 3#8 2.37/ 2 As B-10"
Problem 2 Determine the nominal moment capacity for the reinforced concrete beam shown. The beam cross...
Problem 2. Plot (Excel plot) the nominal capacity interaction diagram of the column shown below by...
Problem 2. Plot (Excel plot) the nominal capacity interaction diagram of the column shown below by calculation (hand calculation) of the following points on the diagram and connecting them with straight lines. A) Pure compression, Mn=0 B) No tension in tension steel, fs=0 C) Balance point, Ec= ecu and €5=ey D) Tension controlled section limit, ec= ecu and es= 0.005 E) Pure bending, Pn=0 F) Pure tension, Mn=0 b f'c = 4 ksi fy = 60 ksi b = h...
A beam is loaded by a shear force V. The beam cross-section is shown below. The...
A beam is loaded by a shear force V. The beam cross-section is
shown below. The moment of inertia of the cross-section is 347.1
in4. The centroid of the cross-section is 6.25 inches
from the base. Determine:
a) the shear stress at point A.
b) the shear stress at point B.
c) the maximum shear stress in the cross-section.
V = 50 (kips)
The maximum shear stress at point A is _____(ksi)
The maximum shear stress at point B is...
A cross-section is subjected to a maximum shear of V=220 kN (see figure): 1. Determine the...
A cross-section is subjected to a maximum shear of V=220 kN (see figure): 1. Determine the centroid of the cross-section. 2. Calculate the moment of inertia (1) of the cross-section. 3. Determine the shear stress at point A in the cross-section. -250 H10 06 -100 10 A. 300 -100 -10 08 10 125 10 All dimensions are in millimeters
A cross-section is subjected to a maximum shear of V=160 kN (see figure): 1. Determine the...
A cross-section is subjected to a maximum shear of V=160 kN (see figure): 1. Determine the centroid of the cross-section. 2. Calculate the moment of inertia (1) of the cross-section. 3. Determine the shear stress at point A in the cross-section. 715 -250 100 -145 AL -10 -300 145 10 125 -10 200 All dimensions are in millimeters
A cross-section is subjected to a maximum shear of V=160 kN (see figure): 1. Determine the...
A cross-section is subjected to a maximum shear of V=160 kN (see figure): 1. Determine the centroid of the cross-section. 2. Calculate the moment of inertia (l) of the cross-section. 3. Determine the shear stress at point A in the cross-section. -250 715 -100 -145 AL -10 -300 -145 10 125 10 -200 All dimensions are in millimeters
9.1 Determine the design capacity and tie spacing of the column section shown below which is...
9.1 Determine the design capacity and tie spacing of the column section shown below which is subjected to a concentric load. Assume fo = 4 ksi, fy = 60 ksi, Indoor column, 1" MAS. — 22"—- 1.3" (typical) 22" b 8# 11
Problem 1. A) Determine the maximum normal and shear stresses at the hollow circular cross-section of...
Problem 1. A) Determine the maximum normal and shear stresses at the hollow circular cross-section of the shaft. Also, calculate the maximum deflection in the shaft. A is 40 in from point c. Show work. Steel: E=29,000 ksi and G=11,000 ksi. The shear stress in the shift is caused by torsion and transfer shear. 40 in 15 16 6 in. 8 in. Ro 50 lb 15 lb Ri B) Formulate the design optimization problem using the 5 steps given in...
A cross-section is subjected to a maximum shear of V=220 kN (see figure): 1. Determine the...
A cross-section is subjected to a maximum shear of V=220 kN (see figure): 1. Determine the centroid of the cross-section. 2. Calculate the moment of inertia (1) of the cross-section. 3. Determine the shear stress at point A in the cross-section. -250 OILA 90 100 D 10 300 -100 10 80 10 125 10 All dimensions are in millimeters MacBook Air ** F2 SO DOO DOO FS # $ 07
11 Section 4, Problem 11. A beam is loaded by a shear force V. The beam...
11 Section 4, Problem 11. A beam is loaded by a shear force V. The beam cross-section is shown below. The moment of inertia of the cross-section is 3471 in 4. The centroid of the cross-section is 6.25 inches from the base. Determine: a) the shear stress at point b) the shear stress at point B. c) the maximum shear stress in the cross-section. X 02:46:51 V = 55 (kips) The maximum shear stress at point A is The maximum...
Problem 2 Determine the nominal moment capacity for the reinforced concrete beam shown. The beam cross section has a width 10 inch and a depth 20 inch. The beam is reinforced with a tension steel reinforcement of 3#8 with an area of steel # 2.37 inch Assume grade 60 steel with a yield strss, Fy 60 ksi d 20 3#8 2.37/ 2 As B-10"
Problem 2 Determine the nominal moment capacity for the reinforced concrete beam shown. The beam cross...
Problem 2. Plot (Excel plot) the nominal capacity interaction diagram of the column shown below by calculation (hand calculation) of the following points on the diagram and connecting them with straight lines. A) Pure compression, Mn=0 B) No tension in tension steel, fs=0 C) Balance point, Ec= ecu and €5=ey D) Tension controlled section limit, ec= ecu and es= 0.005 E) Pure bending, Pn=0 F) Pure tension, Mn=0 b f'c = 4 ksi fy = 60 ksi b = h...
A beam is loaded by a shear force V. The beam cross-section is
shown below. The moment of inertia of the cross-section is 347.1
in4. The centroid of the cross-section is 6.25 inches
from the base. Determine:
a) the shear stress at point A.
b) the shear stress at point B.
c) the maximum shear stress in the cross-section.
V = 50 (kips)
The maximum shear stress at point A is _____(ksi)
The maximum shear stress at point B is...
A cross-section is subjected to a maximum shear of V=220 kN (see figure): 1. Determine the centroid of the cross-section. 2. Calculate the moment of inertia (1) of the cross-section. 3. Determine the shear stress at point A in the cross-section. -250 H10 06 -100 10 A. 300 -100 -10 08 10 125 10 All dimensions are in millimeters
A cross-section is subjected to a maximum shear of V=160 kN (see figure): 1. Determine the centroid of the cross-section. 2. Calculate the moment of inertia (1) of the cross-section. 3. Determine the shear stress at point A in the cross-section. 715 -250 100 -145 AL -10 -300 145 10 125 -10 200 All dimensions are in millimeters
A cross-section is subjected to a maximum shear of V=160 kN (see figure): 1. Determine the centroid of the cross-section. 2. Calculate the moment of inertia (l) of the cross-section. 3. Determine the shear stress at point A in the cross-section. -250 715 -100 -145 AL -10 -300 -145 10 125 10 -200 All dimensions are in millimeters
9.1 Determine the design capacity and tie spacing of the column section shown below which is subjected to a concentric load. Assume fo = 4 ksi, fy = 60 ksi, Indoor column, 1" MAS. — 22"—- 1.3" (typical) 22" b 8# 11
Problem 1. A) Determine the maximum normal and shear stresses at the hollow circular cross-section of the shaft. Also, calculate the maximum deflection in the shaft. A is 40 in from point c. Show work. Steel: E=29,000 ksi and G=11,000 ksi. The shear stress in the shift is caused by torsion and transfer shear. 40 in 15 16 6 in. 8 in. Ro 50 lb 15 lb Ri B) Formulate the design optimization problem using the 5 steps given in...
A cross-section is subjected to a maximum shear of V=220 kN (see figure): 1. Determine the centroid of the cross-section. 2. Calculate the moment of inertia (1) of the cross-section. 3. Determine the shear stress at point A in the cross-section. -250 OILA 90 100 D 10 300 -100 10 80 10 125 10 All dimensions are in millimeters MacBook Air ** F2 SO DOO DOO FS # $ 07
11 Section 4, Problem 11. A beam is loaded by a shear force V. The beam cross-section is shown below. The moment of inertia of the cross-section is 3471 in 4. The centroid of the cross-section is 6.25 inches from the base. Determine: a) the shear stress at point b) the shear stress at point B. c) the maximum shear stress in the cross-section. X 02:46:51 V = 55 (kips) The maximum shear stress at point A is The maximum...
