A pair of enclosed spur gears have z1 =20, z2 =80, m = 3 mm and...
A pair of enclosed spur gears have z1 =20, z2 =80, m =
3 mm and face width factor of ?d =1.0. The pinion rotates at n1
=970 rpm. The allowable contact stress of
the pinion and gear are [?H1] = 700 MPa, [?H2] = 500 MPa,
respectively. The load
factor is K =1.5, zone factor is ZH =2.5, elastic coefficient is ZE
=189.8 MPa1/2.
Determine the power that can be transmitted by tooth surface
contact strength
analysis.

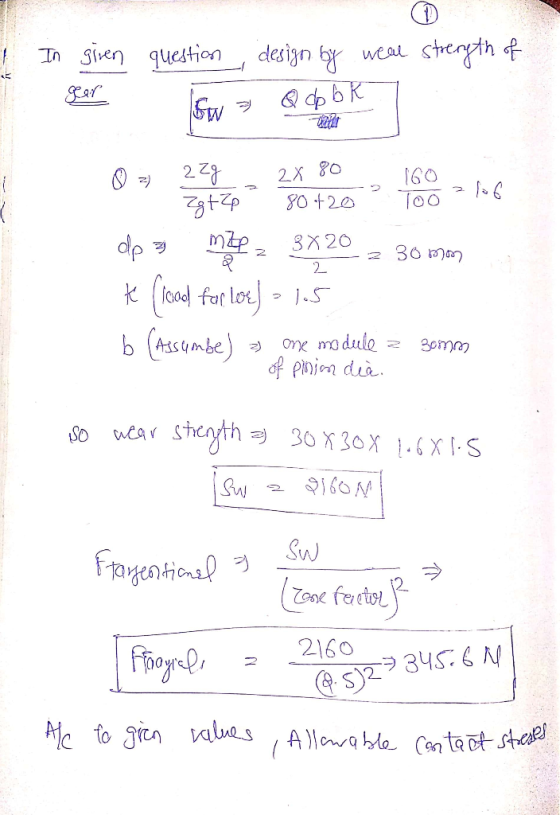

Homework Answers
in that question we design
according to gear failure because it have less strenght.
