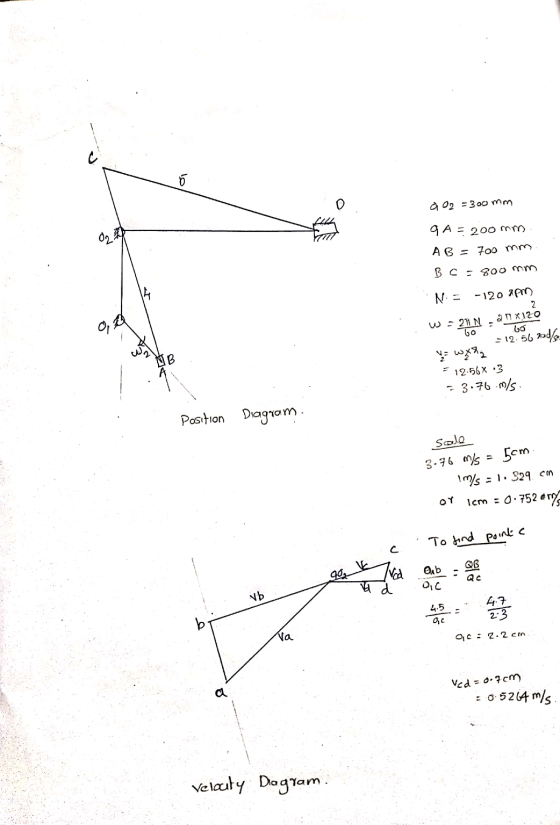

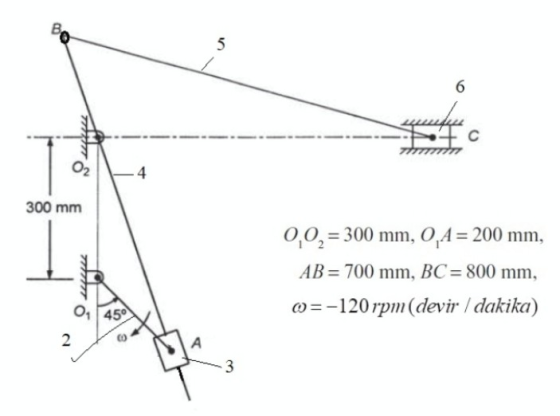

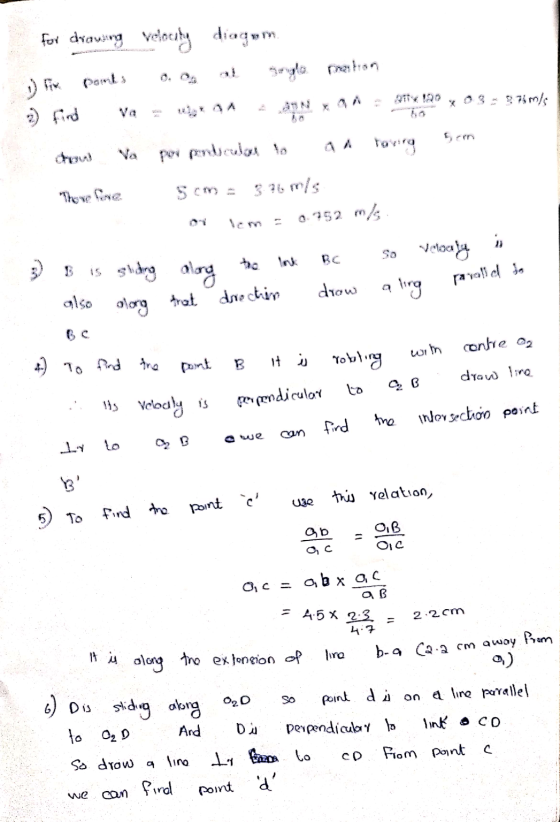

In the mechanism in figure 2 numbered member rotating with 120 rpm

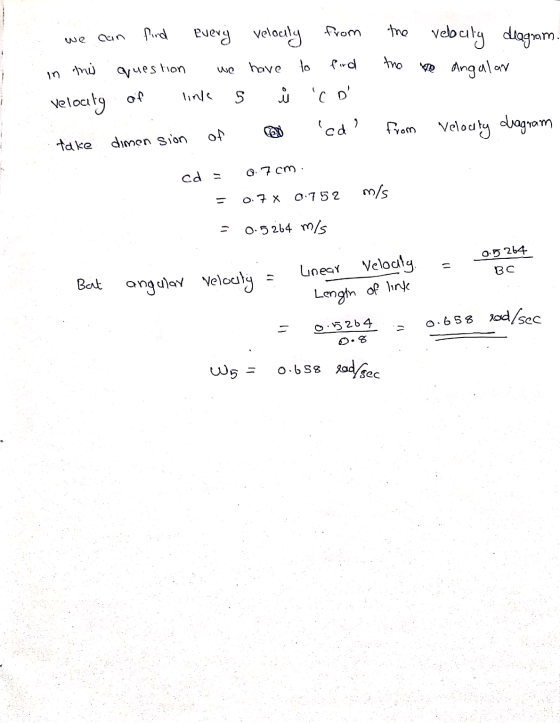

velocity in clock wise direction. calculate the angular velocity of
5 numbered member for the given location.
