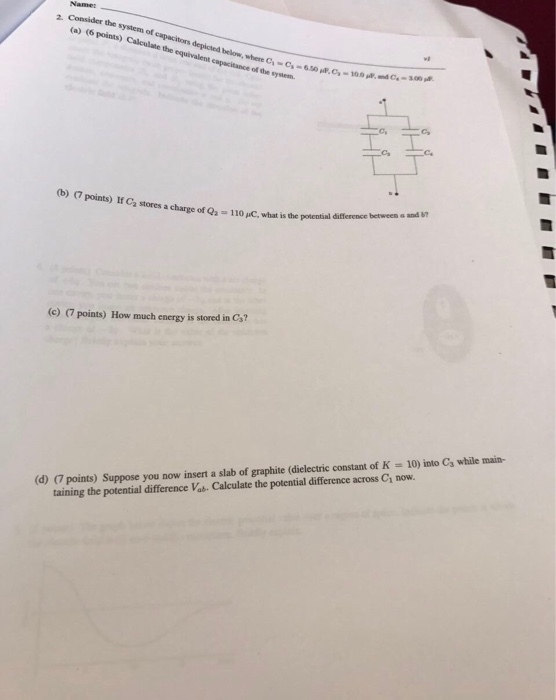

Consider the system of capacitors depicted below, where C_1 = C_ (a) Calculate the equivalent capacitance...

Question

Question

science physics

Answer 1

Answer #1

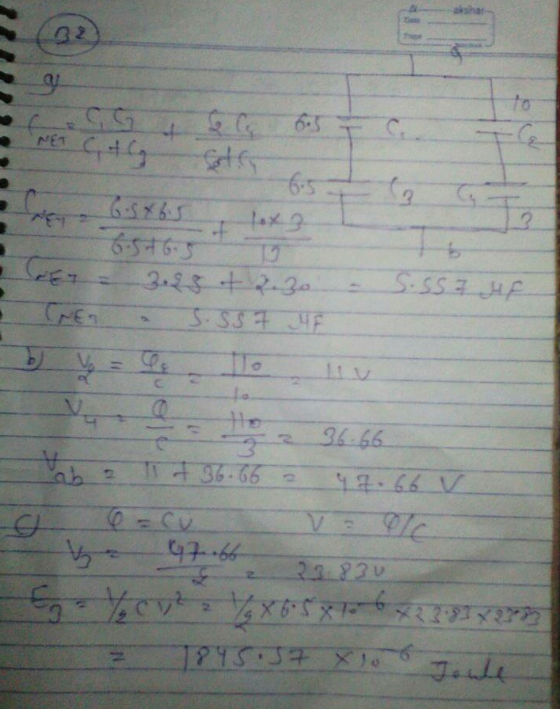

aksha a2 矼ー-で, 6.5 2. す! でワー 6 S 2-66 5

Answer 2

Similar Homework Help Questions

In the figure below, C_1 = 4.00 mu F, C_2 = 8.00 mu F, and V_ab...

In the figure below, C_1 = 4.00 mu F, C_2 = 8.00 mu F, and V_ab = +56.0 V. Calculate the charge on each capacitor. Q_1 = C Q_2 = C Calculate the potential difference across each capacitor. V_c1 = V V_c2 = V
Consider the following figure. C2 Find the equivalent capacitance between points a and b for the...

Consider the following figure. C2 Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure if C_1 = 6.00 mu F, C_2 = 10.0 mu F, and C_3 = 3.00 mu F. 420 Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully. mu F If the potential between points a and b is 60.0 V, what charge is stored on...
In the figure below, a 18.0 V battery is connected across capacitors of capacitances with the...

In the figure below, a 18.0 V battery is connected across capacitors of capacitances with the following values. C_1 = C_6 = 2.90 mu F C_3 = C_5 = 3.70 mu F C_2 = C_4 = 1.85 mu F (a) What is the equivalent capacitance C_eq? mu F (b) What is the charge stored by C_eq? C (c) What is V_1 of capacitor 1? V (d) What is q_1 of capacitor 1? C (e What is V_2 of capacitor 2?...

In Fig. 25-31, a 20.0 V battery is connected across capacitors of capacitances C_1 = C_6...

In Fig. 25-31, a 20.0 V battery is connected across capacitors of capacitances C_1 = C_6 = 3.00 mu F and C_3 = C_5 = 2.00C_2 = 2.00 C_4 = 4.00 mu F. What are (a) the equivalent capacitance C_eq of the capacitors and (b) the charge stored by C_eq the What are (c) V_1 and (d) q_1 of capacitor 1, (e) V_2 and (f) q_2 of capacitor 2, and (g) V_3 and (h) q_3 of capacitor 3?
Four capacitors are connected as shown below. Find the equivalent capacitance. Find the charge on each...

Four capacitors are connected as shown below. Find the equivalent capacitance. Find the charge on each capacitor if V_ab = 15 volts Find the energy stored in the 3 mu F.
Consider the following. (Let C_1 = 31.00 mu F and C_2 = 25.00 mu F.) (a)...

Consider the following. (Let C_1 = 31.00 mu F and C_2 = 25.00 mu F.) (a) Find the equivalent capacitance of the capacitors in the figure. (c) Find the potential difference across each capacitor. on the right 31.00 mu F capacitor Your response differs from the correct answer by more than 10% on the left 31.00 mu F capacitor Your response differs from the correct answer by more than 10% on the 25.00 mu F capacitor Your response differs from...

For the system of four capacitors shown in the figure, find (i) the equivalent capacitance of...

For the system of four capacitors shown in the figure, find (i) the equivalent capacitance of the system, (ii) the charge on each capacitor, and (iii) the potential difference across each capacitor.
What is the equivalent capacitance of the three capacitors in the figure below? What is the...

What is the equivalent capacitance of the three capacitors in the figure below? What is the equivalent capacitance of the three capacitors in the figure below? What are the charge on and the potential difference across each capacitor the figure below?
Consider the following. (Let C_1 = 27.20 muF and C_2 = 21.20 muF.) (a) Find the...

Consider the following. (Let C_1 = 27.20 muF and C_2 = 21.20 muF.) (a) Find the equivalent capacitance of the capacitors in the figure. muF (b) Find the charge on each capacitor. on the right 27.20 muF capacitor muC on the left 27.20 muF capacitor muC on the 21.20 muF capacitor muC on the 6.00 muF capacitor muC (c) Find the potential difference across each capacitor. on the right 27.20 muF capacitor V on the left 27.20 muF capacitor V...
