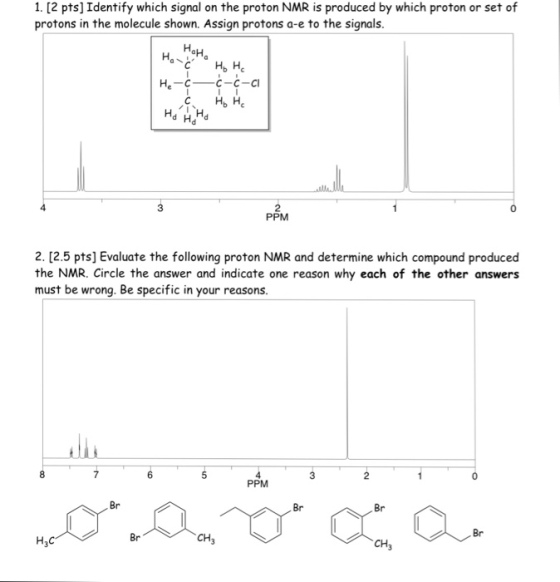

![1. [2 pts] Identify which signal on the proton NMR is produced by which proton or set of protons in the molecule shown. Assign protons a-e to the signals. 3 2 PPM 0 2. [2.5 pts] Evaluate the following proton NMR and determine which compound produced the NMR. Circle the answer and indicate one reason why each of the other answers must be wrong. Be specific in your reasons PPM Br Br Br Br Br CH3](http://img.homeworklib.com/questions/464a7d80-3fe6-11eb-9762-c519cfb6dc7f.png?x-oss-process=image/resize,w_560)
Homework Answers

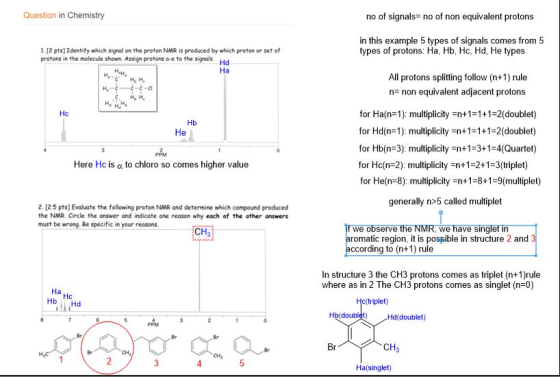

![Question in Chemistry no of signals no of non equivalent protons in this example 5 types of signals comes from 5 types of protons: Ha, Hb, Hc Hd, He types 1. [2 pts] Identify which signal on the proton NMR is produced by which proton or set of protons in the molecule shown Assign protons a-e to the signols. Hd Ha All protons spliting follow (nt1) rule n non equivalent adjacent protons Hc for Ha(n-1): multiplicity n+1-1+1-2(doublet) for Hd(n-1): multiplicityn+1-1+1-2(doublet) for Hb(n-3) multiplicity n+1-3+1-4(Quartet) for Hc(n-2): multiplicityn+1-2+1-3(triplet) for He(n-8): multiplicity +1-8+1-9(multiplet) generally n>5 called multiplet Но Here Hc is α to chloro so comes higher value 2. 12.5 pts] Evaluate the following proton NMR and determine which compound produced the NMR. Circle the answer and indicate one reason why each of the other answers must be wrong, Be specific in your reasons. f we observe the NMR, we have singlet in romatic region, it is possible in structure 2 and ccording to (n+1) rule CH3 In structure 3 the CH3 protons comes as triplet (n+1)rule where as in 2 The CH3 protons comes as singlet (n-0) Hc Ho.. Hd c(triplet) Но Hd(doublet) Br CH Ha singlet)](http://img.homeworklib.com/questions/46fab040-3fe6-11eb-8643-cb25d4931356.png?x-oss-process=image/resize,w_560)
Add Answer to:
1. [2 pts] Identify which signal on the proton NMR is produced by which proton or...
1. Signal Assignment. Below are a set of ranges where a specific H' NMR signal might...
1. Signal Assignment. Below are a set of ranges where a specific H' NMR signal might be found. 0.5-2.0ppm 2.0-3.0ppm 3.0-5.Oppm 0.5-6.Oppm 5.0-7.0ppm 7.0-8.Oppm 9.0-10.0ppm 10.0-12.0ppm Assign to the slots above where the following highlighted protons might be found. a) CH3-CH2- b) CH-CH2-CH2- c) HC-0 d) H-C(O)-R e) H-O-R ) H-O-C(O)-R g) H;C-Ar h ) H-C-C- j) CH3-CEC ...some groups appear in the same ppm range. [2pts each group correctly assigned) 2. Signal Splitting. Decide what splitting pattern (singlet, doublet,...
QUESTION 9 Why does a proton NMR spectrum of the NMR solvent CDCl3 show a signal...
QUESTION 9 Why does a proton NMR spectrum of the NMR solvent CDCl3 show a signal at 7.26 ppm even if the CDC13 molecule contains no hydrogen? NMR solvent CDC13 contains some unknown impurity, which shows signal at 7.26 ppm. NMR solvent CDC13 contains very small % of CHCl3 impurity, which shows signal at 7.26 ppm. NMR solvent CDC13 has one deuterium, which is an isotope of hydrogen. That shows signal at 7.26 ppm. NMR solvent CDC13 has one carbon,...
When a 300-MHz NMR spectrometer is used, one proton signal produced from a compound is 150...
When a 300-MHz NMR spectrometer is used, one proton signal produced from a compound is 150 Hz higher than another signal. In a 90-MHz instrument, what would be the frequency difference between the two signals?
Identify each compound in the following questions and make assignments in the 1H NMR a) First...
Identify each compound in the following questions and make
assignments in the 1H NMR
a) First spectra: Compound 1, 1H NMR given, and has a strong
absorbance in the IR at 1715 cm-1
b) Second spectra: Compound 2, a carboxylic acid of formula
C8H6O3Cl2 with 1H NMR given
c) Third spectra: Compound 3 with molecular formula of
C6H9ClO2, with 1H NMR given (the four signal from highest to lowest
chemical shift are quartet, quartet, double, and triplet)
d) Compound 4,...
1. How many signals do you expect to see in the 'H NMR of the following...
1. How many signals do you expect to see in the 'H NMR of the following compounds? Label each H and use the same label (eg. Ha) for any equivalent H's. CH, CH CH CH O CH, CH,CHCHCHCH3 CH2CH2CH OCHCH; CH3 CH3 CH 2. For each compound label the proton or set of protons that gives the signal at the highest chemical shift (largest ppm) a next highest band so on. H CHỊCH,CH, SOCH, CH,CH, CH CH3CHCHCH
The room temperature proton NMR spectrum of cyclohexane shows a single resonance at ca. +1.43 ppm....
The room temperature proton NMR spectrum of cyclohexane shows a single resonance at ca. +1.43 ppm. As the temperature of the sample is lowered in the NMR probe this sharp signal broadens until -66 °C, then the signal splits into two signals that sharpen up on lowering to -100 °C with each set of signals showing a separate spin-spin coupling pattern. Explain the reasons for the above observations. Also, designate which are the equatorial and axial hydrogen at low temperature.
Question 3 1 pts Indicate those of the following statements that are correct for the spectra...
Question 3 1 pts Indicate those of the following statements that are correct for the spectra below Note: The mass 67 peak in the mass spectrum is labelled incorrectly: the correct mass should be 65 Instead.) R Spectrum quid fim) 4000 3000 1600 1200 100 Mass Spectrum No significent UV absorption above 220 nm 405 B3 M+. C2H4C2 80 120 160 200 240 280 m/e 13C NMR Spectrum protan couped proton decoupied 200 160 120 40 0 (ppm) H NMR...
The molecular formulas IR and 1H NMR spectra of different organic compounds are shown below. the 1 H NMR all run that...
The molecular formulas IR and 1H NMR spectra of different
organic compounds are shown below. the 1 H NMR all run that 300 MHz
in CDCl3. identify the compound by interpreting both the spectrum.
All piece must be assigned for the appropriate functional groups
(IR) and protons (NMR) to earn full credit.
The
molecular formulas IR and 1H NMR spectra of different organic
compounds are shown below. the 1 H NMR all run that 300 MHz in
CDCl3. identify the...
1) Predict the number of signals expected in the proton spin decoupled 13C NMR spectrum of...
1) Predict the number of signals expected in the proton spin decoupled 13C NMR spectrum of the compound shown below 2) Which of the molecules below has the largest number of chemically distinct protons? a. Methyl propyl ether b, 2-butanone c. Diethyl ether 3) What would you expect the integration ratio to be for the protons, in order of chemical shift from TMS, in the molecule below? a. 4:3 b. 6:4 c. 3:3:2:2 d. 3:2 4) Select the functional group...
Question 8 4 pts What types of splitting patterns would you expect in the proton NMR...
Question 8 4 pts What types of splitting patterns would you expect in the proton NMR spectrum of the molecule shown below? Mark all that apply. es doublet singlet A triplet с quartet D sextet E B ОА OB Ос OD ОЕ Question 9 4 pts Which compound corresponds to the H NMR spectrum below? (Integral values are indicated above/beside signals.) 3 3 2 1 0 2 PPM FO 6 ho La А B с D E OB o D...
1. Signal Assignment. Below are a set of ranges where a specific H' NMR signal might be found. 0.5-2.0ppm 2.0-3.0ppm 3.0-5.Oppm 0.5-6.Oppm 5.0-7.0ppm 7.0-8.Oppm 9.0-10.0ppm 10.0-12.0ppm Assign to the slots above where the following highlighted protons might be found. a) CH3-CH2- b) CH-CH2-CH2- c) HC-0 d) H-C(O)-R e) H-O-R ) H-O-C(O)-R g) H;C-Ar h ) H-C-C- j) CH3-CEC ...some groups appear in the same ppm range. [2pts each group correctly assigned) 2. Signal Splitting. Decide what splitting pattern (singlet, doublet,...
QUESTION 9 Why does a proton NMR spectrum of the NMR solvent CDCl3 show a signal at 7.26 ppm even if the CDC13 molecule contains no hydrogen? NMR solvent CDC13 contains some unknown impurity, which shows signal at 7.26 ppm. NMR solvent CDC13 contains very small % of CHCl3 impurity, which shows signal at 7.26 ppm. NMR solvent CDC13 has one deuterium, which is an isotope of hydrogen. That shows signal at 7.26 ppm. NMR solvent CDC13 has one carbon,...
When a 300-MHz NMR spectrometer is used, one proton signal produced from a compound is 150 Hz higher than another signal. In a 90-MHz instrument, what would be the frequency difference between the two signals?
Identify each compound in the following questions and make
assignments in the 1H NMR
a) First spectra: Compound 1, 1H NMR given, and has a strong
absorbance in the IR at 1715 cm-1
b) Second spectra: Compound 2, a carboxylic acid of formula
C8H6O3Cl2 with 1H NMR given
c) Third spectra: Compound 3 with molecular formula of
C6H9ClO2, with 1H NMR given (the four signal from highest to lowest
chemical shift are quartet, quartet, double, and triplet)
d) Compound 4,...
1. How many signals do you expect to see in the 'H NMR of the following compounds? Label each H and use the same label (eg. Ha) for any equivalent H's. CH, CH CH CH O CH, CH,CHCHCHCH3 CH2CH2CH OCHCH; CH3 CH3 CH 2. For each compound label the proton or set of protons that gives the signal at the highest chemical shift (largest ppm) a next highest band so on. H CHỊCH,CH, SOCH, CH,CH, CH CH3CHCHCH
Question 3 1 pts Indicate those of the following statements that are correct for the spectra below Note: The mass 67 peak in the mass spectrum is labelled incorrectly: the correct mass should be 65 Instead.) R Spectrum quid fim) 4000 3000 1600 1200 100 Mass Spectrum No significent UV absorption above 220 nm 405 B3 M+. C2H4C2 80 120 160 200 240 280 m/e 13C NMR Spectrum protan couped proton decoupied 200 160 120 40 0 (ppm) H NMR...
The molecular formulas IR and 1H NMR spectra of different
organic compounds are shown below. the 1 H NMR all run that 300 MHz
in CDCl3. identify the compound by interpreting both the spectrum.
All piece must be assigned for the appropriate functional groups
(IR) and protons (NMR) to earn full credit.
The
molecular formulas IR and 1H NMR spectra of different organic
compounds are shown below. the 1 H NMR all run that 300 MHz in
CDCl3. identify the...
1) Predict the number of signals expected in the proton spin decoupled 13C NMR spectrum of the compound shown below 2) Which of the molecules below has the largest number of chemically distinct protons? a. Methyl propyl ether b, 2-butanone c. Diethyl ether 3) What would you expect the integration ratio to be for the protons, in order of chemical shift from TMS, in the molecule below? a. 4:3 b. 6:4 c. 3:3:2:2 d. 3:2 4) Select the functional group...
Question 8 4 pts What types of splitting patterns would you expect in the proton NMR spectrum of the molecule shown below? Mark all that apply. es doublet singlet A triplet с quartet D sextet E B ОА OB Ос OD ОЕ Question 9 4 pts Which compound corresponds to the H NMR spectrum below? (Integral values are indicated above/beside signals.) 3 3 2 1 0 2 PPM FO 6 ho La А B с D E OB o D...
