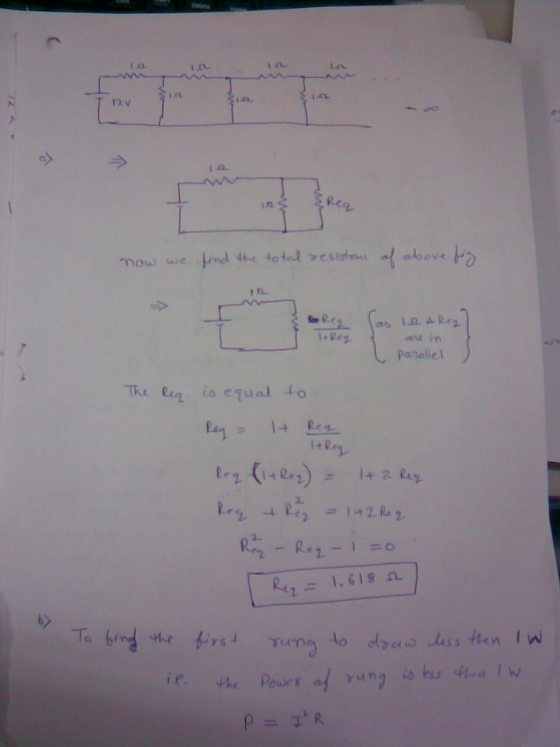

Since its infinite we can replace the second rung and on with
Req
so Req is in parallel with 1 ohm
R = Req/(Req + 1)
so Req = Req/(Req + 1) + 1
Req - 1 = Req/(Req + 1)
Req^2 - 1 = Req
Req^2 - Req - 1 = 0
use quadratic formula
Req= ( 1 + sqrt(5))/2 = 1.618 ohms

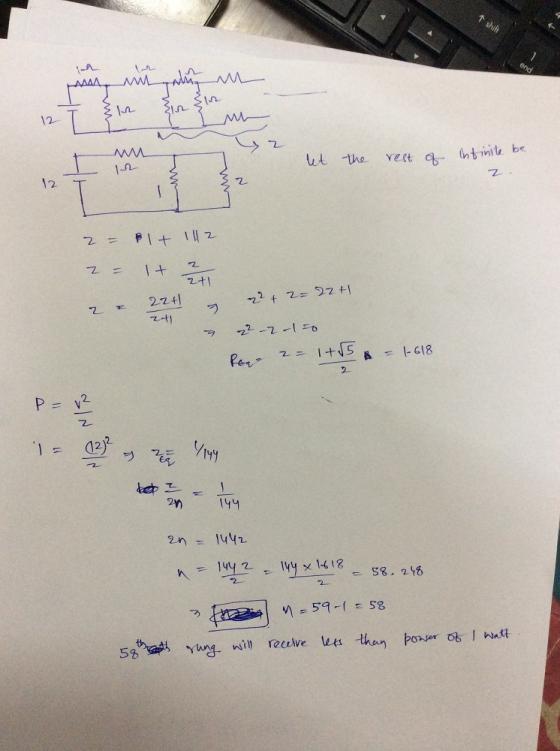

1+R*1/(R+1) = R
R^2-R-1 =0
Req = 1.618 ohm

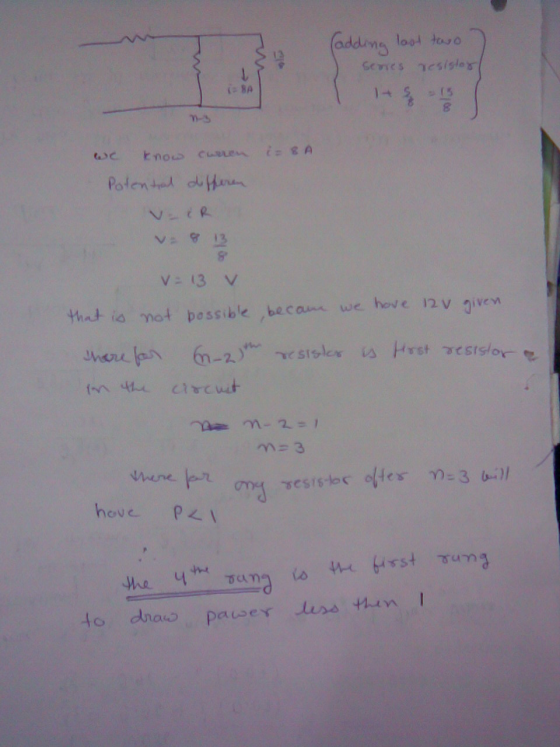

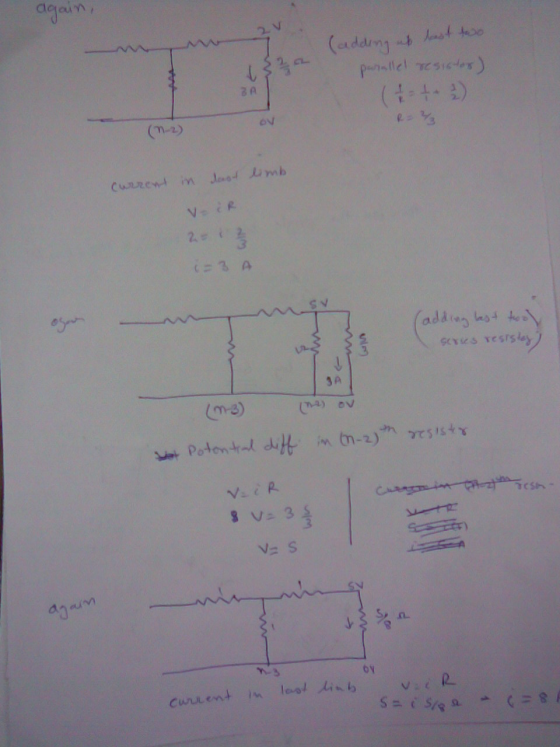

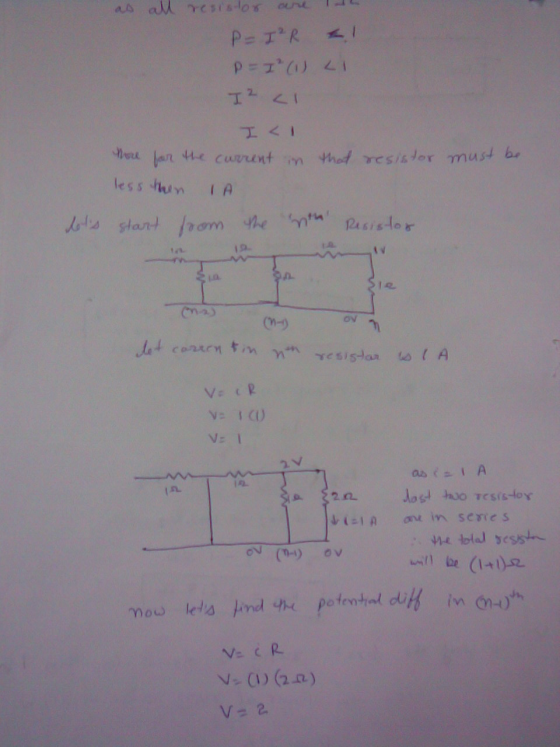

b) 12*(0.68/1.68)^n =V
W = V^2/R <1
so V<1
4th resistance
Add Answer to:
JKJ

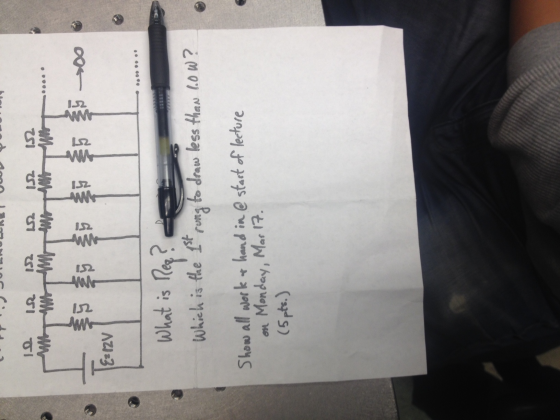

What is Reg? Which is the 1st rung to draw less than 1.0 w? Show...
