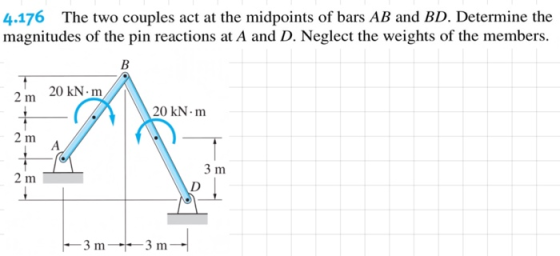

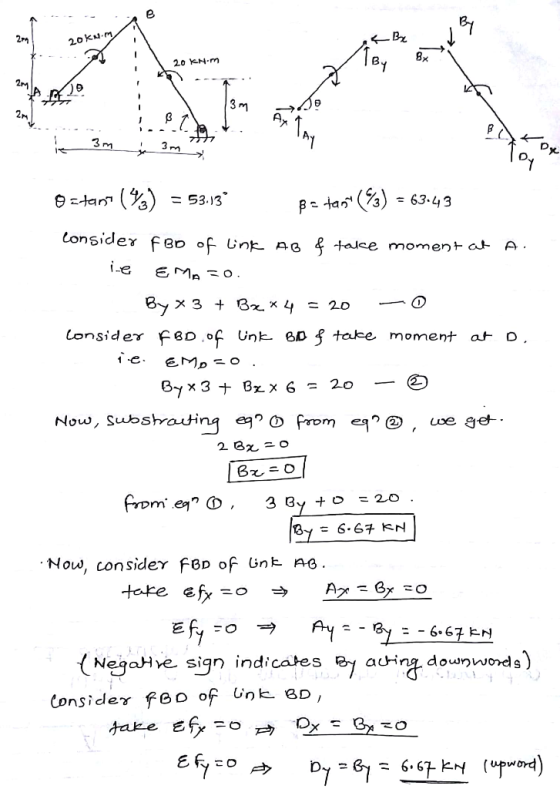

4.176 The two couples act at the midpoints of bars AB and BD. Determine the magnitudes...
Problem 1. A pin supports bar AB at A. Another pin supports bar BC at C....
Problem 1. A pin supports bar AB at A. Another pin supports bar BC at C. A third pin joins the two bars at B. Force F acts on pin B. Determine the force in each bar. Problem 2. Points A, B, and C are situated in the xy plane. Point D lies directly beneath O. Cable segments AD, BD, and CD knot together at D from which the 2 kip weight hangs. Determine the magnitudes of the tensile force...
The two homogeneous bars AB and BC are connected with a pin at B and placed...
The two homogeneous bars AB and BC are connected with
a pin at B and placed between rough vertical walls. If the
coefficient of static friction between each bar and the wall is
0.4, determine the largest and for which the assembly will remain
at rest.
Tut Probleme Week 11 7.4 The two homogencous bars AB and BC are connected with a pin an placed between rough vertical walls. If the coefficient of static friction between each bar and the...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to two links AC and BD. The assembly is released from rest in the position shown and neglecting the masses of the links, determine the maximum shear force and bending moment of the bars AB and BE. (Round the final answers to two decimal places.) А 30° E 0.5 m 60° С 0.5 m -BO 30° OD For bar AB, The maximum shear force is...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to two links AC and BD. The assembly is released from rest in the position shown and neglecting the masses of the links, determine the maximum shear force and bending moment of the bars AB and BE. (Round the final answers to two decimal places.) А 30° E 0.5 m 60° С 0.5 m -BO 30° OD For bar AB, The maximum shear force is...
Q1. Two rigid members (BCDE and EKN) are connected by a pin at E. The structure is supported by a...
Q1. Two rigid members (BCDE and EKN) are connected by a pin at E. The structure is supported by a pin at B and two rollers at D and N. An inclined distributed load is acting between E and K with the horizontal (12 kN/m) and vertical (16 kN/m) components. Neglect own weights and thicknesses of the members. f w 26.667 kN/m, 1.5m Draw necessary free body diagrams and determine the reaction forces at roller supports (D and N) and...
shown in Figure 2. Two circular disks A and B are welded to the ends of both bars. The disks lie in planes disks A a...
shown in Figure 2. Two circular disks A and B are welded to the ends of both bars. The disks lie in planes disks A and B subjecting the bars to torsion. If the allowable maximum shear stress is 35 MPa and the allowable rate of twist is 3°/m for both bars, determine the smallest outer diameter (D, and Di) of both bars. The shear modulus of elasticity is 39 GPa to the axes of the bars. Forces 15 kN...
4.26? ROBLEMS 4.26 The homogeneous bar AB weighs 25 lb. Determine the magnitudes of the forces...
4.26?
ROBLEMS 4.26 The homogeneous bar AB weighs 25 lb. Determine the magnitudes of the forces acting on the bar at A and B. Neglect friction. 160 lb/ft .4 12 ft Figure P4.26 Figure P4.27 Figure P4.28 4.27 Determine the smallest horizontal force P that would push the homogeneous cylinder of weight Wover the curb. Neglect friction. 4.28 The homogeneous beam AB weighing 800 lb carries the distributed load shown. Find the support reactions at A and B 4.29 The...
Determine the forces in each memebers, AB, AC=AD, BC=BD, and BE 2014 Part A Determine the...
Determine the forces in each memebers, AB, AC=AD, BC=BD, and
BE
2014 Part A Determine the force in member AB. and state the member is intension or compression. Take F-10 kN. Hint. The support reaction at member BBT Figure 1) acts on Express your answer using three significant figures and include the appropriate units. Assume pove negative scalars for members in compression r s for members in ein and D' HA Value Units Submit Part B Determine the forces in...
Two uniform light bars BD and DC are pinned together at D, where a cable is also attached as shown in the figure below
Two uniform light bars BD and DC are pinned together at D, where a cable is also attached as shown in the figure below. The bars are connected to the reference frame at B and C by smooth ball joints. The system supports the 300 lb force pulling at D in the negative x direction. Find the force in the cable, and the reactions at B and C. The bars are in the yz plane.
5) Two rigid members (AE and ABCD) are connected by a pin at A. CK is another rigid bar supported...
5) Two rigid members (AE and ABCD) are connected by a pin at A. CK is another rigid bar supported by a fixed-end at K. The contact at C is frictionless and D is and the tension on the cable AH is 52 kN, a roller. If the system is in equilibrium a) draw free body diagrams of all rigid members (AE, ABCD and CK), b) determine P (kN) w (kN/m), all reaction forces (or force components) at A, C,...
Problem 1. A pin supports bar AB at A. Another pin supports bar BC at C. A third pin joins the two bars at B. Force F acts on pin B. Determine the force in each bar. Problem 2. Points A, B, and C are situated in the xy plane. Point D lies directly beneath O. Cable segments AD, BD, and CD knot together at D from which the 2 kip weight hangs. Determine the magnitudes of the tensile force...
The two homogeneous bars AB and BC are connected with
a pin at B and placed between rough vertical walls. If the
coefficient of static friction between each bar and the wall is
0.4, determine the largest and for which the assembly will remain
at rest.
Tut Probleme Week 11 7.4 The two homogencous bars AB and BC are connected with a pin an placed between rough vertical walls. If the coefficient of static friction between each bar and the...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to two links AC and BD. The assembly is released from rest in the position shown and neglecting the masses of the links, determine the maximum shear force and bending moment of the bars AB and BE. (Round the final answers to two decimal places.) А 30° E 0.5 m 60° С 0.5 m -BO 30° OD For bar AB, The maximum shear force is...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to two links AC and BD. The assembly is released from rest in the position shown and neglecting the masses of the links, determine the maximum shear force and bending moment of the bars AB and BE. (Round the final answers to two decimal places.) А 30° E 0.5 m 60° С 0.5 m -BO 30° OD For bar AB, The maximum shear force is...
Q1. Two rigid members (BCDE and EKN) are connected by a pin at E. The structure is supported by a pin at B and two rollers at D and N. An inclined distributed load is acting between E and K with the horizontal (12 kN/m) and vertical (16 kN/m) components. Neglect own weights and thicknesses of the members. f w 26.667 kN/m, 1.5m Draw necessary free body diagrams and determine the reaction forces at roller supports (D and N) and...
shown in Figure 2. Two circular disks A and B are welded to the ends of both bars. The disks lie in planes disks A and B subjecting the bars to torsion. If the allowable maximum shear stress is 35 MPa and the allowable rate of twist is 3°/m for both bars, determine the smallest outer diameter (D, and Di) of both bars. The shear modulus of elasticity is 39 GPa to the axes of the bars. Forces 15 kN...
4.26?
ROBLEMS 4.26 The homogeneous bar AB weighs 25 lb. Determine the magnitudes of the forces acting on the bar at A and B. Neglect friction. 160 lb/ft .4 12 ft Figure P4.26 Figure P4.27 Figure P4.28 4.27 Determine the smallest horizontal force P that would push the homogeneous cylinder of weight Wover the curb. Neglect friction. 4.28 The homogeneous beam AB weighing 800 lb carries the distributed load shown. Find the support reactions at A and B 4.29 The...
Determine the forces in each memebers, AB, AC=AD, BC=BD, and
BE
2014 Part A Determine the force in member AB. and state the member is intension or compression. Take F-10 kN. Hint. The support reaction at member BBT Figure 1) acts on Express your answer using three significant figures and include the appropriate units. Assume pove negative scalars for members in compression r s for members in ein and D' HA Value Units Submit Part B Determine the forces in...
5) Two rigid members (AE and ABCD) are connected by a pin at A. CK is another rigid bar supported by a fixed-end at K. The contact at C is frictionless and D is and the tension on the cable AH is 52 kN, a roller. If the system is in equilibrium a) draw free body diagrams of all rigid members (AE, ABCD and CK), b) determine P (kN) w (kN/m), all reaction forces (or force components) at A, C,...
