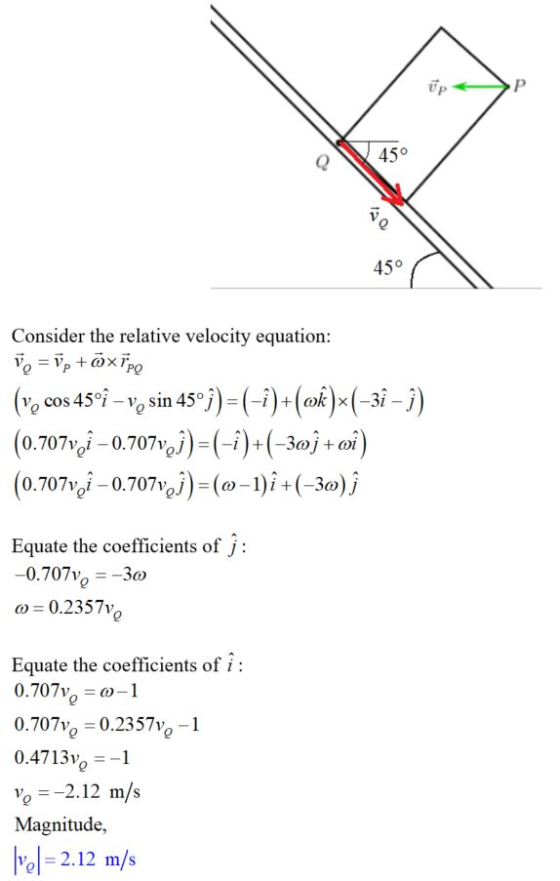

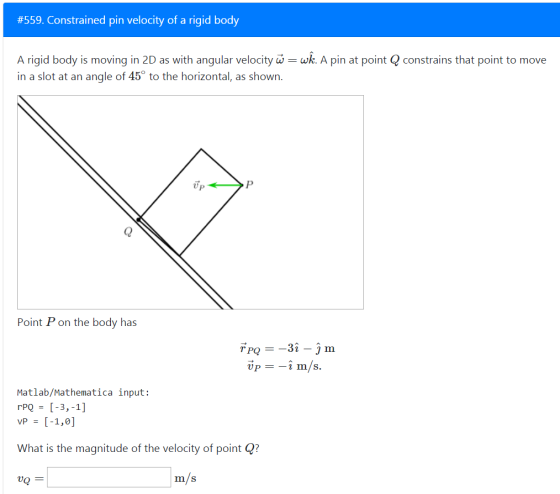

#559. Constrained pin velocity of a rigid body A rigid body is moving in 2D as...
Correct answer: a_p = <3000,-60>
Body B1 is a uniform rigid disk that rotates about the fixed center O. Body B2 is a uniform thin rigid rod that connects pins P and Q, and point Q is constrained to move in a slot. 3 At the current instant we have -824 m = 24k rad/s up = 481-241 m/s w2--3k rad/s vQ = 36: m/s 362 m/s UO ?2--3k rad/s2 Matlab/Mathematica input: rOP = [-1,2] omega! = [24] omega2 =...
Problem 4(20 points): At the given instant bar AB is rotating with an angular velocity of 4.0 rad/s and an angular acceleration of 3.5 rad/s, both counter-clockwise. Pin A is fixed and piston C is constrained to move ina horizontal slot at the same elevation as pin A. Determine the magnitude of the velocity of piston C and the magnitude of the acceleration of pin B at this instant. Problem 420 points) At the given insadoekvise. Pin A is fixed...
3.Rigid Body Systems. Acceleration: Consider the following diagram that shows three rigid-bodies simply connected by pins. Body AB is rotating about the pin at A and body C is confined to the horizontal slot. At the particular moment show body AB has a constant angular acceleration, au 0.8 rad/s', and an angular velocity. CAB - 4.0 rad/s. It is also known that the speed of pin B is, V8 - 12 m/s, the angular speed of body BC is OBC...
There is a pin at A
Sin 7.43 11.3lih For the rigid body ABC find find the velocity of point B the angular velocity of BC and AB also find the angular acceleration of AB and acceleration of at point B acceleration. Point VC travels in the () direction at 20 in/s.
Sin 7.43 11.3lih For the rigid body ABC find find the velocity of point B the angular velocity of BC and AB also find the angular acceleration of...
01. Answer both parts of this question. Part-1 2D Rigid Body Dynamics The machine shown in Figure Q1a comprises an arm AB attached to a rotating joint at point A, which can also be elevated by a hydraulic ram. The arm has mass 100 kg and moment of inertia IG = 10 kgm about mass centre G. A fixed x-y frame is shown with its origin at point A. At the instant shown, the arm is in the horizontal position...
4. (Rigid body rotation) A blob is made from four small objects of mass m attached together with massless bars of length l. The angle made by the bars is 45 degrees. A Identify the principle axes for this blob. B Using a coordinate system, the body frame, that corresponds to those axes, determine the intertia tensor for rotation about the center point. C Suppose that the blob is floating in space, with no torques applied, and is rotating with...
1.) For a rotating rigid body which of the following statements is not correct? a.) all points along a rotating rigid body move with constant speed b.) points along a rotating body move through the same angle in equal time intervals c.) point along a rotating body have velocities that continuously change directions d.) all of the above 2.) Which of the following quantities will impact how a rigid body's rotational speed can change? a.) the body's rotational inertia b.)the...
