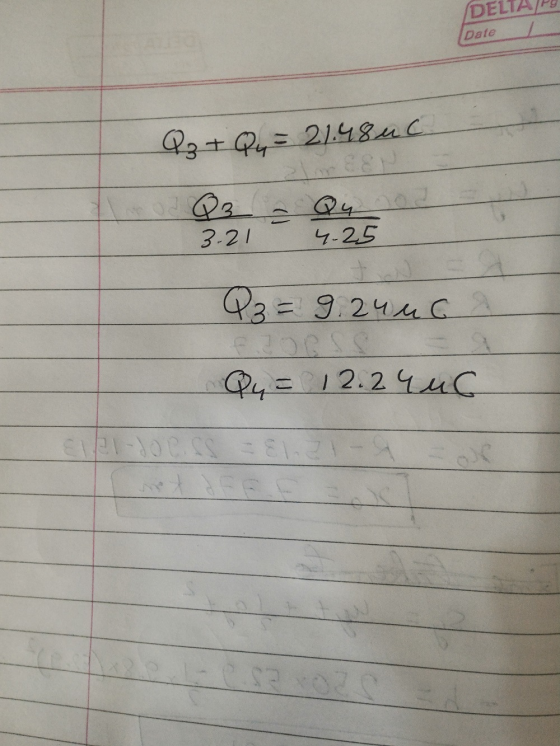

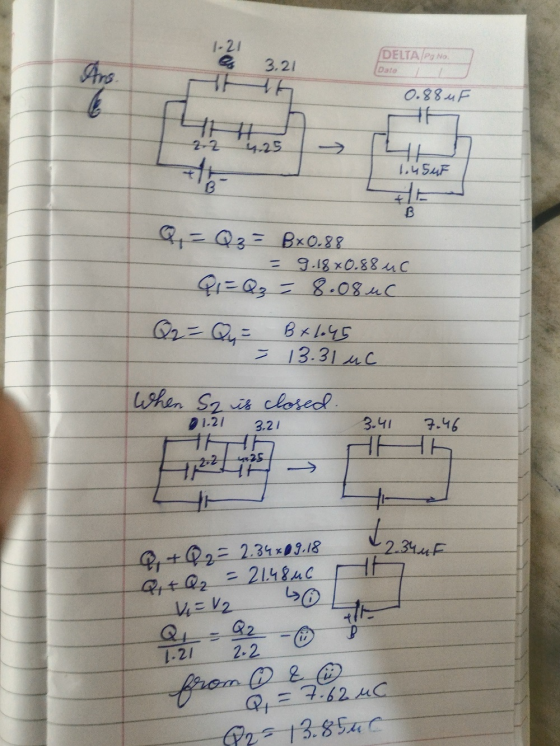

The figure shows a 9.18 V
battery and four uncharged capacitors of capacitances C1 = 1.21
?F,C2 = 2.20 ?F,C3 = 3.21 ?F, and C4 = 4.25 ?F. If only switch S1
is closed, what is the charge on (a) capacitor 1, (b) capacitor 2,
(c) capacitor 3, and (d) capacitor 4? If both switches are closed,
what is the charge on (e) capacitor 1, (f) capacitor 2, (g)
capacitor 3, and (h) capacitor 4?
Homework Answers
