Question

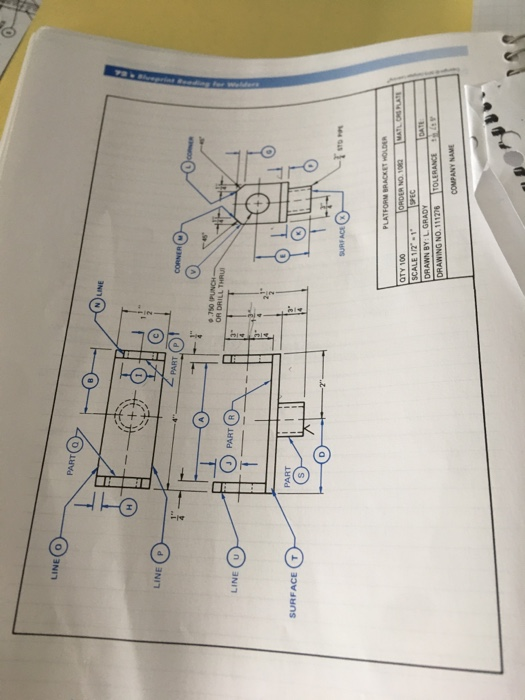

LINE LINE CORNER 75 PUNCH OR DRILL THRU LINE SURFACE SURFACE PLATFORM BRACKET WOLDER QTY 100 ORDER NO. 100 MATLOST SCALE 1/2"-1" SPEC DRAWN BY:L GRADY DRAWING NO. 111708 TOLERANCE COMPANY NAME

Answer 1

ANSWERS :

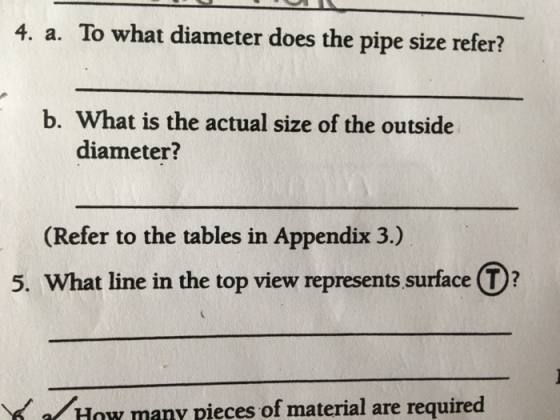

4. a. Diameter of Pipi Size = 3 / 4 " STD Pipe.

b. Actual Outside Diameter of Pipe = 1.050 " ( Schedule - 40 ).

5. Line - P in the Top View represents surface - T.

6. 100 Pieces of materials are required.
