Question 2 10 pts 2. An industrial robot must lift with its mechanical gripper a weight of 20 pounds. During its operation the part is accelerated in the horizontal direction with respect to the to the contact surfaces of the fingers, and tends to pull the weight out of the gripper. If the friction coefficient is 0.2, calculate the grasping force which guarantees a safe operation of the robot. Use a safety factor of 1.5 in your design B T - V 9 A A I ? 12pt * 1 1 1 x • Paragraph = T = - O words Question 3 10 pts Avector 3:21. Kis rotated by 60 degrees the reference frame. It then rotated by 30 degrees about the axes of

Answer 1

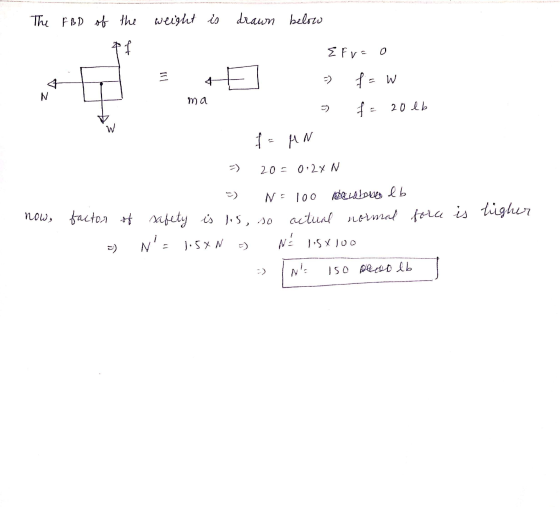

The FBD of the weight is drawn below ma Efre o - f = w fe 20 lb f - HN = 20 = 0.2% N 3) N=100 heridones lb safety is ls, so actual normal fora N'1.5XN - NE 1:5X100 - Inc iso peso lb now, is higher factor of =)
