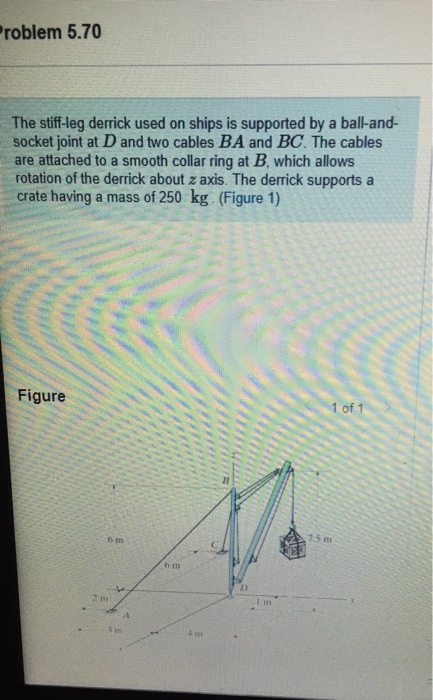

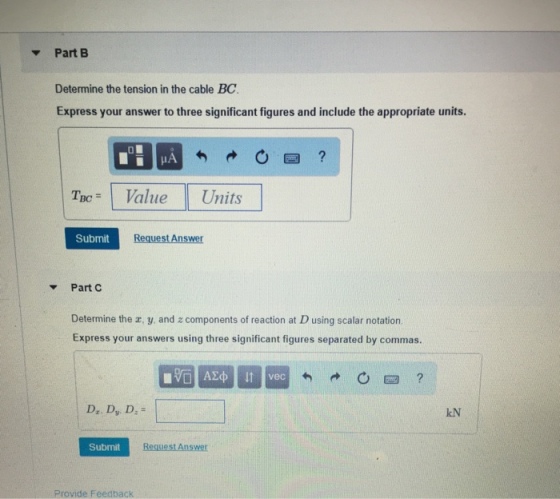

roblem 5.70 The stiff-leg derrick used on ships is supported by a ball-and- socket joint at...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

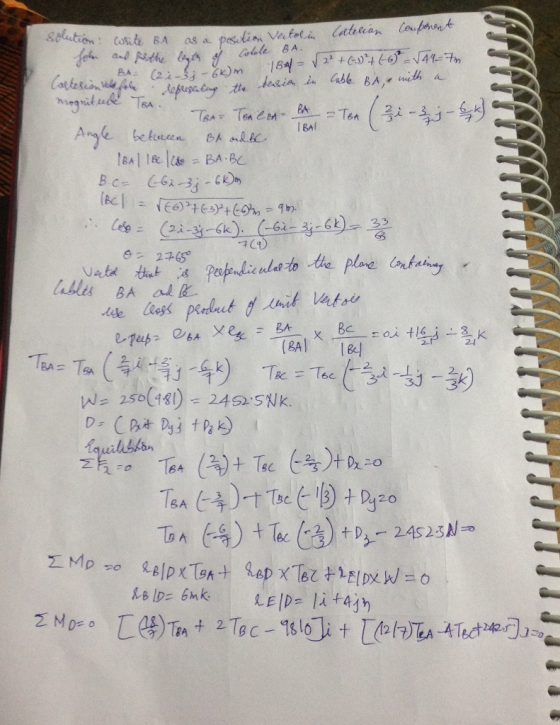

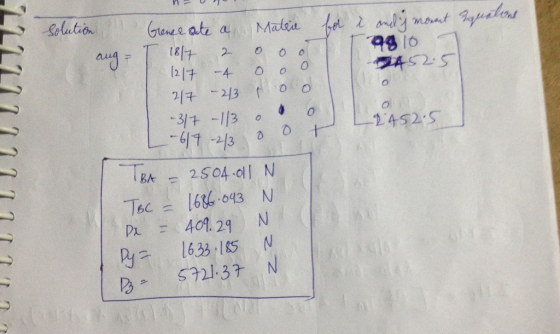

gplution : Costi BA asa. SA . l BAl IBA I 1&11 :. BA.BC. Cess Bel he e 18 1리チー4-000 18k ー 2504.01 N Pn = 407, 29 y633 1S 721.37

Answer 2

Similar Homework Help Questions

ehat does kop stand for ENGR 211 Statics Fall 2018 Chapter 5 roblem 5.70 The stl-leg...

ehat does kop stand for ENGR 211 Statics Fall 2018 Chapter 5 roblem 5.70 The stl-leg derrick used on ships is supported by a ball-and-socket joint at D and two cables B.A and BG The cables are atached to a smooth collar ing at B, which alows roition of the demikck about z asis. The deerick supports a crate having a mass of 170 kg (Figure 1 Part A Determine the tension in the cable BA Express your answer to...
The boom AC is supported at A by a ball-and-socket joint and by two cables BDC...

The boom AC is supported at A by a ball-and-socket joint and by two cables BDC and CE. Cable BDC is continuous and passes over a pulley at D. Calculate the x-component of the reaction at A if the crate has a weight of 71 lb. 2 3 ft 3 ft 4 ft 6 ft 4 ft 8 ft
A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint...

A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint at A and a smooth journal bearing at B, as shown below. The bearing at B is oriented in such way that it only provides force support reactions (i.e. no moment supports at B). A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint at A and a smooth journal bearing at B, as shown below. The bearing...

Fundamental Problem 5.11 The block is supported by the short link BD, the ball-and-socket joint A,...

Fundamental Problem 5.11 The block is supported by the short link BD, the ball-and-socket joint A, and cords CE, CF. Suppose that F1-4.9 kN and F2 8.8 kN.(Figure 1) Part A Determine the z component of reaction force at B using scalar notation. Express your answer to three significant figures and include the appropriate units. в 4.9 kN Submit revious Answers Request Answer Incorrect; Try Again; 4 attempts remaining Figure 1 of 1 Part B Determine the tension in the...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...

A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
