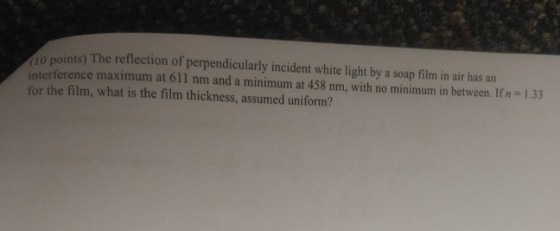

10 points) The reflection of perpendicularly incident white light by a soap film in air has...
White light reflected at perpendicular incidence from a soap film has, in the visible spectrum, an...

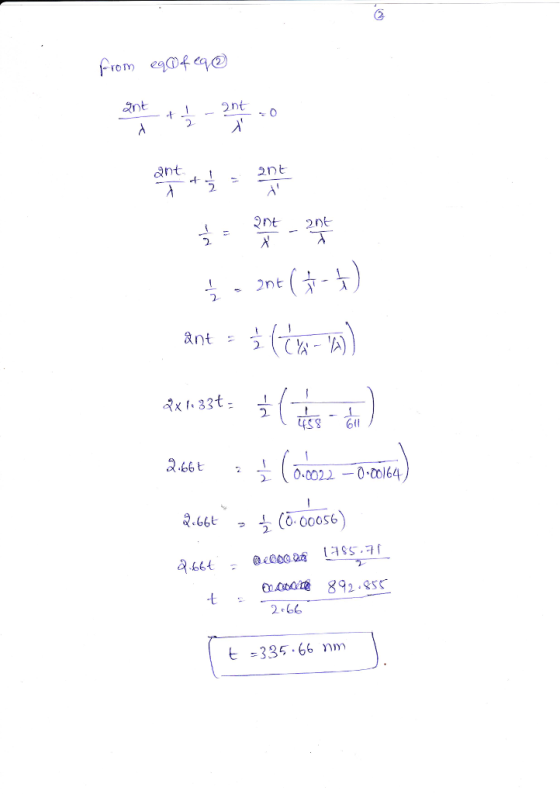

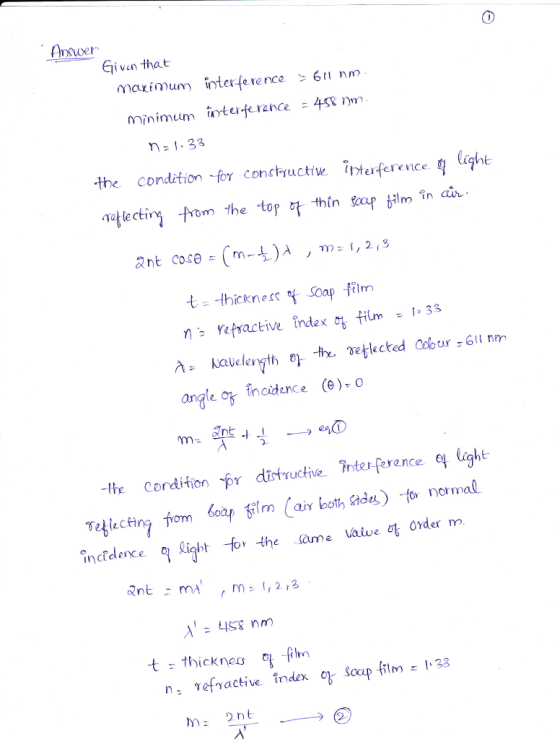

White light reflected at perpendicular incidence from a soap film has, in the visible spectrum, an interference maximum at 600 nm and a minimum at 450 nm with no minimum in-between. If n= 1.33 for the film, what is the film thickness, assumed uniform?
When monochromatic light shines perpendicularly on a soap film (n = 1.33) with air on each...
When monochromatic light shines perpendicularly on a soap film (n = 1.33) with air on each side, the second smallest nonzero film thickness for which destructive interference of reflected light is observed is 230 nm. What is the vacuum wavelength of the light in nm?
When monochromatic light shines perpendicularly on a soap film (n = 1.33) with air on each...
When monochromatic light shines perpendicularly on a soap film (n = 1.33) with air on each side, the second smallest nonzero film thickness for which destructive interference of reflected light is observed is 354 nm. What is the vacuum wavelength of the light in nm?
Light of wavelength 541 nm (in vacuum) is incident perpendicularly on a soap film (n =...
Light of wavelength 541 nm (in vacuum) is incident perpendicularly on a soap film (n = 1.36) suspended in air. What are the two smallest nonzero film thicknesses (in nm) for which reflected light undergoes constructive interference? Let (a) be the smaller of the two values.
IP A thin soap film (n = 1.33) suspended in air has a uniform thickness. When...
IP A thin soap film (n = 1.33) suspended in air has a uniform thickness. When white light strikes the film at normal incidence, violet light ( λV = 420 nm) is constructively reflected. A) If we would like green light ( λG = 560 nm) to be constructively reflected, instead, should the film's thickness be increased or decreased? Answer: A thickness of the film must be increased OR B thickness of the film must be decreased B) Find the...
light of wavelength in air is ? in air is incident on a thin film of...
light of wavelength in air is ? in air is incident on a thin
film of refractive index n=1.5 whose thickness varies with height.
the interference pattern observed from the left hand side of the
film is shown in the diagram. by what amount does the film
thickness change between points A and B?
1.33? 2? 2.66? 3? 4?
10.A narrow beam of white light is incident normally on the surface of a triangular silicate...
10.A narrow beam of white light is incident normally on the surface of a triangular silicate flint glass prism with one angle of 90. The index of refraction for violet light is 1.66 and for red light is 1.61. The angle in the prism is equal to 30° of glass. a. On the diagram below show an approximate sketch for the refracted light from the opposite face of the prism. Air B White light 780° Glass Calculate angular separation between...
#14 Thin Soap Films: Maximizing Reflection A soap bubble consists of a film with an index...
#14 Thin Soap Films: Maximizing Reflection A soap bubble consists of a film with an index of refraction of 1.50, with air on either side of the film. What is the minimum thickness of the film such that red light with a wavelength of 700 nm is reflected with the greatest intensity? O A. 117 nm B. 233 nm O C. 350 nm O D. 700 nm #15 Thin Soap Films: Maximizing Reflection A soap bubble consists of a film...
A soap film (n = 1.33) sits on top of a plastic plate (n = 1.37)....
A soap film (n = 1.33) sits on top of a plastic plate (n = 1.37). White light strikes the film nearly perpendicularly. The smallest nonzero film thickness for which the film appears bright due to constructive interference is 153 nm. What color does the film appear?
A soap film (n = 1.33) sits on top of a plastic plate (n = 1.37)....
A soap film (n = 1.33) sits on top of a plastic plate (n = 1.37). White light strikes the film nearly perpendicularly. The smallest nonzero film thickness for which the film appears bright due to constructive interference is 153 nm. What color does the film appear? Violet (420 nm) Yellow (580 nm) Red (650 nm) Blue (475 nm) Green (500 nm)
light of wavelength in air is ? in air is incident on a thin
film of refractive index n=1.5 whose thickness varies with height.
the interference pattern observed from the left hand side of the
film is shown in the diagram. by what amount does the film
thickness change between points A and B?
1.33? 2? 2.66? 3? 4?
10.A narrow beam of white light is incident normally on the surface of a triangular silicate flint glass prism with one angle of 90. The index of refraction for violet light is 1.66 and for red light is 1.61. The angle in the prism is equal to 30° of glass. a. On the diagram below show an approximate sketch for the refracted light from the opposite face of the prism. Air B White light 780° Glass Calculate angular separation between...
#14 Thin Soap Films: Maximizing Reflection A soap bubble consists of a film with an index of refraction of 1.50, with air on either side of the film. What is the minimum thickness of the film such that red light with a wavelength of 700 nm is reflected with the greatest intensity? O A. 117 nm B. 233 nm O C. 350 nm O D. 700 nm #15 Thin Soap Films: Maximizing Reflection A soap bubble consists of a film...
A soap film (n = 1.33) sits on top of a plastic plate (n = 1.37). White light strikes the film nearly perpendicularly. The smallest nonzero film thickness for which the film appears bright due to constructive interference is 153 nm. What color does the film appear? Violet (420 nm) Yellow (580 nm) Red (650 nm) Blue (475 nm) Green (500 nm)
