Question

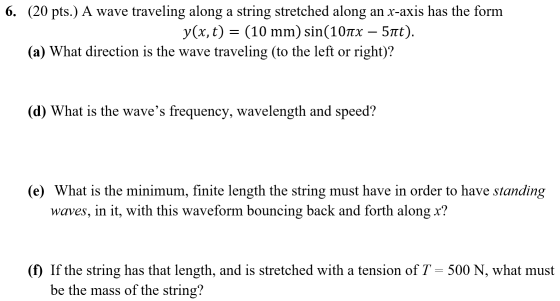

6. (20 pts.) A wave traveling along a string stretched along an x-axis has the form y(x, t) = (10 mm) sin(107x – 5nt). (a) Wh

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

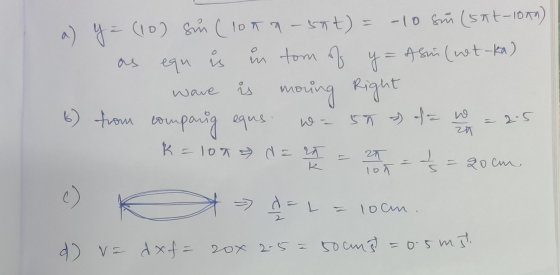

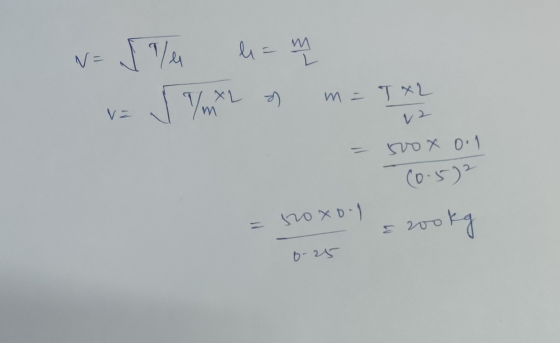

у= | /4 = х ) м - тх и - По хо: 1 Co-s-) ю хв) - я и b: Аa) y = (10) Sun (lona-sit) = -10 sur (Sat-10mm) as equ is in tom of y= Asin (wet-ka) wave is moving Right 6) from companig eq

0 0
Add a comment
Know the answer?
Add Answer to:
6. (20 pts.) A wave traveling along a string stretched along an x-axis has the form...
