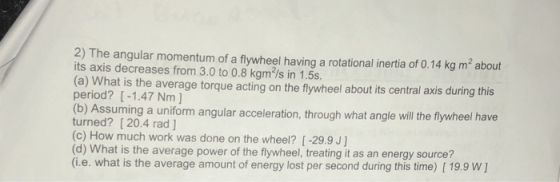

![2) The angular momentum of a flywheel having a rotational inertia of 0.14 kg m2 about its axis decreases from 3.0 to 0.8 kgm/s in 1.5s. (a) What is the average torque acting on the flywheel about its central axis during this period? [-1.47 Nm ] (b) Assuming a uniform angular acceleration, through what angle will the flywheel have turned? [ 20.4 rad ] (c) How much work was done on the wheel? [ -29.9 J] (d) What is the average power of the flywheel, treating it as an energy source? (i.e. what is the average amount of energy lost per second during this time) [ 19.9 W]](http://img.homeworklib.com/questions/4f95cef0-42ee-11eb-881f-6b28076ee8a1.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:

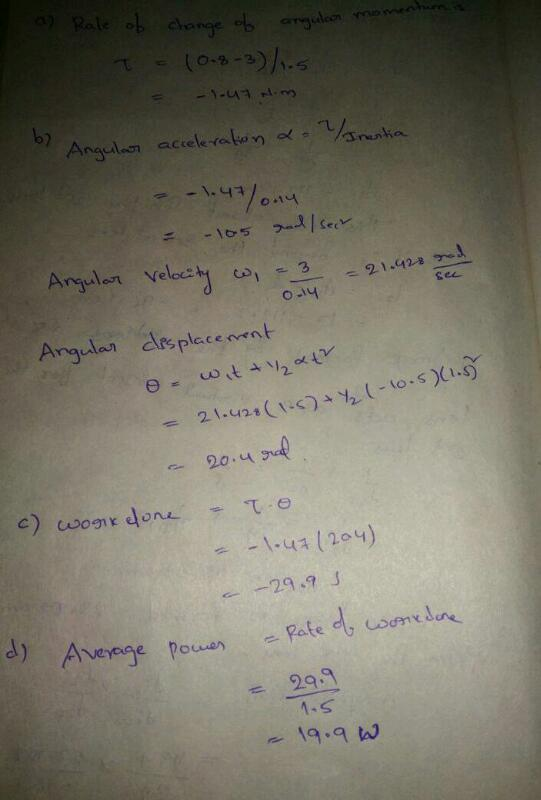

The answers are in the square brackets but I’m not too
sure how to solve for...
The angular momentum of a flywheel having a rotational inertia of 0.150 kg·m2 about its axis...
The angular momentum of a flywheel having a rotational inertia of 0.150 kg·m2 about its axis decreases from 3.40 to 1.400 kg·m2/s in 0.90 s. (a) What is the average torque acting on the flywheel about its central axis during this period? N·m (b) Assuming a uniform angular acceleration, through what angle will the flywheel have turned? rad (c) How much work was done on the wheel? J (d) What is the average power of the flywheel? W
10. The angular momentum of a flywheel having a rotational inertia of 0.140 kg m2 about...
10. The angular momentum of a flywheel having a rotational inertia of 0.140 kg m2 about its central axis decreases from 3.00 to 0.800 kg m'/s in 1.50 s. (a) What is the magnitude of the average torque acting on the flywheel about its central axis during this period? (b) Assuming a constant angular acceleration, through what angle does the flywheel turn? (c) How much work is done on the wheel? (d) What is the average power of the flywheel?...
please help ASAP The angular momentum of a flywheel having a rotational inertia of 0.848 kg.mabout...
please help ASAP
The angular momentum of a flywheel having a rotational inertia of 0.848 kg.mabout its central axis decreases from 3.00 to 0.870 kg.m/s in 4.20 s. (a) What is the magnitude of the average torque acting on the flywheel about its central axis during this period? (b) Assuming a constant angular acceleration, through what angle does the flywheel turn? (c) How much work is done on the wheel? (d) What is the magnitude of the average power done...
can someone help me solve 5-7 5. Two particles of mass 1 kg each are attached...
can someone help me solve 5-7
5. Two particles of mass 1 kg each are attached to a massless rod a distance of 1 m and 2 m respectively from the axis of rotation. The axis of rotation is perpendicular to the rod. The angular speed of the system is I rad/s. What is the magnitude of the angular momentum of the system (in SI units)? 1kg - 1kg 1 m 2 m Lamur 3 A1 B. 4 1.1.2 Homes...
A disk with moment of inertia 9.15 × 10−3 kg∙m^2 initially rotates about its center at...
A disk with moment of inertia 9.15 × 10−3 kg∙m^2 initially rotates about its center at angular velocity 5.32 rad/s. A non-rotating ring with moment of inertia 4.86 × 10−3 kg∙m^2 right above the disk’s center is suddenly dropped onto the disk. Finally, the two objects rotate at the same angular velocity ?? about the same axis. There is no external torque acting on the system during the collision. Please compute the system’s quantities below. 1. Initial angular momentum ??...
(3) A disk with moment of inertia 9.15 × 10−3 kg∙m 2 initially rotates about its...
(3) A disk with moment of inertia 9.15 × 10−3 kg∙m 2 initially rotates about its center at angular velocity 5.32 rad/s. A non-rotating ring with moment of inertia 4.86 × 10−3 kg∙m 2 right above the disk’s center is suddenly dropped onto the disk. Finally, the two objects rotate at the same angular velocity ?? about the same axis. There is no external torque acting on the system during the collision. Please compute the system’s quantities below. 1. Initial...
1.A flywheel rotating at 12 rev/s is brought to rest in 5 s. The magnitude of...
1.A flywheel rotating at 12 rev/s is brought to rest in 5 s. The magnitude of the average angular acceleration in rad/s2 of the wheel during this process is: 2.The coefficient of static friction between a certain cylinder and a horizontal floor is 0.50. If the rotational inertia of the cylinder about its symmetry axis is given by I = (1/2)MR2, then the magnitude of the maximum acceleration in m/s2 the cylinder can have without sliding is: 3.A playground merry-go-round...
A flywheel has a moment of inertia of 0.015 kg m?. a How much torque do...
A flywheel has a moment of inertia of 0.015 kg m?. a How much torque do you need to create an angular acceleration of 3 rad/s“ ? b With this torque, what would the angular speed be after 6 seconds? C What would the angular momentum be after 6 seconds? d What would the kinetic energy of rotation be after 6 seconds?
To understand how to use conservation of angular momentum to solve problems involving collisions of rotating...
To understand how to use conservation of angular momentum to solve problems involving collisions of rotating bodies. Consider a turntable to be a circular disk of moment of inertia I_t rotating at a constant angular velocity omega_i around an axis through the center and perpendicular to the plane of the disk (the disk's "primary axis of symmetry"). The axis of the disk is vertical and the disk is supported by frictionless bearings. The motor of the turntable is off, so...
To understand how to use conservation of angular momentum to solve problems involving collisions of rotating bodies. (...
To understand how to use conservation of angular momentum to solve problems involving collisions of rotating bodies. (Figure 1) Consider a turntable to be a circular disk of moment of inertia It rotating at a constant angular velocity ωi around an axis through the center and perpendicular to the plane of the disk (the disk's "primary axis of symmetry"). The axis of the disk is vertical and the disk is supported by frictionless bearings. The motor of the turntable is...
10. The angular momentum of a flywheel having a rotational inertia of 0.140 kg m2 about its central axis decreases from 3.00 to 0.800 kg m'/s in 1.50 s. (a) What is the magnitude of the average torque acting on the flywheel about its central axis during this period? (b) Assuming a constant angular acceleration, through what angle does the flywheel turn? (c) How much work is done on the wheel? (d) What is the average power of the flywheel?...
please help ASAP
The angular momentum of a flywheel having a rotational inertia of 0.848 kg.mabout its central axis decreases from 3.00 to 0.870 kg.m/s in 4.20 s. (a) What is the magnitude of the average torque acting on the flywheel about its central axis during this period? (b) Assuming a constant angular acceleration, through what angle does the flywheel turn? (c) How much work is done on the wheel? (d) What is the magnitude of the average power done...
can someone help me solve 5-7
5. Two particles of mass 1 kg each are attached to a massless rod a distance of 1 m and 2 m respectively from the axis of rotation. The axis of rotation is perpendicular to the rod. The angular speed of the system is I rad/s. What is the magnitude of the angular momentum of the system (in SI units)? 1kg - 1kg 1 m 2 m Lamur 3 A1 B. 4 1.1.2 Homes...
A flywheel has a moment of inertia of 0.015 kg m?. a How much torque do you need to create an angular acceleration of 3 rad/s“ ? b With this torque, what would the angular speed be after 6 seconds? C What would the angular momentum be after 6 seconds? d What would the kinetic energy of rotation be after 6 seconds?
To understand how to use conservation of angular momentum to solve problems involving collisions of rotating bodies. Consider a turntable to be a circular disk of moment of inertia I_t rotating at a constant angular velocity omega_i around an axis through the center and perpendicular to the plane of the disk (the disk's "primary axis of symmetry"). The axis of the disk is vertical and the disk is supported by frictionless bearings. The motor of the turntable is off, so...
