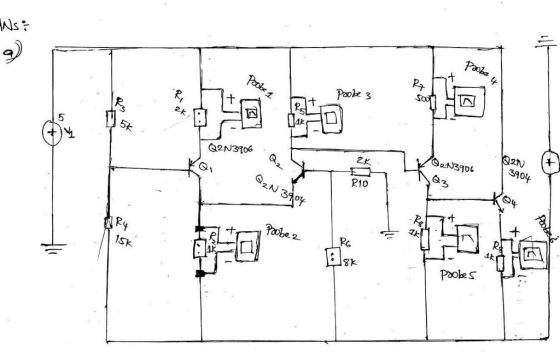

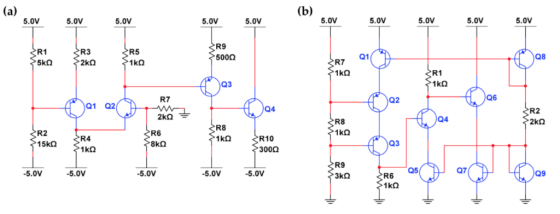

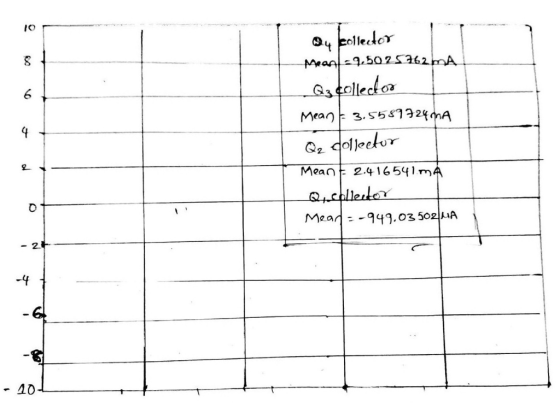

For the following circuits, find the DC collector currents (IC ), and verify all assumptions including operating regions of all transistors. Assume β = 100.
Homework Answers
Add Answer to:
For the following circuits, find the DC collector
currents (IC ), and verify all assumptions including...
Hi everyone, I have a problem about multistage amplifier. Please help me out, Thank you. Consider...
Hi everyone, I have a problem about multistage amplifier.
Please help me out, Thank you.
Consider the following multistage amplifier circuit. Given, B VA = 0, VcCE(Sat) = 0.2V and IVBE(ON) 0.7V for all transistors except Q3. VBE for Q3 is 0.655V. Determine the output voltage R6 1.8kΩ R1 9.77ko R2 24k0 R3 4kn R4 10ko R5 10ko 15 V Q8 Q10 Q5 Q6 output Q3 Q2 Q1 R9 15.7k R7 10kn R8 900 15 V
a) Find the voltage and current in each bipole and resistor shown in the circuit by...
a) Find the voltage and current in each bipole and
resistor shown in the circuit by using Maxwell's
method.
b) Verify the results by applying
Kirchhoff's Laws.
R1 = R3 = R5 =
R7 = R9 = 100 Ω
R2 = R4 = R6 =
R8 = R10 = 200 Ω
E1 = E3 = E5 = 9
V
E2 = E4 = 6 V
Ri www R2 www www R9 R7 www R3 Es R: www Ει EA E2 E3...
5.3 Rewrite the following program fragment that is written using the GPR instruction set for execution...
5.3 Rewrite the following program fragment that is written using the GPR instruction set for execution on a CISC processor that provides the same instruction set as the GPR processor but allows the register addressing mode to be used on the input operands or destination of any instruction. (Yes, the code fragment will execute correctly as written on such a processor. Your goal should be to reduce the number of instructions as much as possible. ) Assume that the program...
Please show neat, detailed work, including all small signal analysis if necessary, diagrams and c...
Please show neat, detailed work, including all small signal
analysis if necessary, diagrams and complete algebra steps. Thanks
!!!
Answer all parts clearly !!!
NOTICE THERE MUST BE 4 VOLTAGE GAINS MULTIPLIED TO GET THE FINAL
GAIN. THE ANSWER IS
We were unable to transcribe this image2) VDD Ideal R3 R7 C5 C3 Vout RI R5 Q4 Rsig C1 Vbia Q1 02 R11 Q3 R2 R4 C2 R6 R8 R10 Rout-? Rin-? Assume all the capacitors are reasonably large at...
Please show neat, detailed work, including all small signal analysis if necessary, diagrams and c...
Please show neat, detailed work, including all small signal
analysis if necessary, diagrams and complete algebra steps. Thanks
!!!
Answer all parts clearly !!!
NOTICE THERE MUST BE 4 VOLTAGE GAINS MULTIPLIED TO GET THE FINAL
GAIN. THE ANSWER IS
!!! THIS QUESTION DOES NOT NEED ANY MORE INFORMATION !!!
We were unable to transcribe this image2) VDD Ideal R3 R7 C5 C3 Vout RI R5 Q4 Rsig C1 Vbia Q1 02 R11 Q3 R2 R4 C2 R6 R8 R10...
Please answer in full detail, show all work. thank you FInd all the DC collector currents showing...
please answer in full detail, show all work. thank you FInd all
the DC collector currents showing all work.
Reference First stage Second stage Output stage current cc (+15 V) 13A 12 13 B 14 19 27 Ω Out 18 | R10 = 40 kΩ 27 Ω Q2 39 kΩ In In l CC 30 pF REF 24 I 16 10 17 50 kΩ 100 Ω 024 50 kΩ VEE 15 v) Figure 13.14 The 741 op-amp circuit: Qu, Qi2,...
Help please , using kirchoff rule Q1) Find all the missing currents in the following circuits....
Help please , using kirchoff rule
Q1) Find all the missing currents in the following circuits. a) 20V 'R3 50 R1 20 0 R2 10 0 - 2V 4V b) 20V R6 30 0 R1 R2 40 요 R3 40 0 R4 40 0 40 0 r R5 30 요
find all the DC collector currents of the 741 circuit. answers are shown in the table....
find all the DC collector currents of the 741 circuit. answers are
shown in the table. just need to show the work for them all. please
answer this question in full detail, showing all work neatly.
4. First self-study Sections 13.3.1 and 13.3.2 (pp. 1028- Table 13.1 DC Collector Currents of the 741 Circuit (uA) pp.1038), including Exercises and Examples. Then, find all 9.5 DC collector currents of the 741 circuit yourself, although 9.5 the answer is listed in Table...
