Homework Answers
Add Answer to:
Buck Converter Question

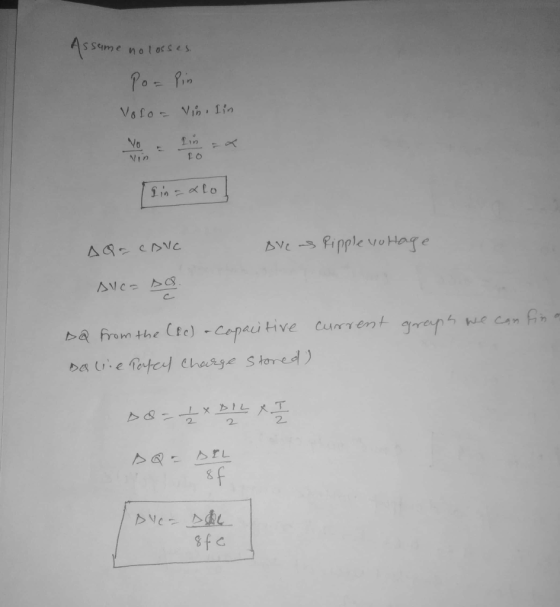

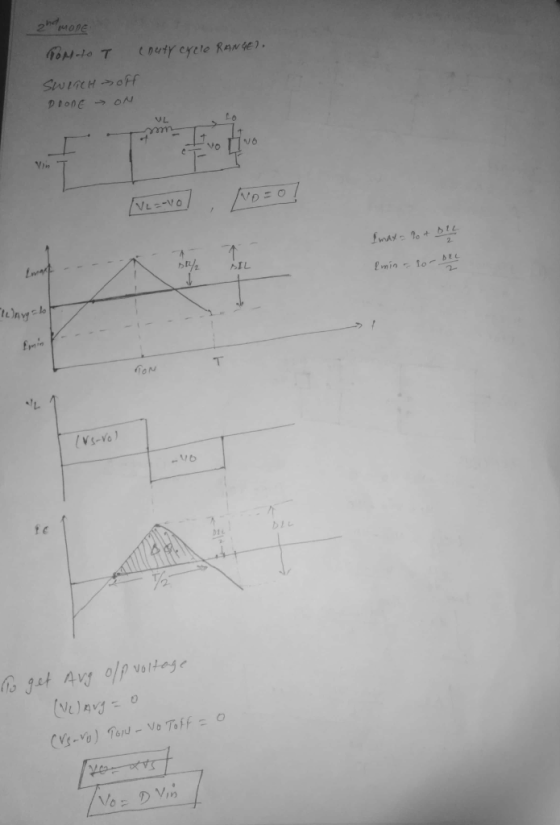

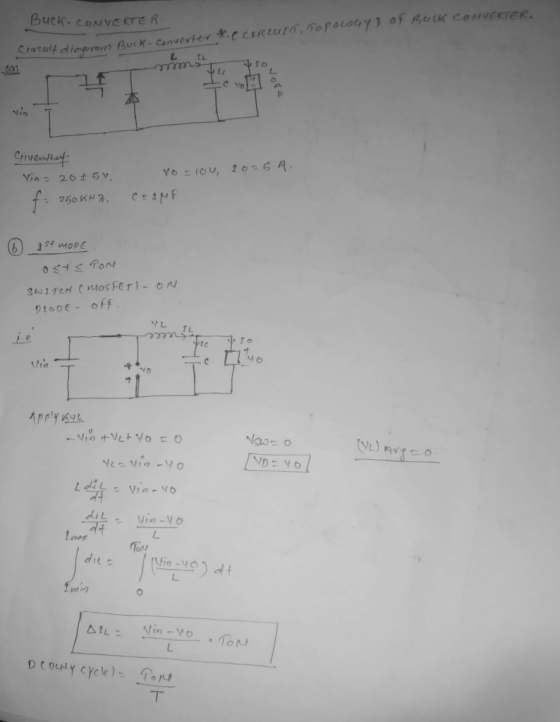

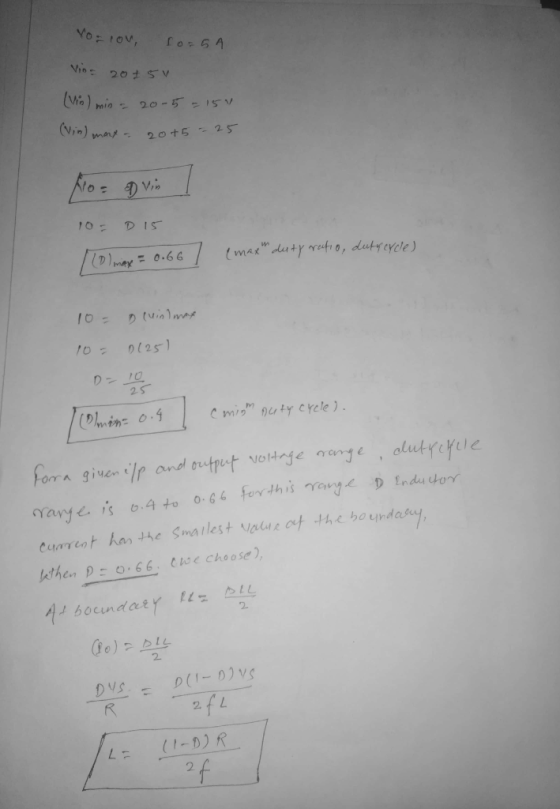

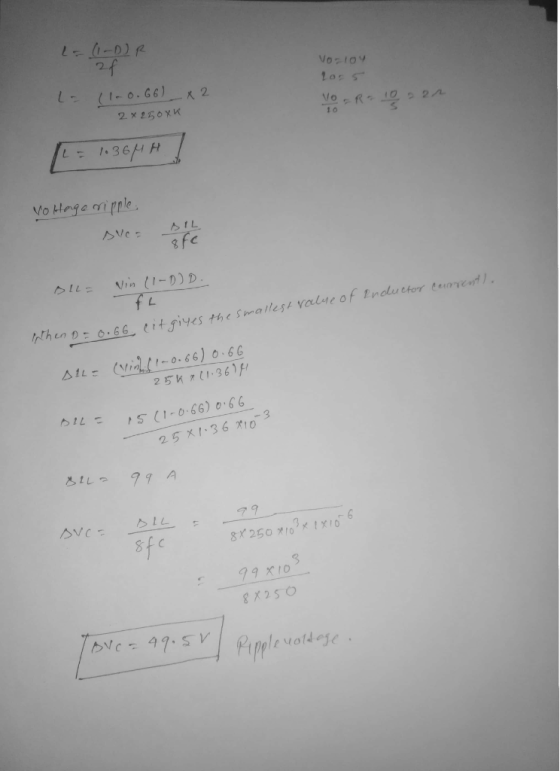

Q3. A Buck converter is used to produce a regulated 10V, 5A DC...
Q5. 5.a. Sketch the circuit arrangement of a DC-DC boost (step up) converter, clearly labelling each...
Q5. 5.a. Sketch the circuit arrangement of a DC-DC boost (step up) converter, clearly labelling each circuit element [4 тarks] [Refer to lecture notes] Sketch all significant operating waveforms for this converter for continuous conduction conditions over two switching periods, in particular showing 5.b. the voltage across the main switching device and the boost diode. [2 marks the voltage across the inductor [3 тarks] the current flowing through the inductor [3 marks [Refer to lecture notes] 5.c. The DC-DC boost...
You are required to design a 10V to 5V non-isolated step-down converter. The converter specificat...
You are required to design a 10V to 5V non-isolated step-down converter. The converter specifications are as follows: • Minimum input voltage: 6V • Maximum input voltage: 10V • Output voltage: 5V • Switching frequency: 20 kHz • Output voltage ripple: 20mV • Maximum output load current: 1A • Minimum output load current: 0.1A The converter must operate in the continuous conduction mode under all output current conditions and input voltage conditions. During this design process, provide good engineering reasons...
A buck converter is used to have low output voltage from the high input source to...
A buck converter is used to have low output voltage from the high input source to low output voltage. The estimated power output is at 25 kW with the switching frequency of 25 kHz. Design the buck converter as by finding and following specifications consider the ripple of the output is set at 1% (i) Calculate the duty ratio of the buck converter (1 mark) (ii) Determine the minimum requirement for the inductor and the capacitor (5 marks) (iii) Determine...
1. (35 points) Switch mode DC DC Converters. a. (15 points) Design a flyback DC/DC power converter to the following specifications. Assume ideal components Input Voltage Output Voltage Output Powe...
1. (35 points) Switch mode DC DC Converters. a. (15 points) Design a flyback DC/DC power converter to the following specifications. Assume ideal components Input Voltage Output Voltage Output Power Switching frequency Maximum Current Ripple in the filter inductor Output ripple voltage: Continuous conduction 170 VDC 12 VDC 40 Watts 750 kHz 1.2 Amps Your answer should include a circuit diagram with each energy storage element labeled with its value. Label the transformer turns ratio.
1. (35 points) Switch mode...
I want to solve this problem step by step 1. (35 points) Switch mode DC / DC Converters. a. (15 points) Design a flyback DC/DC power converter to the following specifications. Assume ideal compone...
I want to solve this problem step by step
1. (35 points) Switch mode DC / DC Converters. a. (15 points) Design a flyback DC/DC power converter to the following specifications. Assume ideal components. Input Voltage Output Voltage Output Power Switching frequency Maximum Current Ripple in the filter inductor Output ripple voltage: Continuous conduction 170 VDC 12 VDC 40 Watts 750 kHz 1.2 Amps Your answer should include a circuit diagram with each energy storage element labeled with its value....
Please help in this question conserning the buck-boost converter 4. a. Draw a buck-boost converter to...
Please help in this question conserning the buck-boost
converter
4. a. Draw a buck-boost converter to be implemented with an IGBT and diode b. Suggest suitable component values if such a converter is to serve resistive loads between 15 W and 30 W with a constant 8 V output, when the converter's input can vary between 5 V and 12 V. The output peak-to-peak voltage ripple should be less than 5% of the output voltage. The converter should operate in...
QUESTION 3 In the DC-DC buck-boost converter shown in next page assume that all the components...
QUESTION 3 In the DC-DC buck-boost converter shown in next page assume that all the components are ideal and the converter is operating in continuous conduction mode and is in steady-state (a) Derive the conversion ratio of WI - Draw the circuit diagram when the switch is in on and off states. Use small ripple approximation for your analysis Sketch the current through and the voltage across the inductor when the switch is in on and off states. Include all...
To design a high efficiency d.c., to d.c power converter with the given specifications min 10V max 15V nominal (regulated) 8V Input voltage: Output voltage: Nominal load current: 4A Inductor current...
To design a high efficiency d.c., to d.c power converter with the given specifications min 10V max 15V nominal (regulated) 8V Input voltage: Output voltage: Nominal load current: 4A Inductor current ripple: 0.1A max Switching frequency: 30 kHz Output voltage ripple: 20 mV Define a suitable power circuit topology to meet the above specification? Sketch a circuit diagram of the chosen power circuit topology (a) Define the minimum and maximum duty cycles assuming that the control circuit keeps the output...
+ VDS Consider the Buck DC-to-DC converter shown above. Assume it is operated at a switching...
+ VDS Consider the Buck DC-to-DC converter shown above. Assume it is operated at a switching frequency, f 25 KHz, with a duty cycle, D- 0.4 a) Given the sketch of the inductor current, i(t), shown below, sketch the waveforms for the input current, (t), the output current, i(t), the diode current, ip(), and the capacitor current, ict).Also, compute their average, RMS and peak values. (Note: Some useful formulas are provided on the last page) 10 5 t (s) (b)...
Following figure shows the circuit diagram for a buck-boost converter for switch off and switch o...
Following figure shows the circuit diagram for a buck-boost converter for switch off and switch on. The plots for inductor voltage Vl and inductor current iL are also shown. The average value of i, is denoted by I1, average output current is -l and average input current is ld. Similarly, the average value of u1 is denoted by V1, output voltage is-, and input DC voltage is Va. Time period of the switch is Ts 1/f and its duty cycle...
Q5. 5.a. Sketch the circuit arrangement of a DC-DC boost (step up) converter, clearly labelling each circuit element [4 тarks] [Refer to lecture notes] Sketch all significant operating waveforms for this converter for continuous conduction conditions over two switching periods, in particular showing 5.b. the voltage across the main switching device and the boost diode. [2 marks the voltage across the inductor [3 тarks] the current flowing through the inductor [3 marks [Refer to lecture notes] 5.c. The DC-DC boost...
A buck converter is used to have low output voltage from the high input source to low output voltage. The estimated power output is at 25 kW with the switching frequency of 25 kHz. Design the buck converter as by finding and following specifications consider the ripple of the output is set at 1% (i) Calculate the duty ratio of the buck converter (1 mark) (ii) Determine the minimum requirement for the inductor and the capacitor (5 marks) (iii) Determine...
1. (35 points) Switch mode DC DC Converters. a. (15 points) Design a flyback DC/DC power converter to the following specifications. Assume ideal components Input Voltage Output Voltage Output Power Switching frequency Maximum Current Ripple in the filter inductor Output ripple voltage: Continuous conduction 170 VDC 12 VDC 40 Watts 750 kHz 1.2 Amps Your answer should include a circuit diagram with each energy storage element labeled with its value. Label the transformer turns ratio.
1. (35 points) Switch mode...
I want to solve this problem step by step
1. (35 points) Switch mode DC / DC Converters. a. (15 points) Design a flyback DC/DC power converter to the following specifications. Assume ideal components. Input Voltage Output Voltage Output Power Switching frequency Maximum Current Ripple in the filter inductor Output ripple voltage: Continuous conduction 170 VDC 12 VDC 40 Watts 750 kHz 1.2 Amps Your answer should include a circuit diagram with each energy storage element labeled with its value....
Please help in this question conserning the buck-boost
converter
4. a. Draw a buck-boost converter to be implemented with an IGBT and diode b. Suggest suitable component values if such a converter is to serve resistive loads between 15 W and 30 W with a constant 8 V output, when the converter's input can vary between 5 V and 12 V. The output peak-to-peak voltage ripple should be less than 5% of the output voltage. The converter should operate in...
QUESTION 3 In the DC-DC buck-boost converter shown in next page assume that all the components are ideal and the converter is operating in continuous conduction mode and is in steady-state (a) Derive the conversion ratio of WI - Draw the circuit diagram when the switch is in on and off states. Use small ripple approximation for your analysis Sketch the current through and the voltage across the inductor when the switch is in on and off states. Include all...
To design a high efficiency d.c., to d.c power converter with the given specifications min 10V max 15V nominal (regulated) 8V Input voltage: Output voltage: Nominal load current: 4A Inductor current ripple: 0.1A max Switching frequency: 30 kHz Output voltage ripple: 20 mV Define a suitable power circuit topology to meet the above specification? Sketch a circuit diagram of the chosen power circuit topology (a) Define the minimum and maximum duty cycles assuming that the control circuit keeps the output...
+ VDS Consider the Buck DC-to-DC converter shown above. Assume it is operated at a switching frequency, f 25 KHz, with a duty cycle, D- 0.4 a) Given the sketch of the inductor current, i(t), shown below, sketch the waveforms for the input current, (t), the output current, i(t), the diode current, ip(), and the capacitor current, ict).Also, compute their average, RMS and peak values. (Note: Some useful formulas are provided on the last page) 10 5 t (s) (b)...
Following figure shows the circuit diagram for a buck-boost converter for switch off and switch on. The plots for inductor voltage Vl and inductor current iL are also shown. The average value of i, is denoted by I1, average output current is -l and average input current is ld. Similarly, the average value of u1 is denoted by V1, output voltage is-, and input DC voltage is Va. Time period of the switch is Ts 1/f and its duty cycle...
