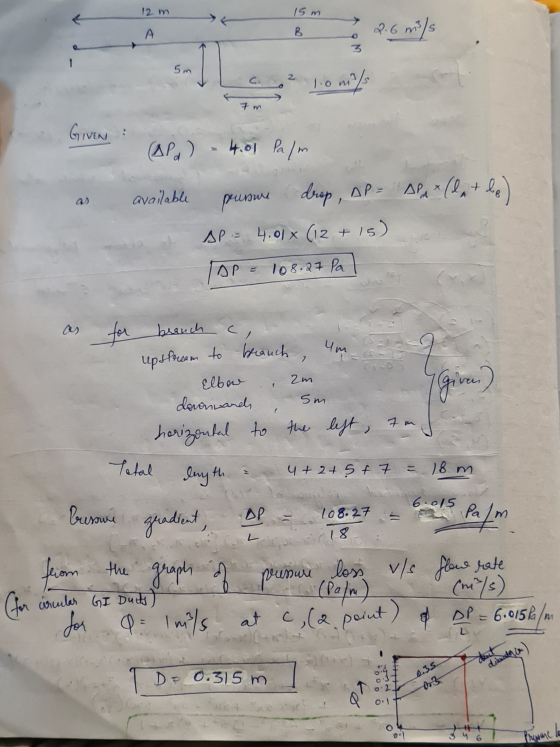

(a) Index run for this system is A-C, as maximum pressure drop is in A-C (6.015 Pa/m)
(b) diameter,D = 0.315 m
(c) as damper reduces the exit velocity, and the required flow rate will not be achievable, (as given area of pipe is constant.)
Add Answer to:
this is heat and air conditioning question, please i want the
solution due date is saturday...

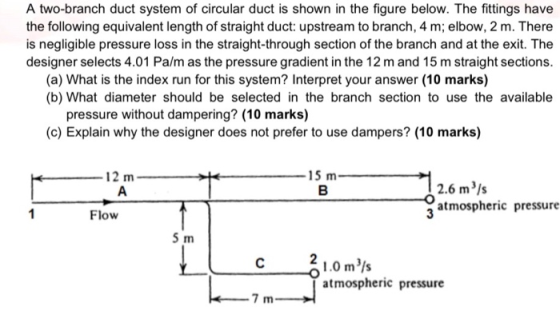

Q2 A main trunk duct of air-conditioning system shown in Figure 2 is rectangular in cross-section...
Q2 A main trunk duct of air-conditioning system shown in Figure 2 is rectangular in cross-section (40 cm x 80 cm). Air at atmospheric pressure and temperature of 20c flows inside the duct with velocity of 7 m/s. The cross sectional srea snd definition of characteristic length for the duct are given in Figure 2. The duct is assumed to be m long. The flow inside the duct is assumed fully developed. (a)Find properties of air using suitable value of...
