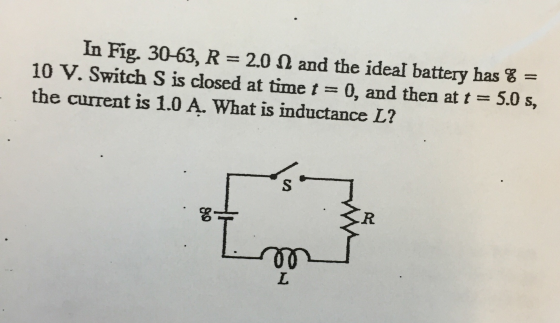

In Fig. 30-63, R = 2.0 ohm and the ideal battery has E =10 V. Switch...

Question

Question

In Fig. 30-63, R = 2.0 ohm and the ideal battery h

science physics

Answer 1

Answer #1

I = I0*(1-e^-tR/L )

at t =5sec

I0 = E/R = 10/2 = 5 amp

1 = 5*(1-e^(-2*5/L)

=> -0.8 = -e^(-2*5/L)

=> 0.223 = 10/L

=> L = 10/(0.223) = 44.84 H

Answer 2

Similar Homework Help Questions

Question 7/10 R {R2 In the circuit in the figure erf of the battery E=25 V....

Question 7/10 R {R2 In the circuit in the figure erf of the battery E=25 V. All the inductors are of the LI same inductance, L=0.061 H and of negligible resistances. 8 S Resistances of the resistors 6N, R 422, R 892, R3 = 82, R = 152, Rs = 91, Rs =8n. The switch S is closed at the time t = 0. Find the current flowing in Ro immediately after the switch S is closed. are Ro Oston...
In the circuit shown in Fig. the battery provides an E = 15 V

In the circuit shown in Fig. the battery provides an E = 15 V, the inductance is L = 0.5 H, and the resistances are R1 = 12Ω and R2 = 9Ω. Initially the switch S is open, and At t = 0, suddenly the switch is closed. At that moment what is the current going through R1 in A?
An R-L circuit has a 60 V battery, a 42 H inductor, a 24 ohm resistor,...

An R-L circuit has a 60 V battery, a 42 H inductor, a 24 ohm resistor, and a switch S, in series, as shown. Initially, the switch is open, and there is no magnetic flux in the inductor. At time the switch is closed. In Figure 21.23b, when the resistor voltage is equal to the inductor voltage, the current in the circuit is closest to: 1.3 A 1.0 A 0.50 A 1.5 A 0.75 A

In the circuit shown in the figure, the battery is ideal, xi= 14.3 V, L =...

In the circuit shown in the figure, the battery is ideal, xi= 14.3 V, L = 11.1 mH, R_1 = 11.9 ohm, and R_2 = 20.9 ohm. The switch has been open for a long time before it is closed at t = 0. At what rate is the current in the inductor changing (a) immediately after the switch is closed and (b) when the current in the battery 0.510 A? (c) What is the current (in A) in the...
11. In Fig. 5 suppose e 120 v, R 200 Q, and L 10.0 H. Find...

11. In Fig. 5 suppose e 120 v, R 200 Q, and L 10.0 H. Find the (a) final current after the swich has beern closed for a long time, (b) initial rate of change of current immediately after the switch has been closed, and (c) the time constant. [Ans : 0.6 A, l 2.0 A/s, 0.05 s]. [Hint: I e/R, ? L(AiA), or, (???t)initial-el -...] 12. Fig. 6 shows two coils mutually connected with a mutual inductance M. When...
A 12.0 V ideal battery is connected in series to a 20 ohm resistor and an...

A 12.0 V ideal battery is connected in series to a 20 ohm resistor and an inductor. The switch is closed and the circuit reaches a steady state, then the switch is opened. At what rate is the battery transferring energy to the inductors field at a time equal to 2.0 times the inductive time constant?

E S Figure 31.2: RL Circuit (Problems 8 and 10) 10. In the circuit given in...

E S Figure 31.2: RL Circuit (Problems 8 and 10) 10. In the circuit given in Fig. 31.2, R 20 kS2, R220 k2, L 50 mH, and the ideal battery has E40 V. The switch has been open for a (a) Just after the switch was closed, what are the current through the (b) After a very long time, what is the current through the battery (c) What is the current through the battery and its rate of change at...
In the circuit in the figure R. RS emf of the battery E = 27 V....

In the circuit in the figure R. RS emf of the battery E = 27 V. All the inductors are of the ZR L same inductance, L=0.12 H L3 R1 and of negligible resistances. Is.. Resistances of the resistors are Ro = 31, R: = 41, R2 = 109, Rg = 1522, R = 122, Rs = 102, R=1012. The switch S is closed at the time t = 0 Find the current flowing in Ro immediately after the switch...
A 12-V battery is connected in series with a switch, resistor and coil. If the circuit's...

A 12-V battery is connected in series with a switch, resistor and coil. If the circuit's time constant is 2.0 ´ 10-4 s and the final steady current after the switch is closed becomes 1.0 A, what is the value of the inductance? Question 60 options: 1) 1.2 mH 2) 2.4 mH 3) 9.6 mH 4) 48 mH 5) 96 mH WILL RATE!!

A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....

A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R = R2 = 622, R3 = 91 and R - 74 . The inductance is L-205 mH and the battery voltage is V - 24V. v + Lun lai 1) The switch has been open for a long time when at time t = 0, the switch is closed. What is 1(O), the magnitude of the current...
