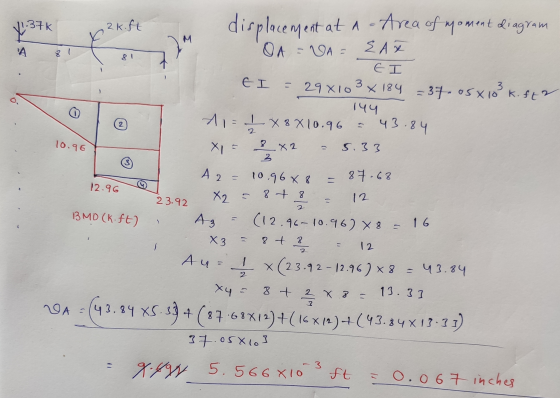

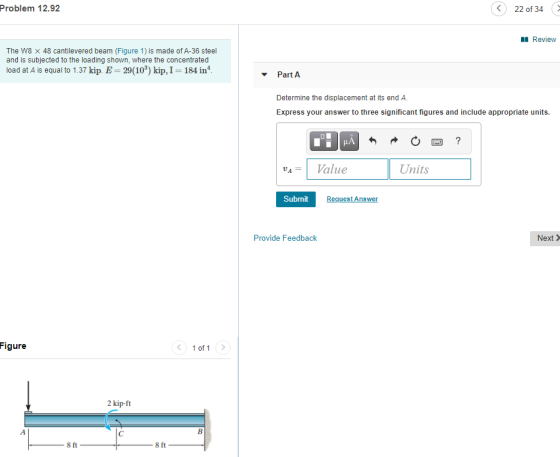

Problem 12.92 < 22 of 34 Review The W8 x 48 cantilevered beam (Figure 1) is...
The W8 x 48 cantilevered beam (Figure 1) is made of A-36 steel and is subjected...
The W8 x 48 cantilevered beam (Figure 1) is made of A-36 steel and is subjected to the loading shown, where the concentrated load at A is equal to 1.44 kip. E= 29(10) kip, I = 184 in MLC (3LAB-I) (UC)2 = 2EI Determine the displacement at C. (Vc) Express your answer to three significant figures and include appropriate units CHA ROS? vc= Value Units Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B Figure...
Review Part A The assembly consists of a cantilevered beam CB and a simply supported beam AB (Figure 1). If each beam is made of A-36 steel and has a moment of inertia about its principal axis of det...
Review Part A The assembly consists of a cantilevered beam CB and a simply supported beam AB (Figure 1). If each beam is made of A-36 steel and has a moment of inertia about its principal axis of determine the displacement at the center D of beam BA. 136 in4 Express your answer to three significant figures and include appropriate units. AD = Value Units Submit Figure 1 of 1 15 kip Provide Feedback 8 ft 16 ft
Review Part...
Problem 12.88 The W10 x 15 cantilevered beam is made of A-36 steel and is subjected...
Problem 12.88 The W10 x 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown (Figure 1) Part A Determine the displacement at B.If R-6 kip and B = 5 kip Express your answer with the appropriate units. Figure < 1 of 1 HA Ap- Value Units Submit Request Answer Part B Determine the slope at B if P = 6 kip and P = 5 kip Express your answer with the appropriate units.
The W10 x 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown.(Figure 1)
The W10 x 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown.(Figure 1) Part A Determine the displacement at B, if P1 = 9 kip and P2 = 5 kip Part B Determine the slope at B, if P1 = 9 kip and P2 = 5 kip.
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the...
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. Using the table in Appendix C, determine the displacement at B and the slope at B. 4 kip 6 kip В 6 ft 6 ft Problem 9.5 The W410x53 beam is made of A-36 steel has a fixed support at A and a roller support at C. The beam is subjected to the loading shown. Using the table in Appendix C, (a)...
The WI0x 15 cantilevered beam is made of A-36 steel and is subjected to the loading...
The WI0x 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. 6 ft 6ft Tap image to zoom Part A Determine the displacement at B, if P19 kip and P2 5 kip Express your answer with the appropriate units. AB003044 in Submit Request Answer Incorrect; Try Again; 5 attempts remaining
The W10 × 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown
The W10 × 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. Suppose that w=2.5 kip/ft. E = 29(103) ksi and I = 68.9 in4.(Figure 1) Part A Determine the slope of the beam B, measured counterclockwise from the positive x axis. Express your answer using three significant figures. Part B Determine the displacement of the beam at B.
The W8x 24 simply supported beam is subjected to the loading shown Part A Using the...
The W8x 24 simply supported beam is subjected to the loading shown Part A Using the method of superposition, determine the deflection at its center C. The beam is made of A-36 steel. Take M 3 kip ft and w8 kip/ft (Figure 1) Express your answer with the appropriate units. Figure 1 of 1> AcValue Units Submit Return to Assignment Provide Feedback s t
Problem 12.22 2 of 3 Review Part A Consider the cantilevered W14 30 beam shown in...
Problem 12.22 2 of 3 Review Part A Consider the cantilevered W14 30 beam shown in (Figure 1) . E. 29(103) ksi. 1#291 in' Determine the expression for the elastic curve using the coordinate for 0 sxs9 ft, where is in feet. Express your answer in terms of . Express your answer using three significant figures. r20 (X)x.10' x Xb 8439000 2.25x0.02778r -40.5 Figure 1 of1 Submit Incorrect; Try Again; 3 attempts remaining 3 kip/ft Part B Determine the maximum...
1. (28 pts) A cantilever beam is subjected to the loads as shown in the figure....
1. (28 pts) A cantilever beam is subjected to the loads as shown in the figure. Va) Draw a free-body diagram and determine the supports at point 0. b) Draw shear and moment diagrams and find the values at key points (i.e. x = 0, 6 and 10 ft). If possible, please show your calculations. c) Find shear force V(x) and bending moment M(x) for () <x<6 ft. 12 10 kip 2 kip/ft skip سے 40 kip.lt 611 4 11...
The W8 x 48 cantilevered beam (Figure 1) is made of A-36 steel and is subjected to the loading shown, where the concentrated load at A is equal to 1.44 kip. E= 29(10) kip, I = 184 in MLC (3LAB-I) (UC)2 = 2EI Determine the displacement at C. (Vc) Express your answer to three significant figures and include appropriate units CHA ROS? vc= Value Units Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B Figure...
Review Part A The assembly consists of a cantilevered beam CB and a simply supported beam AB (Figure 1). If each beam is made of A-36 steel and has a moment of inertia about its principal axis of determine the displacement at the center D of beam BA. 136 in4 Express your answer to three significant figures and include appropriate units. AD = Value Units Submit Figure 1 of 1 15 kip Provide Feedback 8 ft 16 ft
Review Part...
Problem 12.88 The W10 x 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown (Figure 1) Part A Determine the displacement at B.If R-6 kip and B = 5 kip Express your answer with the appropriate units. Figure < 1 of 1 HA Ap- Value Units Submit Request Answer Part B Determine the slope at B if P = 6 kip and P = 5 kip Express your answer with the appropriate units.
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. Using the table in Appendix C, determine the displacement at B and the slope at B. 4 kip 6 kip В 6 ft 6 ft Problem 9.5 The W410x53 beam is made of A-36 steel has a fixed support at A and a roller support at C. The beam is subjected to the loading shown. Using the table in Appendix C, (a)...
The WI0x 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. 6 ft 6ft Tap image to zoom Part A Determine the displacement at B, if P19 kip and P2 5 kip Express your answer with the appropriate units. AB003044 in Submit Request Answer Incorrect; Try Again; 5 attempts remaining
The W8x 24 simply supported beam is subjected to the loading shown Part A Using the method of superposition, determine the deflection at its center C. The beam is made of A-36 steel. Take M 3 kip ft and w8 kip/ft (Figure 1) Express your answer with the appropriate units. Figure 1 of 1> AcValue Units Submit Return to Assignment Provide Feedback s t
Problem 12.22 2 of 3 Review Part A Consider the cantilevered W14 30 beam shown in (Figure 1) . E. 29(103) ksi. 1#291 in' Determine the expression for the elastic curve using the coordinate for 0 sxs9 ft, where is in feet. Express your answer in terms of . Express your answer using three significant figures. r20 (X)x.10' x Xb 8439000 2.25x0.02778r -40.5 Figure 1 of1 Submit Incorrect; Try Again; 3 attempts remaining 3 kip/ft Part B Determine the maximum...
1. (28 pts) A cantilever beam is subjected to the loads as shown in the figure. Va) Draw a free-body diagram and determine the supports at point 0. b) Draw shear and moment diagrams and find the values at key points (i.e. x = 0, 6 and 10 ft). If possible, please show your calculations. c) Find shear force V(x) and bending moment M(x) for () <x<6 ft. 12 10 kip 2 kip/ft skip سے 40 kip.lt 611 4 11...
