Find the Thevenin equivalent for the following circuit using (1) PSpice and (2) pen and paper....

Question

Question

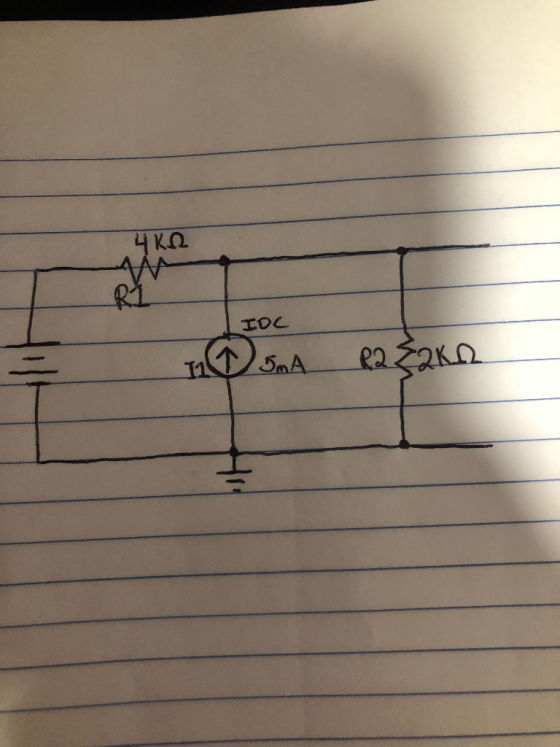

Find the Thevenin equivalent for the following circuit using (1) PSpice and (2) pen and paper.

KO 1OC

engineering Electrical-Engineering

Answer 1

Answer #1

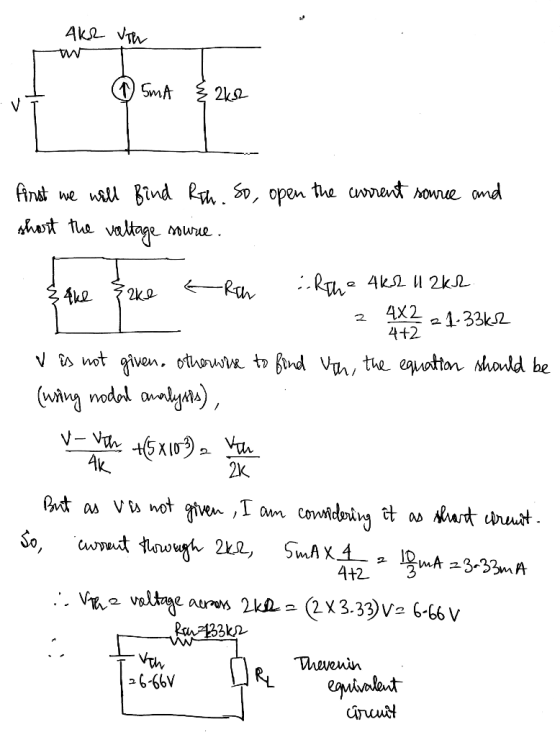

Ako Vw w @ 5mA { 2ks first we will find Reth. So, open the current source and short the voltage source. {que {ake t reh :Rth

The voltage source value is not given. So, I have guided you how to solve in that case. You can comment in the comment section in case any doubt.

Please upvote. Thank you.
