Please drive and explain any formulas used
Homework Answers

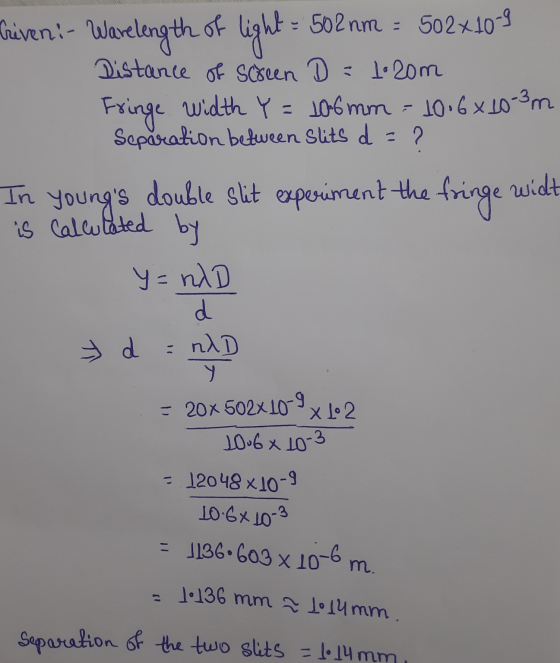

use the below equations, to find the seperation distance.
y/L = m(wavelength)/d
0.0106/1.20 = 20(502 X 10-9)/d
d = 11.36 X 10^-4 m
= 1136 um
Add Answer to:
Please drive and explain any formulas used

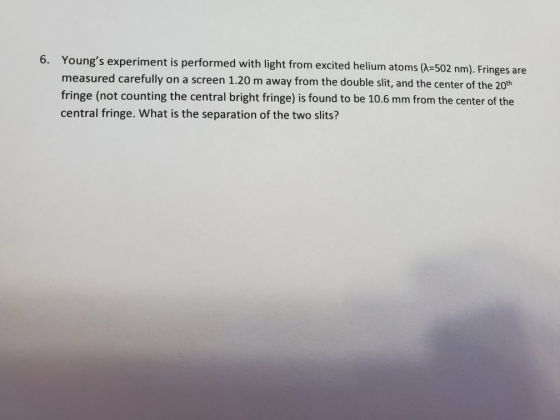

6. Young's experiment is performed with light from excited...
Young's experiment is performed with light of wavelength 502 nm from excited helium atoms. Fringes are...
Young's experiment is performed with light of wavelength 502 nm from excited helium atoms. Fringes are measured carefully on a screen 1.50 m away from the double slit, and the center of the 20th fringe (not counting the central bright fringe) is found to be 11.6 mm from the center of the central bright fringe. What is the separation of the two slits?
Young's experiment is performed with light of wavelength 502 nm from excited helium atoms. Fringes are...
Young's experiment is performed with light of wavelength 502 nm from excited helium atoms. Fringes are measured carefully on a screen 1.50 maway from the double slit, and the center of the 20th fringe (not counting the central bright fringe) is found to be 10.4 mm from the center of the central bright fringe. What is the separation of the two slits? in mm
Young's experiment is performed with light of wavelength 502nm from excited helium atoms. Fringes are...
Young's experiment is performed with light of wavelength 502nm from excited helium atoms. Fringes are measured carefully on a screen 1.35m away from the double slit, and the center of the 20th fringe (not counting the central bright fringe) is found to be 10.4mm from the center of the central bright fringe. What is the separation of the two slits?
(6) With the aid of an appropriate diagram, show that for Young's double slit experiment, y...
(6) With the aid of an appropriate diagram, show that for Young's double slit experiment, y = 2. D/a, where 2 is the wavelength of the source, a is the slit separation, D is the distance between the slits and the screen, and y is the separation between the central bright fringe and the first order fringe. (c) In Young's double slit experiment, the slit spacing was 0.56 mm and the distance across the four-fringe spacing was 3.6 mm when...
In a Young's double-slit experiment, the seventh dark fringe is located 0.030 m to the side...
In a Young's double-slit
experiment, the seventh dark fringe is located 0.030 m to the side
of the central bright fringe on a flat screen, which is 1.0 m away
from the slits. The separation between the slits is 1.5
In a Young's double-slit experiment, the seventh dark fringe is located 0.030 m to the side of the central bright fringe on a flat screen, which is 1.0 m away from the slits. The separation between the slits is 1.5...
1( A) In a Young's double-slit experiment, a set of parallel slits with a separation of...
1( A) In a Young's double-slit experiment, a set of parallel slits with a separation of 0.102 mm is illuminated by light having a wavelength of 576 nm and the interference pattern observed on a screen 3.50 m from the slits. What is the difference in path lengths from the two slits to the location of a third order bright fringe on the screen? 1(B) In a Young's double-slit experiment, a set of parallel slits with a separation of 0.102...
In a Young's double slit experiment, you observe a series of bright and dark fringes, the...
In a Young's double slit experiment, you observe a series of bright and dark fringes, the bright fringe to the left of central bright fringe is 1 cm away from the central bright fringe. The laser used in the experiment is 600 nm and the distance between the double slit where the pattern is projected is 1 m. What is the distance between the two slits?
In a Young's double-slit experiment, the seventh dark fringe is located 0.033 m to the side...
In a Young's double-slit experiment, the seventh dark fringe is
located 0.033 m to the side of the central bright fringe on a flat
screen, which is 1.2 m away from the slits. The separation between
the slits is 1.3 × 10-4 m. What is the wavelength of the light
being used?
Seventh dark fringe ---C Central bright fringe Seventh dark fringe Double slit Screen
Red light with lambda = 664 nm is used in Young's experiment with the slits separated...
Red light with lambda = 664 nm is used in Young's experiment with the slits separated by a distance d = 1.20 times 10^-1 m. The screen is located at a distance from the slits given by D=2.75 m. Find the distance y on the screen between the central bright fringe and the third-order bright fringe.
In a Young's double-slit experiment, a set of parallel slits with a separation of 0.144 mm...
In a Young's double-slit experiment, a set of parallel slits with a separation of 0.144 mm is illuminated by light having a wavelength of 590 nm and the interference pattern observed on a screen 3.50 m from the slits. (a) What is the difference in path lengths from the two slits to the location of a third order bright fringe on the screen? um (b) What is the difference in path lengths from the two slits to the location of...
(6) With the aid of an appropriate diagram, show that for Young's double slit experiment, y = 2. D/a, where 2 is the wavelength of the source, a is the slit separation, D is the distance between the slits and the screen, and y is the separation between the central bright fringe and the first order fringe. (c) In Young's double slit experiment, the slit spacing was 0.56 mm and the distance across the four-fringe spacing was 3.6 mm when...
In a Young's double-slit
experiment, the seventh dark fringe is located 0.030 m to the side
of the central bright fringe on a flat screen, which is 1.0 m away
from the slits. The separation between the slits is 1.5
In a Young's double-slit experiment, the seventh dark fringe is located 0.030 m to the side of the central bright fringe on a flat screen, which is 1.0 m away from the slits. The separation between the slits is 1.5...
In a Young's double-slit experiment, the seventh dark fringe is
located 0.033 m to the side of the central bright fringe on a flat
screen, which is 1.2 m away from the slits. The separation between
the slits is 1.3 × 10-4 m. What is the wavelength of the light
being used?
Seventh dark fringe ---C Central bright fringe Seventh dark fringe Double slit Screen
Red light with lambda = 664 nm is used in Young's experiment with the slits separated by a distance d = 1.20 times 10^-1 m. The screen is located at a distance from the slits given by D=2.75 m. Find the distance y on the screen between the central bright fringe and the third-order bright fringe.
In a Young's double-slit experiment, a set of parallel slits with a separation of 0.144 mm is illuminated by light having a wavelength of 590 nm and the interference pattern observed on a screen 3.50 m from the slits. (a) What is the difference in path lengths from the two slits to the location of a third order bright fringe on the screen? um (b) What is the difference in path lengths from the two slits to the location of...
