Homework Answers

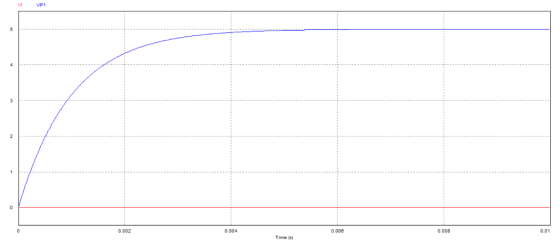

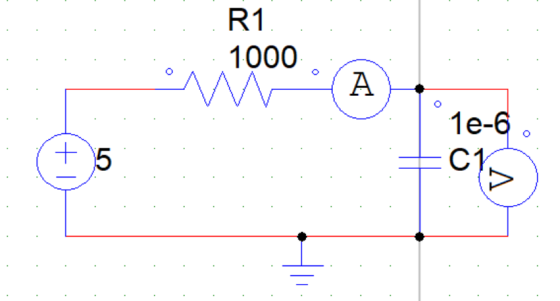

draw the above circuit in any simulation software with the help of libraray.
voltage source is dc and value of its magnitude=5v
resistor and capacitors with there respective values 1000 ohm and 1e-6 farad
the value of cuurent i is zero, because in steady state th ecapacitor wil work as open circuit, hence no current flows in open circuit.
queries are welcome!
Add Answer to:

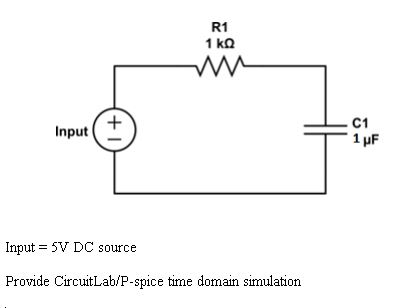

R1 C1 Input Input 5V DC source Provide CircuitLab/P-spice time domain simulation
