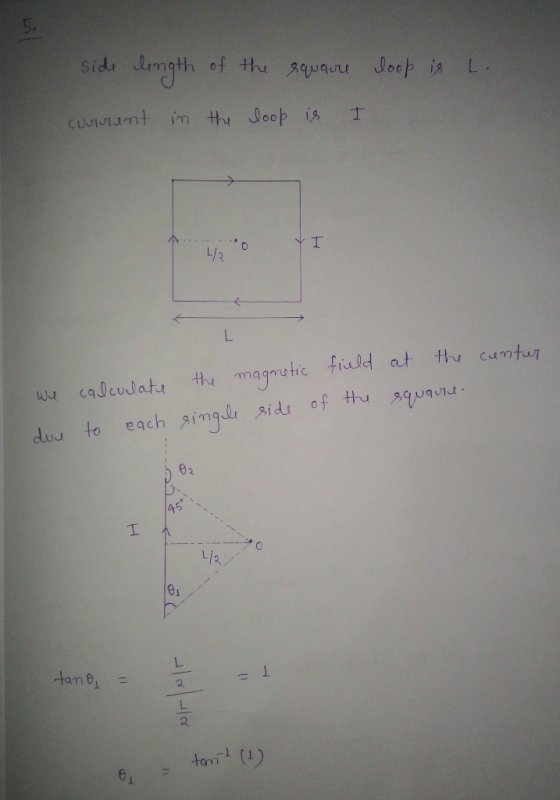

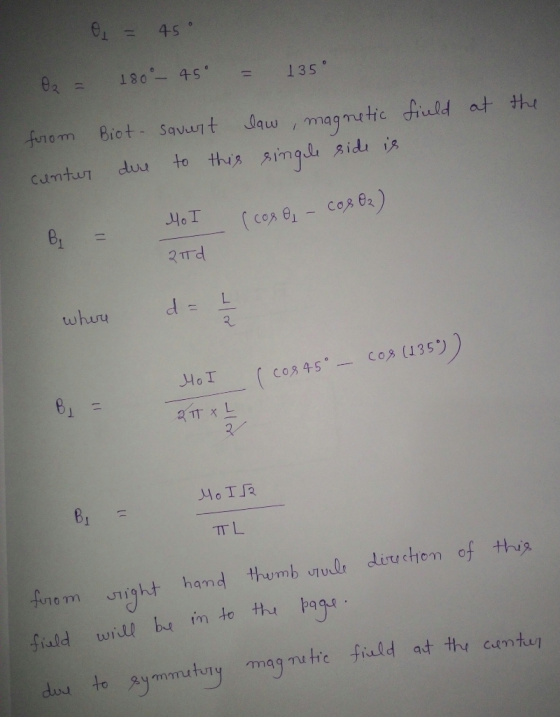

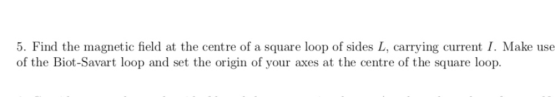

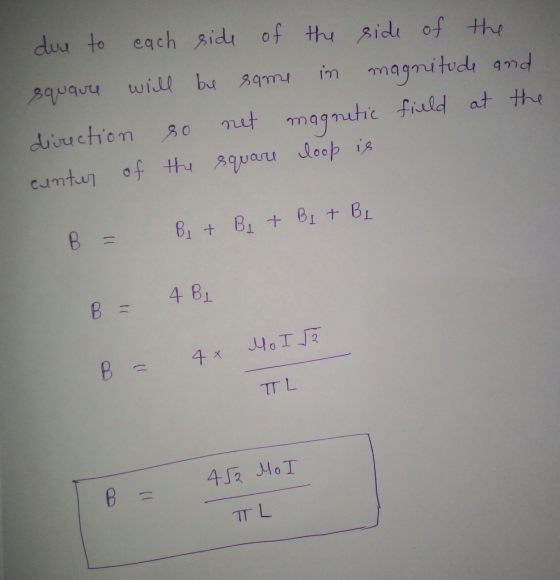

5. Find the magnetic field at the centre of a square loop of sides L, carrying...
Using the law of Biot and Savart, prove that the magnetic field generated by a loop...
Using the law of Biot and Savart, prove that the magnetic field generated by a loop of radius a carrying a current I at a point on the axis of the loop at a distance from the centre is В 2(12 + а?)3/2 Hint: Consider a generic element of length dl. Use the law of Biot and Savart for this element. How is the magnetic field generated by this element oriented? Consider an opposite element of same length. How is...
please make sure to fill in the blanks (a) A conducting loop in the shape of...
please make sure to fill in the blanks
(a) A conducting loop in the shape of a square of edge length l = 0.310 m carries a current I = 10.5 A as in the figure below. Calculate the magnitude and direction of the magnetic field at the center of the square. (b) If this conductor is reshaped to form a circular loop and carries the same current, what is the value of the magnetic field at the center? Part...
topic : magnetic field Rectangular loop = 1. A square loop has 25 turns and sides...
topic : magnetic field
Rectangular loop = 1. A square loop has 25 turns and sides of a 2 cm and b 5 cm. There is an external magnetic field of 0.3 T, parallel to the plane of the loop and the shorter sides, and perpendicular to the longer sides. Find: a. The net force on the loop. b. The net torque on the loop. current (1)= 8A
Circular Loops - CL-1 A circular wire of radius R carries a current I as shown to the right. dl2 to determine a) Use the Biot-Savart law dB the direction of dB1, the magnetic field produced at the...
Circular Loops - CL-1 A circular wire of radius R carries a current I as shown to the right. dl2 to determine a) Use the Biot-Savart law dB the direction of dB1, the magnetic field produced at the origin by ring element dli shown on the figure. Draw a figure like the one given and show on your figure dh and the unit vector State the direction of dB1 in terms of the coordinate axes. b) Use the Biot-Savart law...
3. (a) Use Biot-Savart Law to find the magnetic field of wire, along the z-axis, carrying...
3. (a) Use Biot-Savart Law to find the magnetic field of wire, along the z-axis, carrying a current I (in direction), at a point P a distance r from the wire. Do this for both a finite wire (21 <2<z2), and an infinite wire (-0<z< too). (6) Use the result of part (a) to evaluate the net magnetic field of the wires shown at point P (0,0,2). [15] z P (0,0,2) 22 di 0 B (0,2,0) tec у P(x,y) A...
3. This question concerns the Biot-Savart law. (a) Give the meaning of each term in the...
3. This question concerns the Biot-Savart law. (a) Give the meaning of each term in the equation and describe how the equation is used to calculate a magnetic field strength. (b) Consider a rectangular loop of wire; the long side is length a and the short side length b. Referring to the derivation of the field for an infinite wire obtain the field strength B for a single wire of finite length at a distance L from the centre of...
Find the magnetic field at the centre of a circular loop of radius R, which carries...
Find the magnetic field at the centre of a circular loop of radius R, which carries a steady current I. Use your result to calculate the magnetic field that the electron produces at the position of the nucleus in a hydrogen atom with the smallest Bohr orbit radius 0.529 Angstroms. Pretend the motion of the electron is classical.
Problem 3 (5000) Biot-Savart Law: The law states that the magnetic field at a point P...
Problem 3 (5000) Biot-Savart Law: The law states that the magnetic field at a point P due to a length element ds carrying a steady current / located at i away is given by dR - Holds xi _4.1 ds xi 40 p² 403 Question: Derive the Biot-Savart Law by using the vector magnetic potential A (2000). Then, find B at the center of the loop which is an 8(cm) x 6(cm) rectangular conducting loop. The loop lies in the...
A square wire loop with 2.00m sides is perpendicular to a uniform magnetic field as shown...
A square wire loop with 2.00m sides is perpendicular
to a uniform magnetic field as shown in the figure. The loop
contains an ideal battery with emf=20.0V. If the magnitude of the
field varies with time according to B=0.0420-0.870t , with B in
teslas and t in seconds, what are the:
A. Net emf in the circuit (show your work and explain
your answer)
B. And the direction of the (net) current around the
loop? (shoe your work and explain...
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin to x along the x-axis. Use the Biot- Savart Law to determi...
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin to x along the x-axis. Use the Biot- Savart Law to determine the magnetic flux density at the point indicated in the figure. (хо.yo)
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin...
Using the law of Biot and Savart, prove that the magnetic field generated by a loop of radius a carrying a current I at a point on the axis of the loop at a distance from the centre is В 2(12 + а?)3/2 Hint: Consider a generic element of length dl. Use the law of Biot and Savart for this element. How is the magnetic field generated by this element oriented? Consider an opposite element of same length. How is...
please make sure to fill in the blanks
(a) A conducting loop in the shape of a square of edge length l = 0.310 m carries a current I = 10.5 A as in the figure below. Calculate the magnitude and direction of the magnetic field at the center of the square. (b) If this conductor is reshaped to form a circular loop and carries the same current, what is the value of the magnetic field at the center? Part...
topic : magnetic field
Rectangular loop = 1. A square loop has 25 turns and sides of a 2 cm and b 5 cm. There is an external magnetic field of 0.3 T, parallel to the plane of the loop and the shorter sides, and perpendicular to the longer sides. Find: a. The net force on the loop. b. The net torque on the loop. current (1)= 8A
Circular Loops - CL-1 A circular wire of radius R carries a current I as shown to the right. dl2 to determine a) Use the Biot-Savart law dB the direction of dB1, the magnetic field produced at the origin by ring element dli shown on the figure. Draw a figure like the one given and show on your figure dh and the unit vector State the direction of dB1 in terms of the coordinate axes. b) Use the Biot-Savart law...
3. (a) Use Biot-Savart Law to find the magnetic field of wire, along the z-axis, carrying a current I (in direction), at a point P a distance r from the wire. Do this for both a finite wire (21 <2<z2), and an infinite wire (-0<z< too). (6) Use the result of part (a) to evaluate the net magnetic field of the wires shown at point P (0,0,2). [15] z P (0,0,2) 22 di 0 B (0,2,0) tec у P(x,y) A...
3. This question concerns the Biot-Savart law. (a) Give the meaning of each term in the equation and describe how the equation is used to calculate a magnetic field strength. (b) Consider a rectangular loop of wire; the long side is length a and the short side length b. Referring to the derivation of the field for an infinite wire obtain the field strength B for a single wire of finite length at a distance L from the centre of...
Find the magnetic field at the centre of a circular loop of radius R, which carries a steady current I. Use your result to calculate the magnetic field that the electron produces at the position of the nucleus in a hydrogen atom with the smallest Bohr orbit radius 0.529 Angstroms. Pretend the motion of the electron is classical.
Problem 3 (5000) Biot-Savart Law: The law states that the magnetic field at a point P due to a length element ds carrying a steady current / located at i away is given by dR - Holds xi _4.1 ds xi 40 p² 403 Question: Derive the Biot-Savart Law by using the vector magnetic potential A (2000). Then, find B at the center of the loop which is an 8(cm) x 6(cm) rectangular conducting loop. The loop lies in the...
A square wire loop with 2.00m sides is perpendicular
to a uniform magnetic field as shown in the figure. The loop
contains an ideal battery with emf=20.0V. If the magnitude of the
field varies with time according to B=0.0420-0.870t , with B in
teslas and t in seconds, what are the:
A. Net emf in the circuit (show your work and explain
your answer)
B. And the direction of the (net) current around the
loop? (shoe your work and explain...
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin to x along the x-axis. Use the Biot- Savart Law to determine the magnetic flux density at the point indicated in the figure. (хо.yo)
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin...
