The unit of the slope is
( H/m^2) last option.
I am ?% sure of the answer. LPleas dear thumpsup for the answer. Thank you.
Add Answer to:

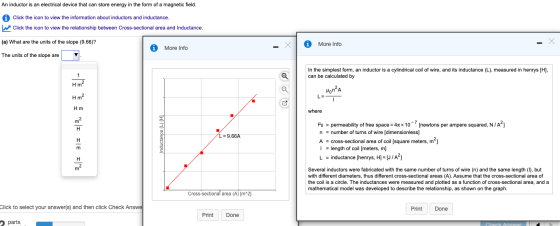

An inductor is an electrical device that can store energy in the form of a magnetic...
An inductor in the form of a solenoid contains 420 turns, is 16 cm in length...
An inductor in the form of a solenoid contains 420 turns, is 16 cm in length and has a cross- sectional area of 3cm^2. What uniform rate of decrease of current through the inductor would induce an emf of 175 mu V? What is the self-inductance of the coil?
The two coils A and B wound coaxially on an insulating cylinder. It will be evident...
The two coils A and B wound coaxially on an insulating cylinder. It will be evident that the fluxes produced by a current i through the two coils are in the same direction, and the coils are said to be cumulatively coupled. If the direction of the current in B relative to that in A is reverse, then coils are said to be differential coupling. Suppose A and B to have self- inductances LA and LB henrys respectively and a...
A solenoid used in magnetic resonance in wound from a niobium-titanium superconducting wire 2.0 mm
Self Inductance 1. A solenoid used in magnetic resonance in wound from a niobium-titanium superconducting wire 2.0 mm separated by an insulating layer of negligible thickness. magnetic resonance imaging is 2.4 m long and 95 cm in diameter. It is inium superconducting wire 2.0 mm in diameter, with adjacent turns seperated by an insulating of negligible thickness.What is the self-inductance of the MRI solenoid? ( Ans: 0.53 H) 2. A current of 5.0 amp's is flowing in a 2.0-H inductor. The current...
ID: 3. (8 marks) Given a shell-type single-phase transformer with a with a relative magnetic permeability...
ID: 3. (8 marks) Given a shell-type single-phase transformer with a with a relative magnetic permeability y 5000, cross sectional area A ะะ 25 cm 2,N\": 100, N2 1000, and a side length L - 20cm, and g 1mm, determine the following 2 (stating all assumptions and neglecting saturation unless otherwise specified) a) (3 morts) The self-inductance of coll 1 (Ln® λι /l.) ub 25 e ( mork) The mutval Inductances between coll 1 and 2 o ( mork) Calculate...
2. The magnetic circuit of Fig. 1 consists of rings of magnetic material in a stack...
2. The magnetic circuit of Fig. 1 consists of rings of magnetic material in a stack of height h. The rings have inner radius Ri and outer radius Ro. Assume that the iron is of infinite permeability (μ → x) and neglect the effects of magnetic leakage and fringing Ri N turns For Ri-3.2 cm, Roー4.1 cm, ћ-1.8 cm, g = 0.15 cm, N-72 turns, calculate a. The mean core length le and the core corss-sectional area Ac. b. The...
[Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the...
[Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the below figure. The cross-sectional area of the core is A. = 20 cm?, the mean length of the core is l. =80 cm, and the length of the airgap is 0.06 cm. The number of turns on the coil is 200. The relative permeability of the core can be assumed to be constant and equal to 2000. The fringing effect causes a 6% increase...
Hello, I have three questions on Induction Effects. Thanks in advance for your assistance. Q1.) Consider...
Hello, I have three questions on Induction Effects. Thanks in advance for your assistance. Q1.) Consider the inductor in the context of an energy storage device. The electric-power industry would like to find efficient ways to store surplus energy generated during low-demand hours to help meet customer requirements during high-demand hours. Perhaps superconducting coils can be used. How much energy, in kWh, could be stored in a 310 H inductor carrying a current of 370 A ? Q2.) The electric-power...
Problem 5: A 5 cm long wire is in a uniform magnetic field of 4T, so...
Problem 5: A 5 cm long wire is in a uniform magnetic field of 4T, so that current in the wire is perpendicular to the magnetic field. The wire is connected to a 10 ohm resistor in series, so that the resistance of the wire is negligible. The wire and resister are then connected in series to a charged 1500mF capacitor at 50 kV. A: What is the current through the wire as function of time, with t-0 being when...
Magnetic Circuits y Part A - Calculate reluctances Learning Goal: To understand how magnetic structures can...
Magnetic Circuits y Part A - Calculate reluctances Learning Goal: To understand how magnetic structures can be analyzed by drawing an equivalent circuit, and to use the equivalent circuit to calculate magnetic fluxes and coll currents. When analyzing magnetic structures, the geometry is often complex enough that using the fundamental rules can be very difficult without numerical methods. However, there are approximate methods that are often sufficient for engineering calculations. When the magnetic field is mostly contained within cores of...
please help asap ,I'll rate MAGNETISATION CURVES 1.6 1.6 ded 1.4 1.4 1.2 -1.2 -1.0 Belchalk...
please help asap ,I'll rate
MAGNETISATION CURVES 1.6 1.6 ded 1.4 1.4 1.2 -1.2 -1.0 Belchalk steel Magnetic flux density, B, Tesla 0.8 0.8 l'niversity of the Witwatersrand, Johanaburg Mohool of Electrical Information Engineering 0.6 -0.6 0.4 0.4 0.2 0.2 200 400 600 1400 1600 1800 2000 800 1000 1200 Magnetic field Intensity, H, A/m JF2001 Question 2 of 15 1 Points Click to see additional instructions If Bc = 1.0 T for silicon steel, then Hc = A-t/m. [Select...
An inductor in the form of a solenoid contains 420 turns, is 16 cm in length and has a cross- sectional area of 3cm^2. What uniform rate of decrease of current through the inductor would induce an emf of 175 mu V? What is the self-inductance of the coil?
The two coils A and B wound coaxially on an insulating cylinder. It will be evident that the fluxes produced by a current i through the two coils are in the same direction, and the coils are said to be cumulatively coupled. If the direction of the current in B relative to that in A is reverse, then coils are said to be differential coupling. Suppose A and B to have self- inductances LA and LB henrys respectively and a...
ID: 3. (8 marks) Given a shell-type single-phase transformer with a with a relative magnetic permeability y 5000, cross sectional area A ะะ 25 cm 2,N\": 100, N2 1000, and a side length L - 20cm, and g 1mm, determine the following 2 (stating all assumptions and neglecting saturation unless otherwise specified) a) (3 morts) The self-inductance of coll 1 (Ln® λι /l.) ub 25 e ( mork) The mutval Inductances between coll 1 and 2 o ( mork) Calculate...
2. The magnetic circuit of Fig. 1 consists of rings of magnetic material in a stack of height h. The rings have inner radius Ri and outer radius Ro. Assume that the iron is of infinite permeability (μ → x) and neglect the effects of magnetic leakage and fringing Ri N turns For Ri-3.2 cm, Roー4.1 cm, ћ-1.8 cm, g = 0.15 cm, N-72 turns, calculate a. The mean core length le and the core corss-sectional area Ac. b. The...
[Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the below figure. The cross-sectional area of the core is A. = 20 cm?, the mean length of the core is l. =80 cm, and the length of the airgap is 0.06 cm. The number of turns on the coil is 200. The relative permeability of the core can be assumed to be constant and equal to 2000. The fringing effect causes a 6% increase...
Problem 5: A 5 cm long wire is in a uniform magnetic field of 4T, so that current in the wire is perpendicular to the magnetic field. The wire is connected to a 10 ohm resistor in series, so that the resistance of the wire is negligible. The wire and resister are then connected in series to a charged 1500mF capacitor at 50 kV. A: What is the current through the wire as function of time, with t-0 being when...
Magnetic Circuits y Part A - Calculate reluctances Learning Goal: To understand how magnetic structures can be analyzed by drawing an equivalent circuit, and to use the equivalent circuit to calculate magnetic fluxes and coll currents. When analyzing magnetic structures, the geometry is often complex enough that using the fundamental rules can be very difficult without numerical methods. However, there are approximate methods that are often sufficient for engineering calculations. When the magnetic field is mostly contained within cores of...
please help asap ,I'll rate
MAGNETISATION CURVES 1.6 1.6 ded 1.4 1.4 1.2 -1.2 -1.0 Belchalk steel Magnetic flux density, B, Tesla 0.8 0.8 l'niversity of the Witwatersrand, Johanaburg Mohool of Electrical Information Engineering 0.6 -0.6 0.4 0.4 0.2 0.2 200 400 600 1400 1600 1800 2000 800 1000 1200 Magnetic field Intensity, H, A/m JF2001 Question 2 of 15 1 Points Click to see additional instructions If Bc = 1.0 T for silicon steel, then Hc = A-t/m. [Select...
