Question
Please show the steps

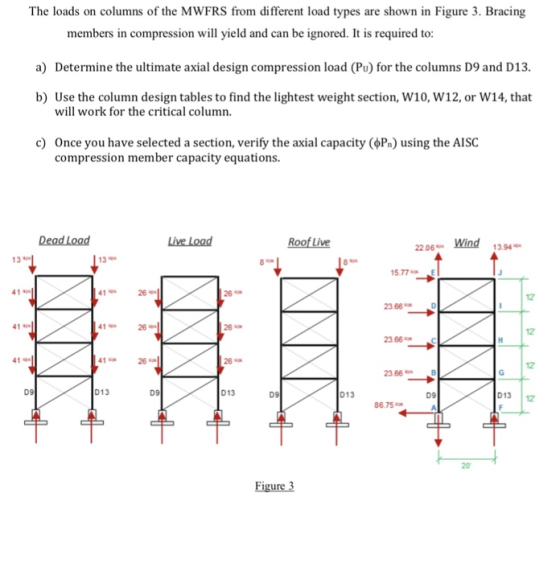

The loads on columns of the MWFRS from different load types are shown in Figure 3. Bracing members in compression will yield and can be ignored. It is required to a) Determine the ultimate axial design compression load (Pu) for the columns D9 and D13. b) Use the column design tables to find the lightest weight section, W10, W12, or W14, that will work for the critical column. c) Once you have selected a section, verify the axial capacity (ф%) using the AISC compression member capacity equations. Live Load Roof Live 22 06 13.94 13 13 577E 41 26 26 12 23 66 D 41 41 26 26* 12 23.66 41 26 26 12 23.66B D13 D13 D13 D13 12 86.75 20 Figure 3
0 0
Add a comment Improve this question Transcribed image text
Know the answer?

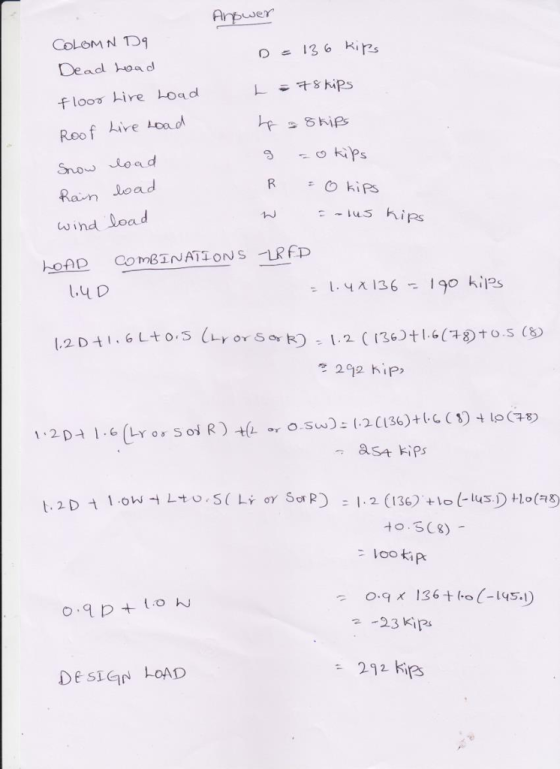

Add Answer to:
