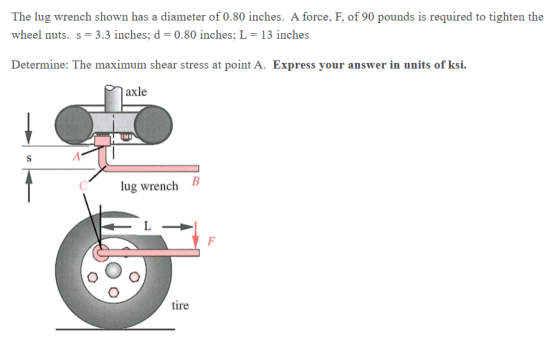

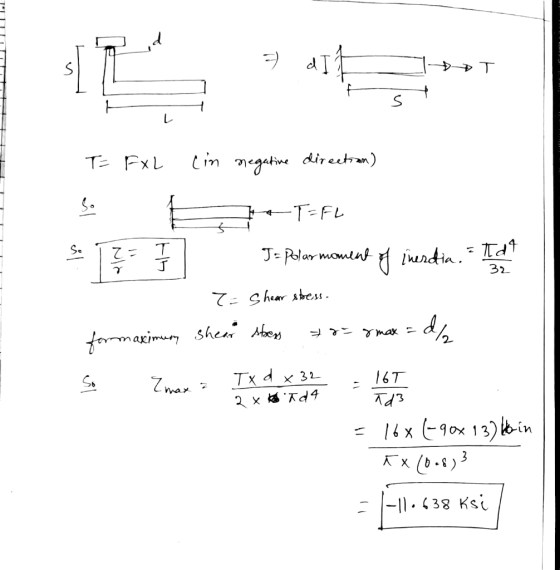

The lug wrench shown has a diameter of 0.80 inches. A force, F, of 90 pounds...
HW05 roblem 4.53 The lug nut on the wheel of the automobile is to be removed using the wrench. The cheater pi...
HW05 roblem 4.53 The lug nut on the wheel of the automobile is to be removed using the wrench. The cheater pipe AB is slipped over the handle of the wrench and a force of F-31 N can bo applied at any point and in any direction on the assembly. (Figure 1) Previous Answers Correct Part C gure 1 of 1 Dotermine the greatest possible magnitude of the moment of the force about the z axis Express your answer to...
The dimensions for the W 21x62 beam cross section (shown below) are in inches: tf =...
The dimensions for the W 21x62 beam cross section (shown below)
are in inches: tf = .615, tw = .4,
bf = 8.24, d = 21. What is the maximum transverse shear
stress on the beam cross section if the shear force acting on it is
5.2 kip?
0.706 ksi
0.25 ksi
0.365 ksi
1.023 ksi
Point E у tw 15 kips 1 bf Point F
A beam is loaded by a shear force V. The beam cross-section is shown below. The...
A beam is loaded by a shear force V. The beam cross-section is
shown below. The moment of inertia of the cross-section is 347.1
in4. The centroid of the cross-section is 6.25 inches
from the base. Determine:
a) the shear stress at point A.
b) the shear stress at point B.
c) the maximum shear stress in the cross-section.
V = 50 (kips)
The maximum shear stress at point A is _____(ksi)
The maximum shear stress at point B is...
A L-Shaped solid bar of 50-mm diameter is subjected to a 13 kN force as shown below
A L-Shaped solid bar of 50-mm diameter is subjected to a 13 kN force as shown below. At point H (a)Determine the state of stresses and show the results on a stress-element. (b)Determine the Principal stresses, the principal planes and the maximum shear stress
The chromium-vanadium tyre wrench (d=15 mm at A) shown has a yield stress of 370 MPa....
The chromium-vanadium tyre wrench (d=15 mm at A) shown has a yield stress of 370 MPa. Considering a safety factor of 2 based on maximum tensile stress at the point A of the wrench which is at its surface; F 30 cm 5 cm А 1-a) When tightening a nut on tyre, fhe allowable force F applicable to the wrench is N. 1-b) Draw an element for point A indicating the state of stress. 1-C) The orientation maximum (principal) stress...
Chapter 15, Supplemental Question 152 A 2.5-in.-diameter solid aluminum post is subjected to a horizontal force of Px = 8.8 kips, a vertical force of Py = 19.3 kips, and a concentrated torque of T = 4...
Chapter 15, Supplemental
Question 152 A 2.5-in.-diameter solid aluminum post is subjected to
a horizontal force of Px = 8.8 kips, a vertical force of Py = 19.3
kips, and a concentrated torque of T = 4.2 kip-ft, acting in the
directions shown. Assume L = 3 in. The yield strength of the
aluminum is 49 ksi, and a minimum factor of safety of FSmin = 1.67
is required by specification. Consider points H and K, and
determine whether the...
A 2.4 n diameter solid aluminum post is subjected to a horizontal force of P 9.5...
A 2.4 n diameter solid aluminum post is subjected to a horizontal force of P 9.5 kips, a vertical force o P 23.1 k ps, and a concentrated torque of T 4.5 kip- acting in the directions shown. Assume L 4 n. The yield strength of the aluminum s σΥ 72 ksi, and a minimum factar of safety of FSin 1.87 is required by specificatian. Consider paints H and K, and determine whether the aluminum post satisfies thae specifications according...
Question 6 O out of 12.5 points The bar has a diameter of 1.8 in. If...
Question 6 O out of 12.5 points The bar has a diameter of 1.8 in. If it is subjected to the loadings shown (P = 299 kip, T = 36.9 kip-ft, L1 = 1.38 ft, and L2 = 1.09 ft, determine the shear stress (in ksi) at point B. Note: Your answer should include requested units and be to 3 decimal places. у 30° P Selected Answer: 3 [None Given] Correct Answer: 386.688 + 2% (ksi) Question 7 O out...
The dimensions for the W 21x62 beam cross section (shown below) are in inches: tf =...
The
dimensions for the W 21x62 beam cross section (shown below) are in
inches: tf = .615, tw = .4, bf =
8.24, d = 21. What is the maximum transverse shear stress on the
beam cross section if the shear force acting on it is 5.2 kip?
Point E у tw 15 kips 1 bf Point F
Problem 1: A shaft, with a diameter of 43 mm, is shown below. On the right-hand side at location ...
Problem 1: A shaft, with a diameter of 43 mm, is shown below. On the right-hand side at location D a wheel has a force F of 4824N applied. The diameter of this wheel is 150 mm. The torque produced by F is transmitted through the entire shaft to location A where the torque is reacted. There are no other constraints at location A. Bearings, are located at B and C, and provide radial constraint. The bearing at B also...
HW05 roblem 4.53 The lug nut on the wheel of the automobile is to be removed using the wrench. The cheater pipe AB is slipped over the handle of the wrench and a force of F-31 N can bo applied at any point and in any direction on the assembly. (Figure 1) Previous Answers Correct Part C gure 1 of 1 Dotermine the greatest possible magnitude of the moment of the force about the z axis Express your answer to...
The dimensions for the W 21x62 beam cross section (shown below)
are in inches: tf = .615, tw = .4,
bf = 8.24, d = 21. What is the maximum transverse shear
stress on the beam cross section if the shear force acting on it is
5.2 kip?
0.706 ksi
0.25 ksi
0.365 ksi
1.023 ksi
Point E у tw 15 kips 1 bf Point F
A beam is loaded by a shear force V. The beam cross-section is
shown below. The moment of inertia of the cross-section is 347.1
in4. The centroid of the cross-section is 6.25 inches
from the base. Determine:
a) the shear stress at point A.
b) the shear stress at point B.
c) the maximum shear stress in the cross-section.
V = 50 (kips)
The maximum shear stress at point A is _____(ksi)
The maximum shear stress at point B is...
The chromium-vanadium tyre wrench (d=15 mm at A) shown has a yield stress of 370 MPa. Considering a safety factor of 2 based on maximum tensile stress at the point A of the wrench which is at its surface; F 30 cm 5 cm А 1-a) When tightening a nut on tyre, fhe allowable force F applicable to the wrench is N. 1-b) Draw an element for point A indicating the state of stress. 1-C) The orientation maximum (principal) stress...
Chapter 15, Supplemental
Question 152 A 2.5-in.-diameter solid aluminum post is subjected to
a horizontal force of Px = 8.8 kips, a vertical force of Py = 19.3
kips, and a concentrated torque of T = 4.2 kip-ft, acting in the
directions shown. Assume L = 3 in. The yield strength of the
aluminum is 49 ksi, and a minimum factor of safety of FSmin = 1.67
is required by specification. Consider points H and K, and
determine whether the...
A 2.4 n diameter solid aluminum post is subjected to a horizontal force of P 9.5 kips, a vertical force o P 23.1 k ps, and a concentrated torque of T 4.5 kip- acting in the directions shown. Assume L 4 n. The yield strength of the aluminum s σΥ 72 ksi, and a minimum factar of safety of FSin 1.87 is required by specificatian. Consider paints H and K, and determine whether the aluminum post satisfies thae specifications according...
Question 6 O out of 12.5 points The bar has a diameter of 1.8 in. If it is subjected to the loadings shown (P = 299 kip, T = 36.9 kip-ft, L1 = 1.38 ft, and L2 = 1.09 ft, determine the shear stress (in ksi) at point B. Note: Your answer should include requested units and be to 3 decimal places. у 30° P Selected Answer: 3 [None Given] Correct Answer: 386.688 + 2% (ksi) Question 7 O out...
The
dimensions for the W 21x62 beam cross section (shown below) are in
inches: tf = .615, tw = .4, bf =
8.24, d = 21. What is the maximum transverse shear stress on the
beam cross section if the shear force acting on it is 5.2 kip?
Point E у tw 15 kips 1 bf Point F
Problem 1: A shaft, with a diameter of 43 mm, is shown below. On the right-hand side at location D a wheel has a force F of 4824N applied. The diameter of this wheel is 150 mm. The torque produced by F is transmitted through the entire shaft to location A where the torque is reacted. There are no other constraints at location A. Bearings, are located at B and C, and provide radial constraint. The bearing at B also...
