Homework Answers

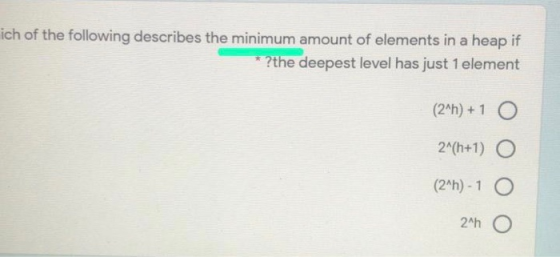

1.) The minimum of no.of elements in a tree is 2h where h is the height of the tree.
This can be seen with an example. If only root node exits in tree , h=0, and it is true.
When h=1, root and one more element at the deepest level, i.e., 21=2.

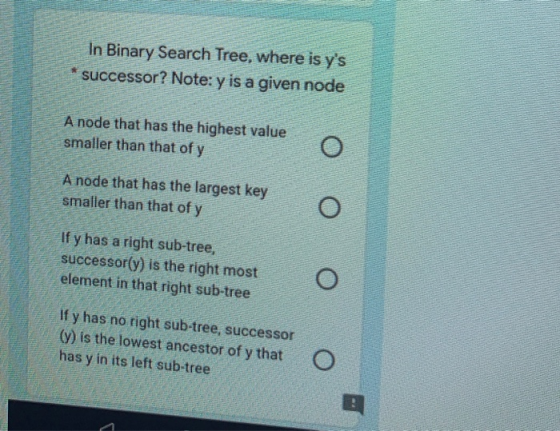

2.) The word successor means 'a person who comes just after the current holder', and thus a node that comes after the node 'y' will be
(a) greater than 'y',
(b) thus it will reside in right subtree of 'y';
Now, the first 2 options in question are wrong as they conflict with (a) statement given above and third is also wrong as if it resides in the rightmost node on the right subtree of 'y' it will not be the immediate node after 'y', it should be the leftmost node in the right subtree.
4th option is correct as if 'y' will not have a right subtree then the successor will be the lowest ancestor of 'y' and 'y' will reside in left subtree of it's successor.

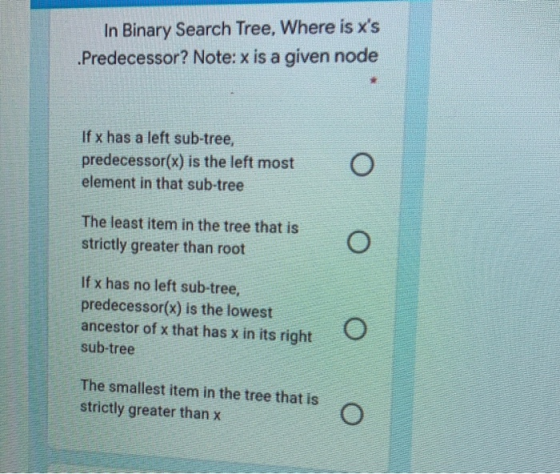

3.) Similarly, the word predecessor means 'a person who comes just before the current holder', and thus a node that comes before the node 'x' will be
(a) smaller than 'x',
(b) thus it will reside in left subtree of 'x';
Now, the 2nd and 4th option in question are wrong as they conflict with (a) statement given above and first option is also wrong as if predecessor is the leftmost node on the left subtree of 'x' it will not be the immediate node before 'x', it should be the rightmost node in the left subtree.
3rd option is correct as if 'x' will not have a left subtree then the predecessor will be the lowest ancestor of 'x' and 'x' will reside in right subtree of it's predecessor.
