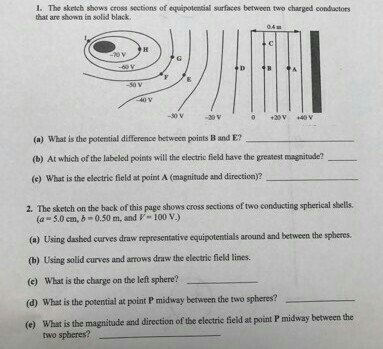

1· The sketch shows cross sections of equipotential surfaces between two charged conductors that are shown...
04 m 5. The sketch below shows cross sections of equipotential surfaces between two charged conductors...
04 m 5. The sketch below shows cross sections of equipotential surfaces between two charged conductors that are shown in solid grey. Various points on the equipotential surfaces near the conductors are labeled A, B, CI. 70 V -60 V At which of the labeled points will the electric field have the greatest magnitude? A) G -30V -20V B) I C) A D) H E) D At which of the labeled points will an electron have the greatest potential energy?...
200 v Problem 6(5.oopoints) The sketch shows cross sections of equipotential surfaces between two charged conductors....
200 v Problem 6(5.oopoints) The sketch shows cross sections of equipotential surfaces between two charged conductors. Points on the equipotential surfaces near the conductors are labeled A, B, C,, H. What is the magnitude of the potential difference between points A and Gi A) 200 V B) 100 V C) 400 V D) 700V +20D 200 -doo D141 148
The diagram shows the cross sections of equipotential surfaces at various distancelx from point 0 in...
The diagram shows the cross sections of equipotential surfaces at various distancelx from point 0 in an electric field. V (V) 60 55 50 45 x (cm) 20 40 6080 (a) (b) (c) (d) (e) Explain whether the electric field is uniform. Find the magnitude of the electric field strength. What is the direction of the electric field? What is the force acting on an electron in the electric field? An electron moves from the equipotential surface of 55 V...
The dashed lines in the diagram represent cross-sections of equipotential surfaces drawn in 1-V increments.
The dashed lines in the diagram represent cross-sections of equipotential surfaces drawn in 1-V increments.What is the work WAB done
by the electric force to move a 1-C charge
from A to B?What is the work WAD done
by the electric force to move a 1-C charge
from A to D?The magnitude of the electric field at point C
isa) greater than the magnitude of the electric field at point B.b) less than the magnitude of the electric field at point B.c) equal...
The dashed lines in the diagram represent cross sections of equipotential surfaces drawn in 1 Vincrements....
The dashed lines in the diagram represent cross sections of
equipotential surfaces drawn in 1 Vincrements. (Figure 1)
Part A
What is the work WAB done by the electric force to move
a 1 Ccharge from A to B?
Part B
What is the work WAD done by the electric force to move
a 1 Ccharge from A to D?
Part C
The magnitude of the electric field at point C is
*greater than the magnitude of the electric field...
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines...
The drawing shows a cross-sectional view of two spherical
equipotential surfaces and two electric field lines that are
perpendicular to these surfaces. When an electron moves from point
A to point B (against the electric field), the
electric force does +3.2 x 10-19 J of work. What are the
electric potential differences (a) VB -
VA, (b) VC -
VB, and (c) VC -
VA?
Electric field lines Equipotential surfaces Cross-sectional view) O (a) o V, (b) 0 V, (c)...
The figure below shows three sets of cross sections of equipotential surfaces; all three cover the...
The
figure below shows three sets of cross sections of equipotential
surfaces; all three cover the same size region of space.
(a) Rank the arrangements according to the magnitude of the
electric field present in the region, greatest first (use only the
symbols > or =,for example1=2>3).
(b) In which is the electric field directed down the
page?
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines...
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines that are perpendicular to these surfaces. When a proton with charge e moves from point B to point A the electric force does a positive work W (measured in joule). What is the electric potential differential V_B - V_A? W e W/e 0 Equal to V_C - V_B -W/e For the same problem above, what is the electric potential difference V_C - V_B? W...
Question 8 The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric...
Question 8 The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines that are perpendicular to these surfaces. When an electron moves from point A to point B (against the electric field), the electric force does +3.2 x 10-19 J of work. What are the electric potential differences (a) VB- VA, (b) VC - VB, and (c) VC - VA?
04 m 5. The sketch below shows cross sections of equipotential surfaces between two charged conductors that are shown in solid grey. Various points on the equipotential surfaces near the conductors are labeled A, B, CI. 70 V -60 V At which of the labeled points will the electric field have the greatest magnitude? A) G -30V -20V B) I C) A D) H E) D At which of the labeled points will an electron have the greatest potential energy?...
200 v Problem 6(5.oopoints) The sketch shows cross sections of equipotential surfaces between two charged conductors. Points on the equipotential surfaces near the conductors are labeled A, B, C,, H. What is the magnitude of the potential difference between points A and Gi A) 200 V B) 100 V C) 400 V D) 700V +20D 200 -doo D141 148
The diagram shows the cross sections of equipotential surfaces at various distancelx from point 0 in an electric field. V (V) 60 55 50 45 x (cm) 20 40 6080 (a) (b) (c) (d) (e) Explain whether the electric field is uniform. Find the magnitude of the electric field strength. What is the direction of the electric field? What is the force acting on an electron in the electric field? An electron moves from the equipotential surface of 55 V...
The dashed lines in the diagram represent cross-sections of equipotential surfaces drawn in 1-V increments.What is the work WAB done
by the electric force to move a 1-C charge
from A to B?What is the work WAD done
by the electric force to move a 1-C charge
from A to D?The magnitude of the electric field at point C
isa) greater than the magnitude of the electric field at point B.b) less than the magnitude of the electric field at point B.c) equal...
The dashed lines in the diagram represent cross sections of
equipotential surfaces drawn in 1 Vincrements. (Figure 1)
Part A
What is the work WAB done by the electric force to move
a 1 Ccharge from A to B?
Part B
What is the work WAD done by the electric force to move
a 1 Ccharge from A to D?
Part C
The magnitude of the electric field at point C is
*greater than the magnitude of the electric field...
The drawing shows a cross-sectional view of two spherical
equipotential surfaces and two electric field lines that are
perpendicular to these surfaces. When an electron moves from point
A to point B (against the electric field), the
electric force does +3.2 x 10-19 J of work. What are the
electric potential differences (a) VB -
VA, (b) VC -
VB, and (c) VC -
VA?
Electric field lines Equipotential surfaces Cross-sectional view) O (a) o V, (b) 0 V, (c)...
The
figure below shows three sets of cross sections of equipotential
surfaces; all three cover the same size region of space.
(a) Rank the arrangements according to the magnitude of the
electric field present in the region, greatest first (use only the
symbols > or =,for example1=2>3).
(b) In which is the electric field directed down the
page?
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines that are perpendicular to these surfaces. When a proton with charge e moves from point B to point A the electric force does a positive work W (measured in joule). What is the electric potential differential V_B - V_A? W e W/e 0 Equal to V_C - V_B -W/e For the same problem above, what is the electric potential difference V_C - V_B? W...
