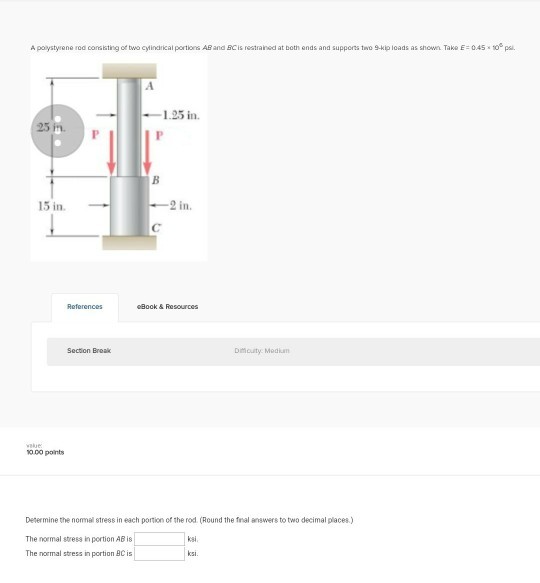

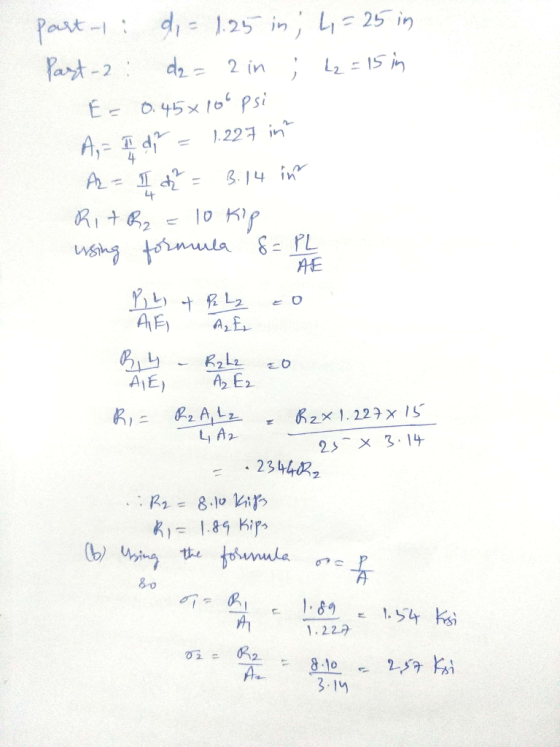

A polystyrene roa conakiting of two cylindrical portons AB and BCis restrained at both ends and...
3. A rod consisting of two cylindrical portions AB and BC is restrained at both ends,...
3. A rod consisting of two cylindrical portions AB and BC is restrained at both ends, as shown in figure Q3 below. Portion AB is made of brass (E 105 Gpa, and ь-20.9 x 10-6 per °C) and portion BC is made out of aluminum (Eb 72 Gpa, and otb 23.9 x 106 per °C). The rod is initially unstressed at room temperature of 20 °C. If the temperature changes to 62 °C, find: a) the resulting normal stress in...
A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portion...
A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portion AB is made of steel (Es = 200 GPa and αs = 11.7 × 10-6/°C) and portion BC is made of brass (Eb = 105 GPa and αb = 20.9 × 10-6/°C). Knowing that the rod is initially unstressed, determine the compressive force induced in ABC when there is a temperature rise of 70°C. (Round the final answer to one decimal place.)
A rod consist of two cylindrical portions AB and BC is restrained at both ends. Portion...
A rod consist of two cylindrical portions AB and BC is restrained at both ends. Portion AB is made of steel with the following properties (Es 200 GPa, as 11.7 x 10 6/C) and portion BC is made of brass with the following properties (E, 105 GPa, a 20.9 x 10 6/°C). Determine the compressive force induced in ABC when there is a temperature rise of 50°C, knowing that the rod is initially unstressed 2. 30-mm diameter 250 mm
A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portion...
A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portion AB is made of steel (E, -200 GPa 17 c)and portion BC is made of brass (E,-105 GPa, b-20.9 x 10-6/C) Knowing that the rod is initially unstressed, determine the compressive force induced inABC when there is a temperature rise of 53 °C 30-mm diameter 200 mm 56-mm diameter 380 mm
I need help I got the wrong answers and don't understand why. A polystyrene rod consisting...
I need help I got the wrong
answers and don't understand why.
A polystyrene rod consisting of two cylindrical portions AB and BC is restrained at both ends and supports two 10-kip loads as shown. Take E= 0.45 x 106 psi. - 1.25 in 25 i - 2 in References eBook & Resources Section Break Difficulty: Medium Problem 09.032 - Statically indeterminate structures (constant temperature), composite rods with both ends restrained (D) value: 10.00 points Problem 09.032.a - Reaction at...
2. Two solid cylindrical rods AB and BC are wớided together at B and loaded as...
2. Two solid cylindrical rods AB and BC are wớided together at B and loaded as shown. Knowing that the average normal stress must not exceed 180x 10ºPa in rod AB and 155 x10 Pa in rod BC, determine the smallest allowable diameter of AB and BC. O IN 250 SOEN 1
Problem #6 (30 points): Two solid cylindrical rods are joined at point B Rod AB is...
Problem #6 (30 points): Two solid cylindrical rods are joined at point B Rod AB is made of steel (E, 30 x 10s psi), with a length of 40 in and a diameter of 2 in. Rod BC is made of alumin loaded with axial forces at two points, as shown below. The total elongation of ABC is limited to 0.05 in, and the normal stresses in AB and BC should not exceed 35 ksi and 10 ksi, respectively. You...
The two cylindrical rod segments are fixed to the rigid walls such that there is a...
The two cylindrical rod segments are fixed to the rigid walls such that there is a gap of 0.01 in. between them when T_1 = 60 degree F. What larger temperature T_2 is required in order to just close the gap? Each rod has a diameter of 1.25 in. Determine the average normal stress in each rod if T_2 = 300 degree F. Take alpha_cu = 13(10^-6)/degree F, E_al = 10(10^3) ksi, (sigma_Y)_al = 40 ksi, alpha_cu = 9.4 (10^-6)/degree...
305 mm The assembly shown is restrained at both ends, knowing that the assembly is initially...
305 mm The assembly shown is restrained at both ends, knowing that the assembly is initially unstressed, find: a) The normal stresses induced in portion AB and BC by a temperature rise of 18°C b) The corresponding deflection at point B A C T Se mers) st of = X AT K = (1.78100) (18)/886) = 31.75-mm diameter steed B of = QATL = (20,9x109/18) = Sp. = 5.668x10* 5.15 mm diameter → 87 = dp = y(24. = (a...
3. A rod consisting of two cylindrical portions AB and BC is restrained at both ends, as shown in figure Q3 below. Portion AB is made of brass (E 105 Gpa, and ь-20.9 x 10-6 per °C) and portion BC is made out of aluminum (Eb 72 Gpa, and otb 23.9 x 106 per °C). The rod is initially unstressed at room temperature of 20 °C. If the temperature changes to 62 °C, find: a) the resulting normal stress in...
A rod consist of two cylindrical portions AB and BC is restrained at both ends. Portion AB is made of steel with the following properties (Es 200 GPa, as 11.7 x 10 6/C) and portion BC is made of brass with the following properties (E, 105 GPa, a 20.9 x 10 6/°C). Determine the compressive force induced in ABC when there is a temperature rise of 50°C, knowing that the rod is initially unstressed 2. 30-mm diameter 250 mm
A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portion AB is made of steel (E, -200 GPa 17 c)and portion BC is made of brass (E,-105 GPa, b-20.9 x 10-6/C) Knowing that the rod is initially unstressed, determine the compressive force induced inABC when there is a temperature rise of 53 °C 30-mm diameter 200 mm 56-mm diameter 380 mm
I need help I got the wrong
answers and don't understand why.
A polystyrene rod consisting of two cylindrical portions AB and BC is restrained at both ends and supports two 10-kip loads as shown. Take E= 0.45 x 106 psi. - 1.25 in 25 i - 2 in References eBook & Resources Section Break Difficulty: Medium Problem 09.032 - Statically indeterminate structures (constant temperature), composite rods with both ends restrained (D) value: 10.00 points Problem 09.032.a - Reaction at...
2. Two solid cylindrical rods AB and BC are wớided together at B and loaded as shown. Knowing that the average normal stress must not exceed 180x 10ºPa in rod AB and 155 x10 Pa in rod BC, determine the smallest allowable diameter of AB and BC. O IN 250 SOEN 1
Problem #6 (30 points): Two solid cylindrical rods are joined at point B Rod AB is made of steel (E, 30 x 10s psi), with a length of 40 in and a diameter of 2 in. Rod BC is made of alumin loaded with axial forces at two points, as shown below. The total elongation of ABC is limited to 0.05 in, and the normal stresses in AB and BC should not exceed 35 ksi and 10 ksi, respectively. You...
The two cylindrical rod segments are fixed to the rigid walls such that there is a gap of 0.01 in. between them when T_1 = 60 degree F. What larger temperature T_2 is required in order to just close the gap? Each rod has a diameter of 1.25 in. Determine the average normal stress in each rod if T_2 = 300 degree F. Take alpha_cu = 13(10^-6)/degree F, E_al = 10(10^3) ksi, (sigma_Y)_al = 40 ksi, alpha_cu = 9.4 (10^-6)/degree...
305 mm The assembly shown is restrained at both ends, knowing that the assembly is initially unstressed, find: a) The normal stresses induced in portion AB and BC by a temperature rise of 18°C b) The corresponding deflection at point B A C T Se mers) st of = X AT K = (1.78100) (18)/886) = 31.75-mm diameter steed B of = QATL = (20,9x109/18) = Sp. = 5.668x10* 5.15 mm diameter → 87 = dp = y(24. = (a...
