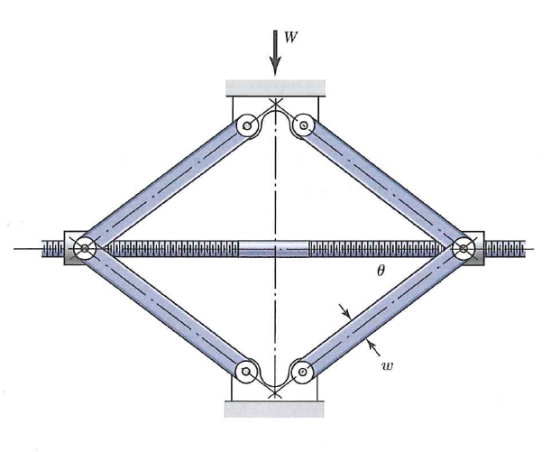

The figure shows the schematic of a vehicular jack which
is to be designed to support a load, W. The links are to be made of
A36 structural square tubing, w = 20 x 20 x 3 mm. Each link is 400
mm between the centers of the pins, l. Ignore pin holes and stress
concentrations. Use nd = 2.

(60 pts.) When θ = 20°, determine the greatest allowable load W that can be applied to the jack so that it does not buckle.
(10 pts.) Which buckling equation is to be used?
(20 pts.) Determine the greatest load that can be applied before it yields.
(10 pts.) What is the failure mode (buckling or yielding)?

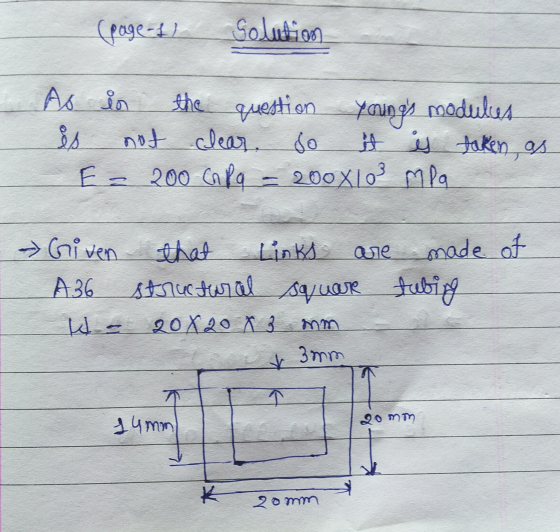

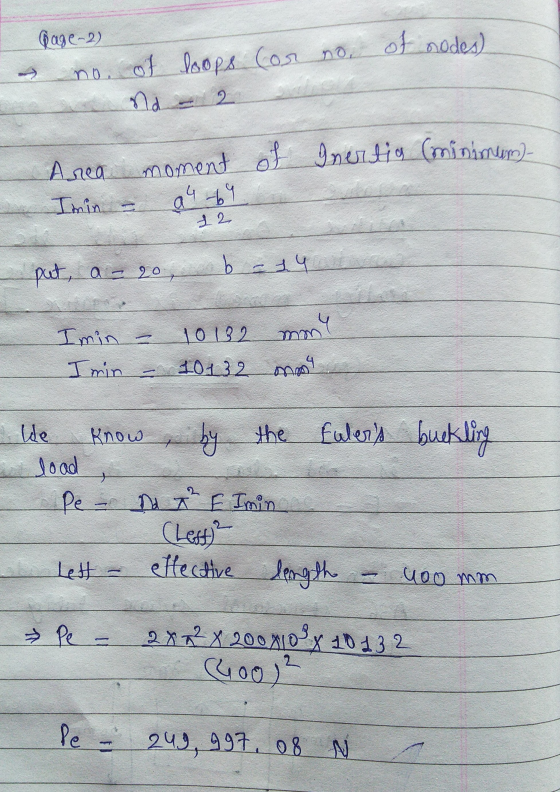

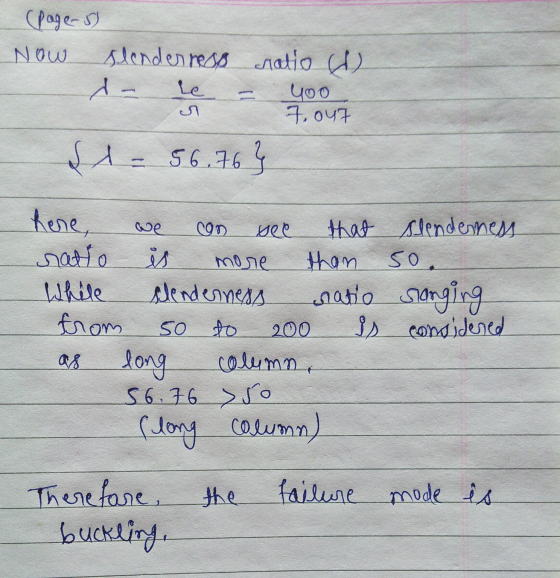

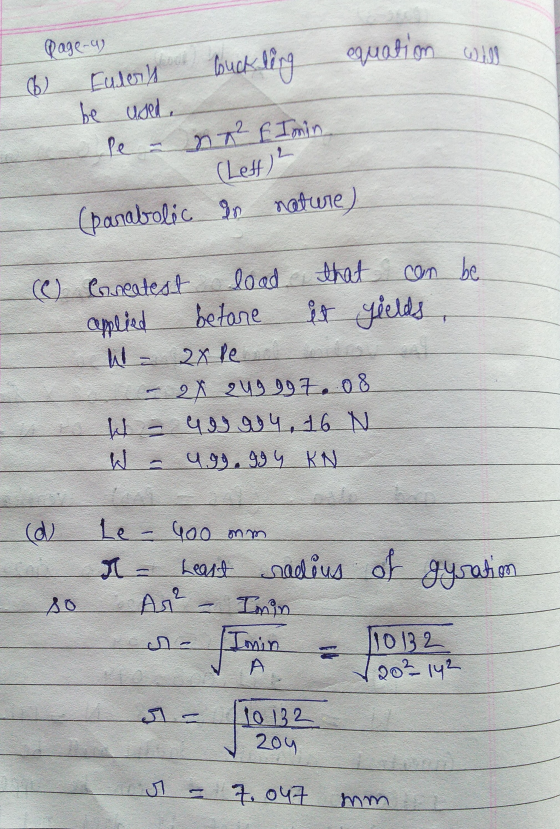

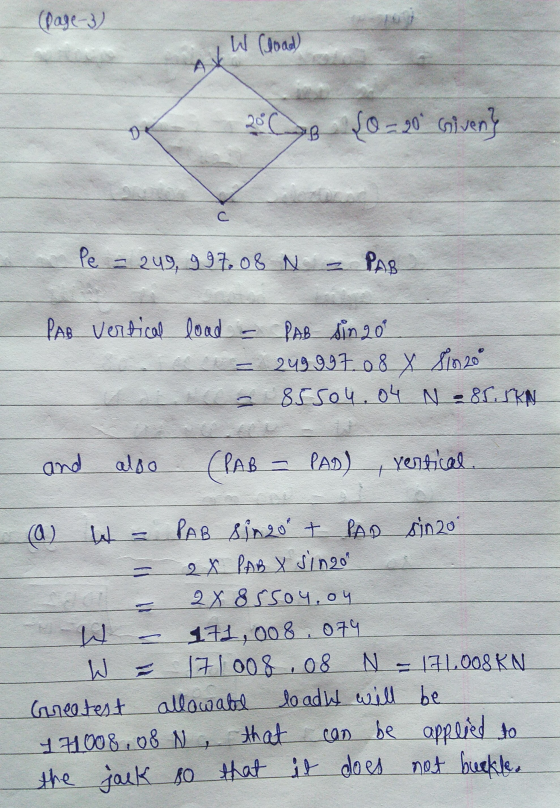

The figure shows the schematic of a vehicular jack which is to be designed to support...
The figure shows the schematic of a vehicular jack which is to be designed to support a load, W. The links are to be made of A36 structural square tubing, w -40 x 40 x 5 mm. Each link is 300 mm between the centers of the pins, /. Assume each member is centrically loaded Ignore pin holes and stress concentrations. Use nd- 2 a) When 0-70°, determine the greatest allowable load W that can be applied to the jack...
The figure shows a schematic drawing of a vehicular jack that is to be designed to support a maximum mass of 260 kg based on the use of a design factor nd 3.5. The opposite-handed threads on the two ends of the screw are cut to allow the link angle ? to vary from 17 to 75 The links are to be machined from AISI 1010 hot-rolled steel bars. Each of the four links is to consist of two bars,...
