Homework Answers
Answer would be b) Output of pulse generator.
Pulse code modulation is a technique which converts analog waves into pulses.
In the screnshot provided, high waves is represented using high pulses [which means 1] and the low waves are represented using low pulses [Zero]. Hence, B is the correct answer.
Add Answer to:

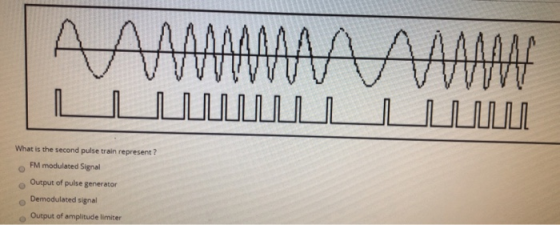

MAN What is the second pulse train represent? FM modulated Signal Output of pulse generator Demodulated...
A Pulse Amplitude Modulated (PAM) signal is generated by naturally sampling a triangular wave of amplitude 3 volt peak and frequency 1 KHz as shown in Figure 4 by a pulse train of frequency 4 kHz wit...
A Pulse Amplitude Modulated (PAM) signal is generated by naturally sampling a triangular wave of amplitude 3 volt peak and frequency 1 KHz as shown in Figure 4 by a pulse train of frequency 4 kHz with a pulse width of 0.025 ms. Draw the sampled waveform Message signal 3V 1 ms tms 3V-- (9 Marks) Figure 4
A Pulse Amplitude Modulated (PAM) signal is generated by naturally sampling a triangular wave of amplitude 3 volt peak and frequency 1...
Select the correct statement regarding the difference between the FM modulated signal waveform and the AM...
Select the correct statement regarding the difference between
the FM modulated signal waveform and the AM modulated signal
waveform.
a. The FM signal wave changes frequency according to the message
wave m(t). The "peak" amplitude of the FM signal, Ac=5, remains
constant.
b. There is no difference between the FM and AM signal waves
because they are both modulated by the same message wave, m(t) =
Amcos(2πfmt)
c. The AM signal wave frequency changes with the message wave m(t)
while...
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amp...
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amplitude spectrum, SPM(f), is shown below: Amplitude spectrum of the frequency modulated signal 2 -2 5000 4000 3000 2000 -1000 1000 2000 3000 4000 5000 frequency f [Hz] a) What is the carrier frequency fe? b) What is the message frequency fm c) What is the FM modulation index Bf? Is it a narrowband or a wideband signal? d) Using Carson's rule, estimate the transmission...
8 Assume PLL is used for the demodulation of FM signal. Under the condition of ideal...

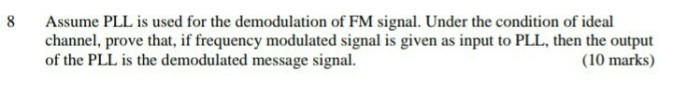

8 Assume PLL is used for the demodulation of FM signal. Under the condition of ideal channel, prove that, if frequency modulated signal is given as input to PLL, then the output of the PLL is the demodulated message signal. (10 marks)
What is the range resolution of a 12us pulse radar with and without an FM modulated...
What is the range resolution of a 12us pulse radar with and without an FM modulated chirp pulse that has a 100MHz bandwidth?
A radar has a linear FM modulated pulse from 34GHZ to 35GHz. a. What is the...
A radar has a linear FM modulated pulse from 34GHZ to 35GHz. a. What is the range resolution? The radar has a 1ms transmit pulse width and uses stretch processing in the receive mixer. The receiver local oscillator ramp starts at a frequency of 33GHz at same time the transmit pulse is sent. b. What is the IF frequency of a target at 4 km?
P1 - A function generator can be angle modulated with various waveforms. With a carrier signal be...
Please show all work with the answer. Thank you!
P1 - A function generator can be angle modulated with various waveforms. With a carrier signal being a 300-Hz sinusoid before modulation is applied, the output modulated is T1-e-2t Determine (a) instantaneous signal phase and (b) instantaneous signal frequency (radian and cyclic). (c) Sketch the forms of the instantaneous signal phase and frequency.
P1 - A function generator can be angle modulated with various waveforms. With a carrier signal being a...
1a. What will be the outcome for the following? pinMode(9,OUTPUT); analogWrite(9,63.5); a. A pulse width modulated...
1a. What will be the outcome for the following? pinMode(9,OUTPUT); analogWrite(9,63.5); a. A pulse width modulated generated signal for 63.5 milliseconds b. A square wave generated signal with output voltage of 6.3V c. A square wave signal of 1.25V is generated on channel 9 d. None
Consider an FM system where the modulated signal is
Consider an FM system where the modulated signal is s(t) = 10 cos (2πfct + 2πkf∫0t m(τ)dτ)where the carrier frequency is fc = 100 MHz. The modulation signal is m(t) = 10 cos(2πfmt), where fm = 3 kHz. (a) Assuming that kf = 10, what is the approximate bandwidth of s(t)? (b) Find the instantaneous frequency fi(t) of s(t). What are the maximum and minimum values of fi(t) ?
A baseband signal s(t) = 10 6 ( 3000 77t +30), is wideband FM modulated (tem(t))...
A baseband signal s(t) = 10 6 ( 3000 77t +30), is wideband FM modulated (tem(t)) with Carrier amplitude of 50 volt. The index of modulation is B = 4. (a) show the simplified equation of fift) (b) Determine wideband FM power using Bessel foc. table (C) Calculate Kf in the fu(t) equation
A Pulse Amplitude Modulated (PAM) signal is generated by naturally sampling a triangular wave of amplitude 3 volt peak and frequency 1 KHz as shown in Figure 4 by a pulse train of frequency 4 kHz with a pulse width of 0.025 ms. Draw the sampled waveform Message signal 3V 1 ms tms 3V-- (9 Marks) Figure 4
A Pulse Amplitude Modulated (PAM) signal is generated by naturally sampling a triangular wave of amplitude 3 volt peak and frequency 1...
Select the correct statement regarding the difference between
the FM modulated signal waveform and the AM modulated signal
waveform.
a. The FM signal wave changes frequency according to the message
wave m(t). The "peak" amplitude of the FM signal, Ac=5, remains
constant.
b. There is no difference between the FM and AM signal waves
because they are both modulated by the same message wave, m(t) =
Amcos(2πfmt)
c. The AM signal wave frequency changes with the message wave m(t)
while...
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amplitude spectrum, SPM(f), is shown below: Amplitude spectrum of the frequency modulated signal 2 -2 5000 4000 3000 2000 -1000 1000 2000 3000 4000 5000 frequency f [Hz] a) What is the carrier frequency fe? b) What is the message frequency fm c) What is the FM modulation index Bf? Is it a narrowband or a wideband signal? d) Using Carson's rule, estimate the transmission...
8 Assume PLL is used for the demodulation of FM signal. Under the condition of ideal channel, prove that, if frequency modulated signal is given as input to PLL, then the output of the PLL is the demodulated message signal. (10 marks)
Please show all work with the answer. Thank you!
P1 - A function generator can be angle modulated with various waveforms. With a carrier signal being a 300-Hz sinusoid before modulation is applied, the output modulated is T1-e-2t Determine (a) instantaneous signal phase and (b) instantaneous signal frequency (radian and cyclic). (c) Sketch the forms of the instantaneous signal phase and frequency.
P1 - A function generator can be angle modulated with various waveforms. With a carrier signal being a...
A baseband signal s(t) = 10 6 ( 3000 77t +30), is wideband FM modulated (tem(t)) with Carrier amplitude of 50 volt. The index of modulation is B = 4. (a) show the simplified equation of fift) (b) Determine wideband FM power using Bessel foc. table (C) Calculate Kf in the fu(t) equation
