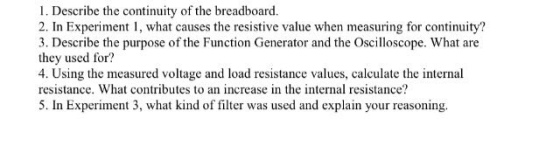

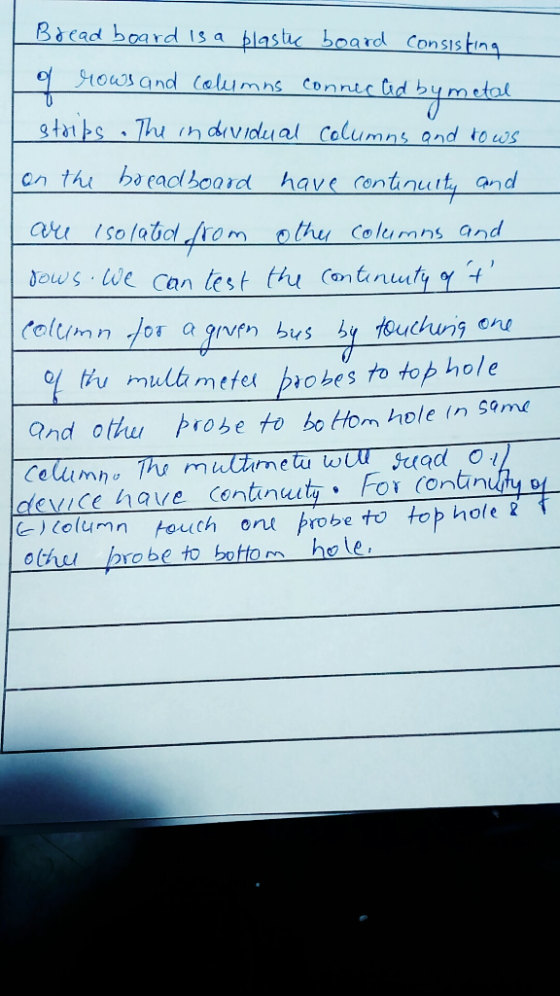

Describe the continuity of the breadboard. In Experiment 1, what causes the resistive value when measuring...
please kindly do all question please 1) A Megohmmeter is an instrument for measuring very high...
please kindly do all question please 1) A Megohmmeter is an instrument for measuring very high resistance levels. True or False 2) A ladder network is a cascaded set of series-parallel combinations that has the appearance of a ladder. True or False 3) A transistor is a series-parallel circuit comprised of three variable resistors. true or false 4) A transistor is a three terminal semiconductor electronic device that can be used for amplification and switching purposes. true or false 5) An ammeter...
1. True or False: The smaller the unit, or fraction of a unit, on the measuring device, the more precisely the device can measure 2. Compare analog and digital instrument performance 3. True or F...
1. True or False: The smaller the unit, or fraction of a unit, on the measuring device, the more precisely the device can measure 2. Compare analog and digital instrument performance 3. True or False: The absolute error of the measurement shows how large the error (or difference) is in relation to the true value, while the relative error of the measurement shows how large the error actually is. 4. The current passing through an electronic load is known to...
Course and Section cto EXPERIMENT ac series-Parallel Sinusoidal Circuits OBJECTIVES 1. Measure th...
Course and Section cto EXPERIMENT ac series-Parallel Sinusoidal Circuits OBJECTIVES 1. Measure the currents of series-parallel R-L and R-C networks using sensing resistors 2. Demonstrate the Pythagorean relationship between the currents of the networks. 3. Measure the phase angles associated with the currents of the networks. 4. Calculate the input impedance of a parallel network using measured values EQUIPMENT REQUIRED Instruments Resistors 1-10-Q, 470-Ω, l-kM (14.W) Inductors 1-10-mH Capacitors 1-0.02-pF I-DMM 1--Oscilloscope 1-Audio oscillator or function generator 1--Frequency counter (if...
QUESTIONS 1. In your own words, describe the impedance relationship in a series RL circuit. Is...
QUESTIONS 1. In your own words, describe the impedance relationship in a series RL circuit. Is this relationship proven in your experiment? Refer to your results. 2. Refer to your data in Table 21-1. How do the values of impedance calculated by Ohm's law and the impedance formula compare? Explain any discrepancies. 3. In your own words, explain the voltage relationship in a series RL circuit. Is this relationship proven in your experiment? Refer to your results. 4. How do...
Introduction to Electrical Systems and Chapter 1 1. What is voltage? A. The force that causes...
Introduction to Electrical Systems and Chapter 1 1. What is voltage? A. The force that causes a circuit to energize. B. The force that works against resistance. C. The force that pushes electrons through the circuit. D. The force that causes heating and movement in electrical equipment. 2. What can cause death when a person is electrocuted? A. The electric shock stops the lungs from working B. The electric shock stops brain functions. C. Stops the heart or creates an...
Anything would be help please help me OBJECTIVES Study the behavior of capacitors while charging Learn how changing the...
Anything would be help please help me
OBJECTIVES Study the behavior of capacitors while charging Learn how changing the values of R or C in a series RC circuit affects the charging time Learn the behavior of capacitor and inductor in a DC circuit 1. 2. 3. EQUIPMENT Breadboard, Multimeter, DC power supply, Oscilloscope, Resistor, Capacitor (values will be provided in lab) Connect the given circuit and notice how the capacitor charges Measure the voltage across the resistor, and across...
46. What is meant by the term deviation ratio? a. The ratio of the audio modulating...
46. What is meant by the term deviation ratio? a. The ratio of the audio modulating frequency to the center carrier frequency. b. The ratio of the maximum carrier frequency deviation to the highest audio modulating frequency c. The ratio of the carrier center frequency to the audio modulating frequency d. The ratio of the highest audio modulating frequency to the average audio modulating frequency. 47. What is a wave front? a. A voltage pulse in a conductor. b. A...
I am working on my Physics lab report where it was all about Direct Current Measurement...
I am working on my Physics lab report where it was all about Direct Current Measurement and Ohm’s Law. We had 5 different resistors and had to construct different circuits using a power supply, volt-ohm-milliammeter (VOM) and a digital multimeter to get measurements of resistance, voltage, and current. Nominal values of resistance and tolerance Resistor Nominal Resistance (Ohms) Tolerance (Ohms) R1 680 +/- 68 R2 1000 +/- 50 R3 1500 +/- 75 R4 4700 +/- 470 R5 10,000 +/- 500...
5. What was the purpose of the NaNO3 solution in this experiment? 6. Could a solution...
5. What was the purpose of the NaNO3 solution in this experiment? 6. Could a solution of NaCl be used instead of NaNO3? 7. What was the purpose of FeSO4 solution in this experiment? 8. Could a solution of FeCl, be used instead of FeSO4? 9. Could a solution of NaSO4 be used instead of FeSO4? 10. Calculate the standard cell potential for the spontaneous redox reaction between a Pb(s)/Pb(NO3)2(aq) half-cell and a Ag(s)/AgNO3(aq) half-cell. Which metal would be oxidized?...
answere Please mark only one of the four choices Q1. Controlling the speed of a DC motor by using a micro-controller, is what type of control? b. Digital C. Analog d. All of the above Q2. When cur...
answere
Please mark only one of the four choices Q1. Controlling the speed of a DC motor by using a micro-controller, is what type of control? b. Digital C. Analog d. All of the above Q2. When current flow is interrupted in a DC motor, which motor property causes a reverse voltage spike? a. Resistance b. Capacitance C. Inductance d. None of the above Q3. Which Arduino internal circuit is used to control motor speed? a. Digital to Analog Converter...
1. True or False: The smaller the unit, or fraction of a unit, on the measuring device, the more precisely the device can measure 2. Compare analog and digital instrument performance 3. True or False: The absolute error of the measurement shows how large the error (or difference) is in relation to the true value, while the relative error of the measurement shows how large the error actually is. 4. The current passing through an electronic load is known to...
Course and Section cto EXPERIMENT ac series-Parallel Sinusoidal Circuits OBJECTIVES 1. Measure the currents of series-parallel R-L and R-C networks using sensing resistors 2. Demonstrate the Pythagorean relationship between the currents of the networks. 3. Measure the phase angles associated with the currents of the networks. 4. Calculate the input impedance of a parallel network using measured values EQUIPMENT REQUIRED Instruments Resistors 1-10-Q, 470-Ω, l-kM (14.W) Inductors 1-10-mH Capacitors 1-0.02-pF I-DMM 1--Oscilloscope 1-Audio oscillator or function generator 1--Frequency counter (if...
QUESTIONS 1. In your own words, describe the impedance relationship in a series RL circuit. Is this relationship proven in your experiment? Refer to your results. 2. Refer to your data in Table 21-1. How do the values of impedance calculated by Ohm's law and the impedance formula compare? Explain any discrepancies. 3. In your own words, explain the voltage relationship in a series RL circuit. Is this relationship proven in your experiment? Refer to your results. 4. How do...
Introduction to Electrical Systems and Chapter 1 1. What is voltage? A. The force that causes a circuit to energize. B. The force that works against resistance. C. The force that pushes electrons through the circuit. D. The force that causes heating and movement in electrical equipment. 2. What can cause death when a person is electrocuted? A. The electric shock stops the lungs from working B. The electric shock stops brain functions. C. Stops the heart or creates an...
Anything would be help please help me
OBJECTIVES Study the behavior of capacitors while charging Learn how changing the values of R or C in a series RC circuit affects the charging time Learn the behavior of capacitor and inductor in a DC circuit 1. 2. 3. EQUIPMENT Breadboard, Multimeter, DC power supply, Oscilloscope, Resistor, Capacitor (values will be provided in lab) Connect the given circuit and notice how the capacitor charges Measure the voltage across the resistor, and across...
46. What is meant by the term deviation ratio? a. The ratio of the audio modulating frequency to the center carrier frequency. b. The ratio of the maximum carrier frequency deviation to the highest audio modulating frequency c. The ratio of the carrier center frequency to the audio modulating frequency d. The ratio of the highest audio modulating frequency to the average audio modulating frequency. 47. What is a wave front? a. A voltage pulse in a conductor. b. A...
5. What was the purpose of the NaNO3 solution in this experiment? 6. Could a solution of NaCl be used instead of NaNO3? 7. What was the purpose of FeSO4 solution in this experiment? 8. Could a solution of FeCl, be used instead of FeSO4? 9. Could a solution of NaSO4 be used instead of FeSO4? 10. Calculate the standard cell potential for the spontaneous redox reaction between a Pb(s)/Pb(NO3)2(aq) half-cell and a Ag(s)/AgNO3(aq) half-cell. Which metal would be oxidized?...
answere
Please mark only one of the four choices Q1. Controlling the speed of a DC motor by using a micro-controller, is what type of control? b. Digital C. Analog d. All of the above Q2. When current flow is interrupted in a DC motor, which motor property causes a reverse voltage spike? a. Resistance b. Capacitance C. Inductance d. None of the above Q3. Which Arduino internal circuit is used to control motor speed? a. Digital to Analog Converter...
