Member AB is supported by a cable BC and at Aby a square rod which fits...

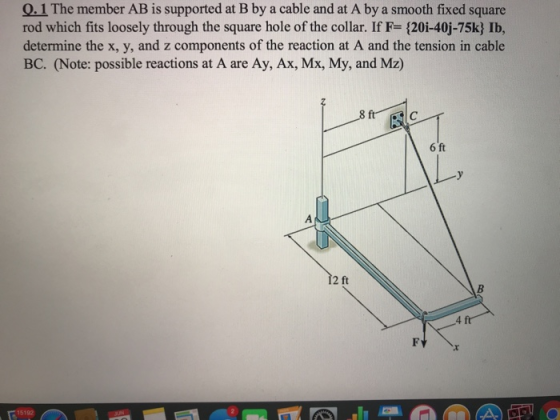

Member AB is supported by a cable BC and at Aby a square rod which fits loosely through the square hole in the collar fixed to the member as shown in (Figure 1). Suppose that F 250 N. F 390 N and the rod holds PartA Determine the components of reaction force at A using scalar notation. in equilibrium. Express your answers using three significant figures separated by comma. ?? Part B Determine the components of the moment of reaction...
Q. 3 The member is supported by a pin at A (Note: reactions at A are...
Q. 3 The member is supported by a pin at A (Note: reactions at A are Ay, Ax, Az, My, and Mz) and cable BC. If the load at D is 300 lb, determine the x, y, and z components of the reaction at A and the tension in cable BC. (Note: possible reactions at A are Ay, Ax, Az, My, and Mz). (2 points) 1 ft, 2 ft B. 2 ft 6 ft ft D
Determine the reactions at the joint A and the tension in cable BC. Joint A is...
Determine the reactions at the joint A and the tension in
cable BC. Joint A is made up of a square rod through a smooth
square hole.

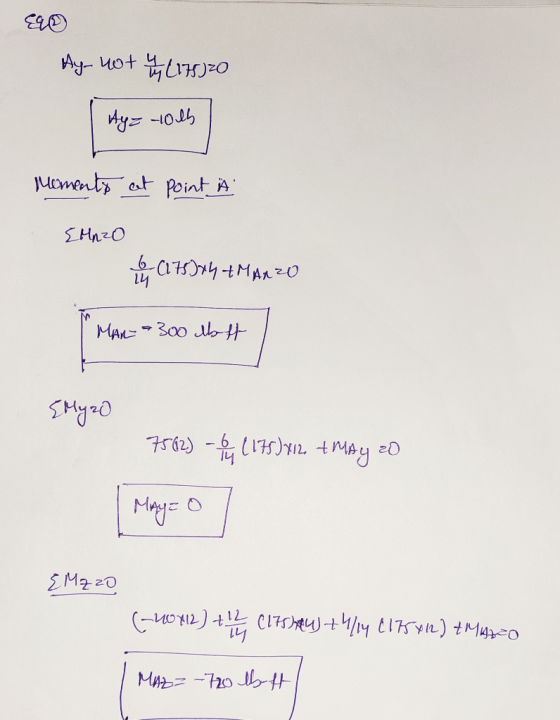

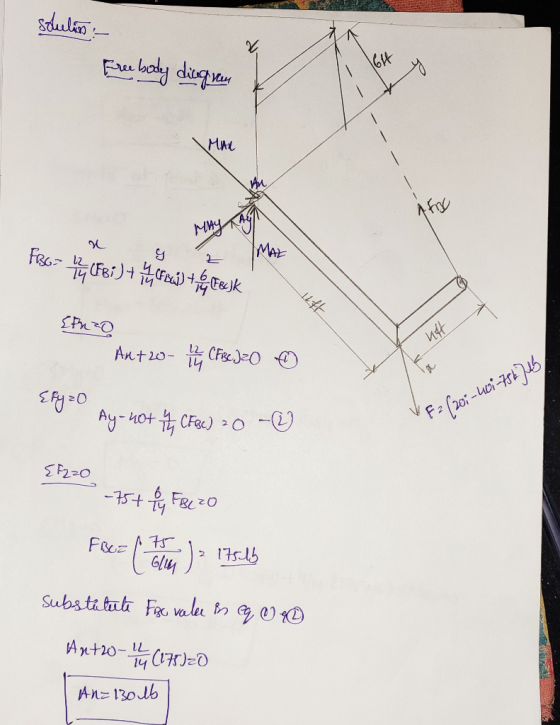

identisy of support rtactiens ion in the cable. $quart rod, Smoth squart Keyward: jont A 5 unknown (able 6 lunnown) Ax X Ay Az V MAX- 8 ft AToAM MA2-ZV GO1.57 6 ft 3 ft 2 y F= (-60i + 40j-30k) lb
The member is supported by a pin at A and cable BC. Suppose that T =...
The member is supported by a pin at A and cable BC. Suppose that T = 2.5 m and the cylinder has a mass of 35 kg. (Figure 1) Determine the tension in the cable BC Express your answer to three significant figures and include the appropriate units. O! A Thc = 1057 mo ? kN Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Figure 10f1 Part B Determine the components of reaction force at the...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine th...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine the tension in each cable. 600 mm The uniforma steel boom in Fit 22a weighs soo ib. It is supported by two cabks CE uai CD. and a ball-and socket joint at A. The cable supporting the 1000-6 dasses over a small pulley at B. Find the tension in cable CE and in cable 1 4 rt...
The J-shaped member shown in the figure(Figure 1) is supported by a cable DE and a single journal bearing with a square...
The J-shaped member shown in the figure(Figure 1) is supported
by a cable DE and a single journal bearing with a square
shaft at A. Determine the reaction forces
Ay and Az at support A
required to keep the system in equilibrium. The cylinder has a
weight WB = 5.70 lb , and F = 2.00 lb is
a vertical force applied to the member at C. The
dimensions of the member are w = 1.50 ft , l =...
Problem 1 Member BCD is supported by a pin at Cand cable AB. Determine the reaction...
Problem 1 Member BCD is supported by a pin at Cand cable AB. Determine the reaction at the pin and the force on AB 240 N DION D - 0.
The J-shaped member shown in the figure(Figure 1) is supported by a cable DE and a single journal bearing with a squa...
The J-shaped member shown in the figure(Figure 1) is supported by a
cable DE and a single journal bearing with a square shaft
at A. Determine the reaction forces Ay
and Az at support A required to keep the
system in equilibrium. The cylinder has a weight
WB = 6.00lb , and F = 1.30lb is a
vertical force applied to the member at C. The dimensions
of the member are w = 1.50ft , l = 6.00ft , and...
1. A Using "Method of Joints", determine the forces supported by the member AB, AC and...
1. A Using "Method of Joints", determine the forces supported by the member AB, AC and BC of the truss shown in the figure. State whether each memberis in tension or compression. P=8 KN. 60° 600 B 3 m
Solve for each of the problems below. 400 N/m 200 N/m 4 m 8. Determine the...
Solve for each of the problems below.
400 N/m 200 N/m 4 m 8. Determine the force in each member of the truss and state if the members are in tension or compression. (a) Use 0-0 (b) Use 030 kN 15 m 2 m 4 KN 9. A uniform rod has a length I and weight W. It is supported at its left end A by a smooth wall and at its right end by a cord of length s...
Member AB is supported by a cable BC and at Aby a square rod which fits loosely through the square hole in the collar fixed to the member as shown in (Figure 1). Suppose that F 250 N. F 390 N and the rod holds PartA Determine the components of reaction force at A using scalar notation. in equilibrium. Express your answers using three significant figures separated by comma. ?? Part B Determine the components of the moment of reaction...
Q. 3 The member is supported by a pin at A (Note: reactions at A are Ay, Ax, Az, My, and Mz) and cable BC. If the load at D is 300 lb, determine the x, y, and z components of the reaction at A and the tension in cable BC. (Note: possible reactions at A are Ay, Ax, Az, My, and Mz). (2 points) 1 ft, 2 ft B. 2 ft 6 ft ft D
Determine the reactions at the joint A and the tension in
cable BC. Joint A is made up of a square rod through a smooth
square hole.
identisy of support rtactiens ion in the cable. $quart rod, Smoth squart Keyward: jont A 5 unknown (able 6 lunnown) Ax X Ay Az V MAX- 8 ft AToAM MA2-ZV GO1.57 6 ft 3 ft 2 y F= (-60i + 40j-30k) lb
The member is supported by a pin at A and cable BC. Suppose that T = 2.5 m and the cylinder has a mass of 35 kg. (Figure 1) Determine the tension in the cable BC Express your answer to three significant figures and include the appropriate units. O! A Thc = 1057 mo ? kN Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Figure 10f1 Part B Determine the components of reaction force at the...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine the tension in each cable. 600 mm The uniforma steel boom in Fit 22a weighs soo ib. It is supported by two cabks CE uai CD. and a ball-and socket joint at A. The cable supporting the 1000-6 dasses over a small pulley at B. Find the tension in cable CE and in cable 1 4 rt...
The J-shaped member shown in the figure(Figure 1) is supported
by a cable DE and a single journal bearing with a square
shaft at A. Determine the reaction forces
Ay and Az at support A
required to keep the system in equilibrium. The cylinder has a
weight WB = 5.70 lb , and F = 2.00 lb is
a vertical force applied to the member at C. The
dimensions of the member are w = 1.50 ft , l =...
Problem 1 Member BCD is supported by a pin at Cand cable AB. Determine the reaction at the pin and the force on AB 240 N DION D - 0.
The J-shaped member shown in the figure(Figure 1) is supported by a
cable DE and a single journal bearing with a square shaft
at A. Determine the reaction forces Ay
and Az at support A required to keep the
system in equilibrium. The cylinder has a weight
WB = 6.00lb , and F = 1.30lb is a
vertical force applied to the member at C. The dimensions
of the member are w = 1.50ft , l = 6.00ft , and...
1. A Using "Method of Joints", determine the forces supported by the member AB, AC and BC of the truss shown in the figure. State whether each memberis in tension or compression. P=8 KN. 60° 600 B 3 m
Solve for each of the problems below.
400 N/m 200 N/m 4 m 8. Determine the force in each member of the truss and state if the members are in tension or compression. (a) Use 0-0 (b) Use 030 kN 15 m 2 m 4 KN 9. A uniform rod has a length I and weight W. It is supported at its left end A by a smooth wall and at its right end by a cord of length s...
