The main magnet in an MRI machine is a superconducting solenoid 2.0 m long and 33...

The main magnet in an MRI machine is a superconducting solenoid 2.0 m long and 33 cm in radius. During normal operation, the current through the windings is 81 A, and the resistance of the windings is zero. The inductance of the solenoid is 89 H.
(a) Calculate the turns per meter of the solenoid.
(b) Calculate the magnitude of the magnetic field generated by the MRI machine during normal operations.
(c) Calculate the magnetic flux through a single turn of the solenoid.
(d) Calculate the energy density of the magnetic field within the solenoid.
(e) The magnet is started by connecting the solenoid to a 20 V power supply. Determine how long it takes for the current to go from zero to 81 A.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

per unit ans: l=2m r=0.33m I=8iA L=894 [where in a) now inductance is given by L= Monzaral is number 1 * 89=42x107x n² x ax (

0 0
Add a comment
Know the answer?
Add Answer to:
The main magnet in an MRI machine is a superconducting solenoid 2.0 m long and 33...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The main magnet in an MRI machine is a superconducting solenoid 1.3 m long and 45...

    The main magnet in an MRI machine is a superconducting solenoid 1.3 m long and 45 cm in radius. During normal operation, the current through the windings is 108 A and the magnetic field strength is 1.4 T. Round your answers to the nearest whole number. (a) How many turns does the solenoid have? Your answer: turns (b) How much energy is stored in the magnetic field during normal operation? Your answer: (c) How much energy is stored if the...

  • In an MRI machine, a large magnetic field is generated by the cylindrical solenoid surrounding the...

    In an MRI machine, a large magnetic field is generated by the cylindrical solenoid surrounding the patient. If the current is 4 kA, the magnet depth is 3m and superconducting wire is 1cm wide, what is the magnetic field that the patient experiences?

  • A certain superconducting magnet in the form of a solenoid of length 0.40 m can generate...

    A certain superconducting magnet in the form of a solenoid of length 0.40 m can generate a magnetic field of 11.0 T in its core when its coils carry a current of 145 A. The windings, made of a niobium-titanium alloy, must be cooled to 4.2 K. Find the number of turns in the solenoid. turns

  • A certain superconducting magnet in the form of a solenoid of length 0.38 m can generate...

    A certain superconducting magnet in the form of a solenoid of length 0.38 m can generate a magnetic field of 1.5 T in its core when its coils carry a current of 80 A. The windings, made of a niobium-titanium alloy, must be cooled to 4.2 K. Find the number of turns in the solenoid. turns

  • A certain superconducting magnet in the form of a solenoid of length 0.36 m can generate...

    A certain superconducting magnet in the form of a solenoid of length 0.36 m can generate a magnetic field of 5.5 T in its core when its coils carry a current of 95 A. The windings, made of a niobium-titanium alloy, must be cooled to 4.2 K. Find the number of turns in the solenoid. turns

  • A certain superconducting magnet in the form of a solenoid of length 0.510 m can generate...

    A certain superconducting magnet in the form of a solenoid of length 0.510 m can generate a magnetic field of 9.50 T in its core when its coils carry a current of 85 A. Find the number of turns in the solenoid. _____ turns.

  • A solenoid used in magnetic resonance in wound from a niobium-titanium superconducting wire 2.0 mm

    Self Inductance 1. A solenoid used in magnetic resonance in wound from a niobium-titanium superconducting wire 2.0 mm separated by an insulating layer of negligible thickness. magnetic resonance imaging is 2.4 m long and 95 cm in diameter. It is inium superconducting wire 2.0 mm in diameter, with adjacent turns seperated by an insulating of negligible thickness.What is the self-inductance of the MRI solenoid? ( Ans: 0.53 H) 2. A current of 5.0 amp's is flowing in a 2.0-H inductor. The current...

  • A very large, superconducting solenoid such as one used in MRI scans, stores 1.00 MJ of...

    A very large, superconducting solenoid such as one used in MRI scans, stores 1.00 MJ of energy in its magnetic field when 120 A flows. (a) Find its self-inductance (in H) (b) If the coils "go normal," they gain resistance and start to dissipate thermal energy. What temperature (in °C) increase is produced if all the stored energy goes into heating the 1080 kg magnet, given its average specific heat is 200 J/kg.°C? OC

  • 12-11 Consider a very long solenoid of N/I turns per unit length and radius R, Such...

    12-11 Consider a very long solenoid of N/I turns per unit length and radius R, Such that the field inside is approximately uniform and the field outside is zero. Find the radial force on one turn of the winding, per unit length of circumference, from the magnetic energy. (a) Assume that the current I is maintained constant by a batterv (b) Repeat assuming that the flux remains constant and the system is isolated (with superconducting windings).

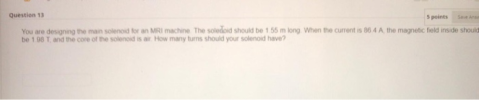

  • Question 13 5 points You are designing the main solenoid for an MRI machine The soledoid...

    Question 13 5 points You are designing the main solenoid for an MRI machine The soledoid should be 155 m long When the current is 86 4 A, the magnetic field inside should be 1 98 T, and the core of the solenoid is air. How many turns should your solenoid have?
