An isotropic material has the Lame’s constant λand shear modulus μ. The first, second and third...

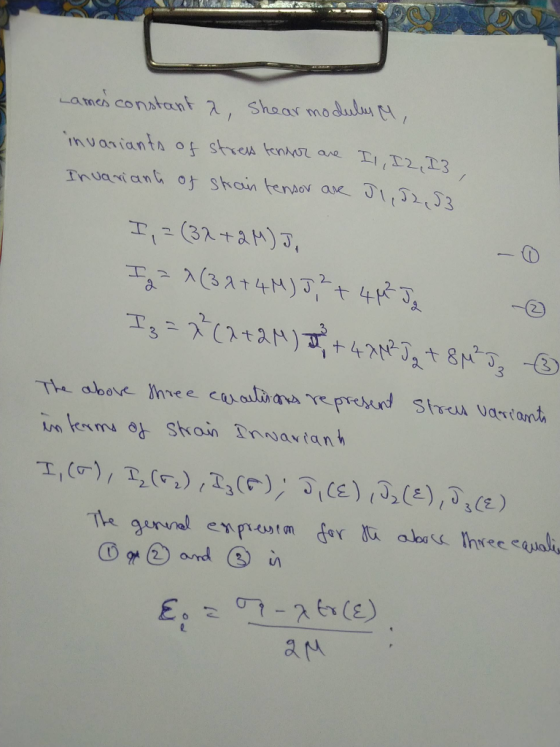

An isotropic material has the Lame’s constant λand shear modulus μ. The first, second and third invariants of a stress tensor is I1, I2, and I3. The first, second and third invariants of the strain tensor is J1, J2, and J3. Please write stress invariants in terms of strain invariants.
Homework Answers
Add Answer to:
An isotropic material has the Lame’s constant λand shear modulus
μ. The first, second and third...
