In the diagram below: The length of the beam whose mass is 100kg, is 6m, and...

Question

Question

science physics

Answer 1

Answer #1

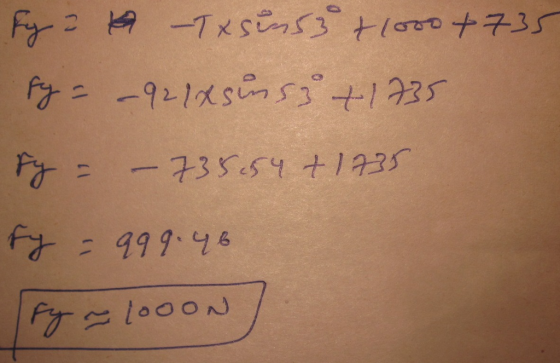

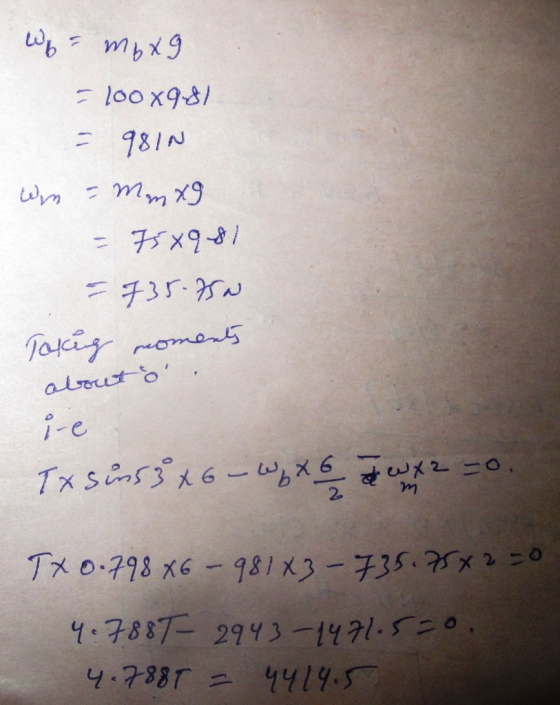

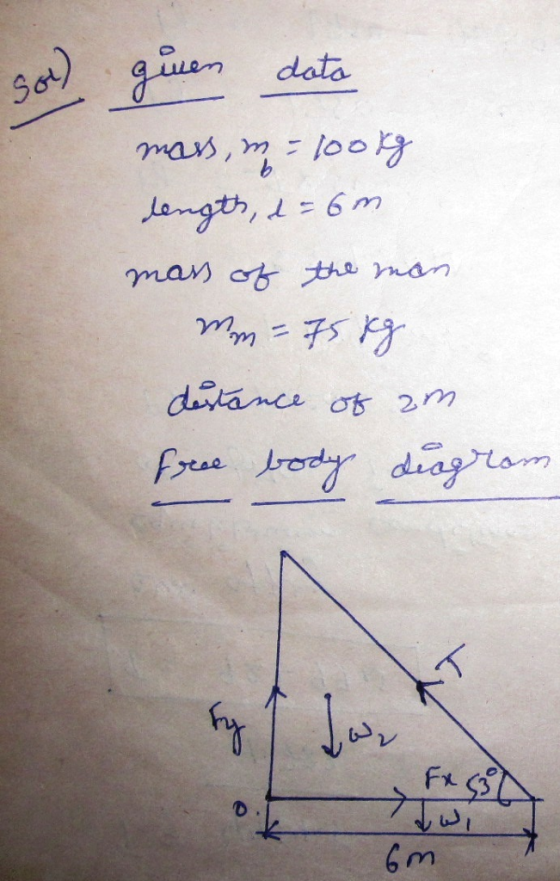

data Fx 781 AN 2- Tx o구98 XG-981 χ)-チ35.xx 7 Y 788 9 21- 99 N ans att 1013.66 N (93 t 735.25) 1716-25 ce

Answer 2

Similar Homework Help Questions

A uniform beam of mass and a length of, is attached to a wall by a...

A uniform beam of mass and a length of, is attached to a wall by a pin connection. Its far end is supported by a cable that makes an angle of with the beam. A person of weight stands a distance from the wall. Find the tension in the cable and the magnitude and direction of the force exerted by the wall on the beam.
A beam is attached to a vertical wall with a hinge. The mass of the beam...

A beam is attached to a vertical wall with a hinge. The mass of the beam is 1800 kg and it is 4 m long. A steel support wire is tied from the end of the beam to the wall, making an angle of 30° with the beam (see the figure below). 1)Calculate the tension in the support wire. Assume the beam has a uniform density. kN 2)What is the vertical component of the force exerted by the hinge on...
3) A uniform horizontal beam of length 12.0 m and a mass of 20 kg is...

3) A uniform horizontal beam of length 12.0 m and a mass of 20 kg is attached to a wall. Its far end is suspended by a cable that makes an angle of 63 degrees with the beam. A person of mass 72 kg stands a distance d = 4.0 m from the wall. Find the tension in the cable as well as the magnitude and direction of the force exerted by the wall on the beam.

As shown below, a beam of mass M = 34 kg and length L = 6.8...

As shown below, a beam of mass M = 34 kg and length L = 6.8 m is attached to a vertical wall by a hinge and to a horizontal ceiling by a cable. The angle between the beam and the wall is theta = 75 degree, the angle between the cable and the ceiling is phi = 58 degree, and the cable is attached to the beam at a point which is a distance s = 2.2 m from...
A uniform beam of length 20.0 m and mass 50.0 kg is attached to a wall...

A uniform beam of length 20.0 m and mass 50.0 kg is attached to a wall at one end and free to pivot at this point. The beam is held horizontal by a cable attached to the midpoint of the beam and to a point on the wall 5.77 m above the pivot point. The angle between the beam and the cable is 30 degrees. A 20 .0 kg mass hangs from a second cable which is attached to the...
The figure shows a uniform, horizontal beam (length = 10.0 m, mass = 30.0 kg) that...

The figure shows a uniform, horizontal beam (length = 10.0 m, mass = 30.0 kg) that is held by a horizontal pin (pivoted at the wall), with its far end supported by a cable that makes an angle of 51 degree with the horizontal. A person of mass M stands 3.00 magnitude of 454 N. (a) Calculate the mass M of the person standing on the beam? (b) What are the horizontal and vertical components of the force the pin...

A uniform beam of length 10.0 m and mass 50.0 kg is attached to a wall...

A uniform beam of length 10.0 m and mass 50.0 kg is attached to a wall at one end and free to pivot at this point. The beam is held horizontal by a cable attached to the far end of the beam and to a point on the wall 5.77 m above the pivot point. The angle between the beam and the cable is 30 degrees. A. What is the tension in the cable? B. What force is exerted by...
a sign of mass 20.0 kg is supported at the end of a uniform beam of...

a sign of mass 20.0 kg is supported at the end of a uniform beam of mass 10.0 kg and length 2.00!m. the beam makes an angle of 30.0 degrees with the horizontal. a wire is attached from the end of the rod to a point on the wall and makes an angle if 20.0 degrees to the horizontal. what is the tension of the wire. what are the magnitudes of the horizontal and vertical components of the reaction force...
A beam is attached to a vertical wall with a hinge. The mass of the beam...

A beam is attached to a vertical wall with a hinge. The mass of the beam is 1800 kg and it is 4 m long. A steel support wire is tied from the end of the beam to the wall, making an angle of 30 with the beam (see the figure below), 30° m 1) Calculate the tension in the support wire. Assume the beam has a uniform density. KN Submit You currently have 0 submissions for this question. Only...

A beam is attached to a vertical wall with a hinge. The mass of the beam...

A beam is attached to a vertical wall with a hinge. The mass of the beam is 1100 kg and it is 4 m long. A steel support wire is tied from the end of the beam to the wall, making an angle of 30° with the beam (see the figure below). 307 m 1) Calculate the tension in the support wire. Assume the beam has a uniform density. KN Submit You currently have o submissions for this question. Only...
