If the acting force is P, determine the normal and frictional forces acting on the mi...
If the acting force is P, determine the normal and frictional forces acting on the mi...

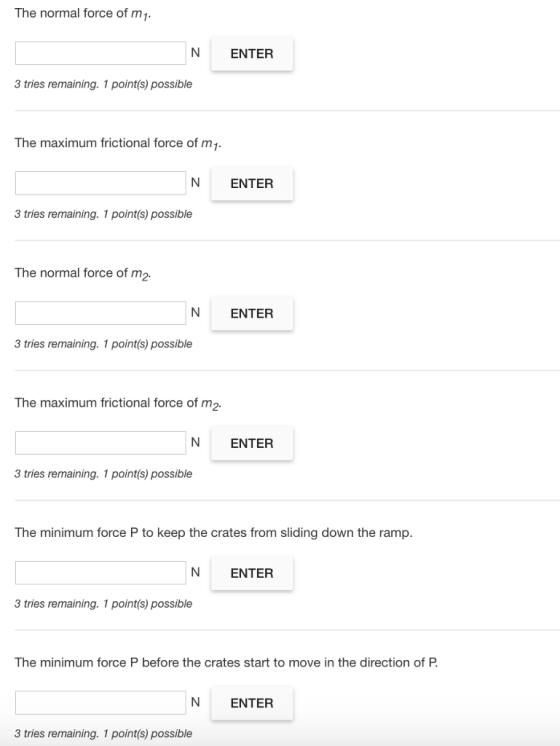

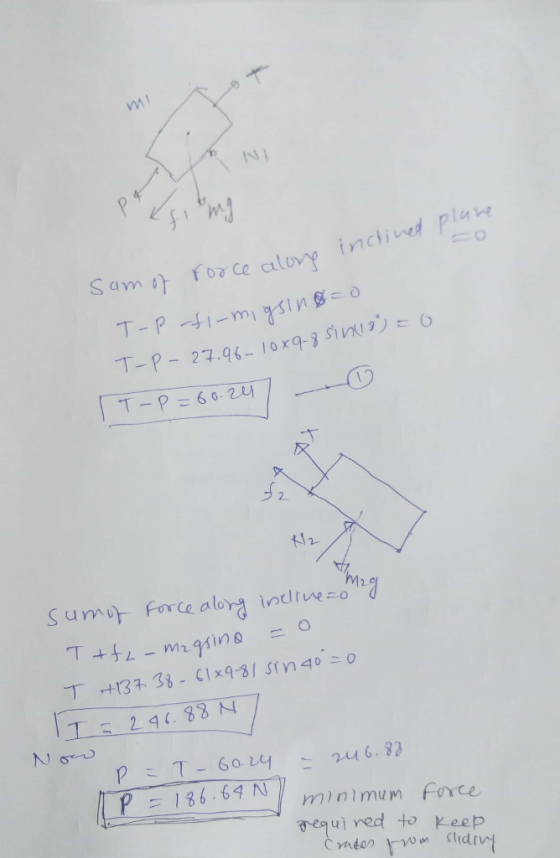

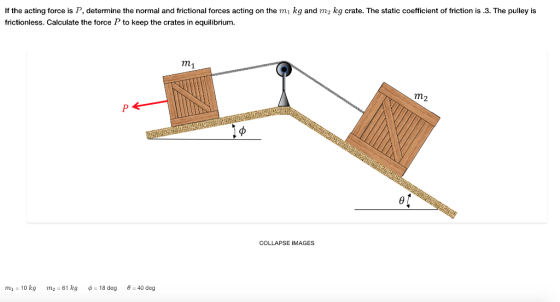

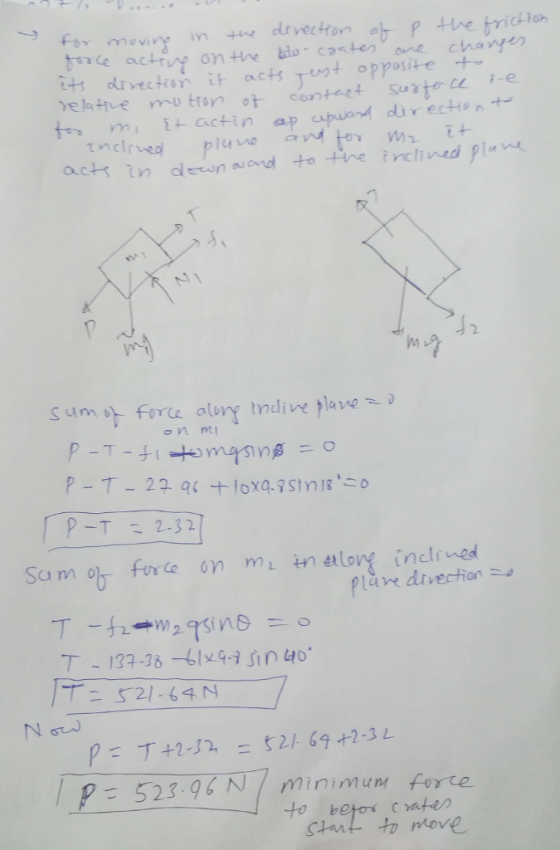

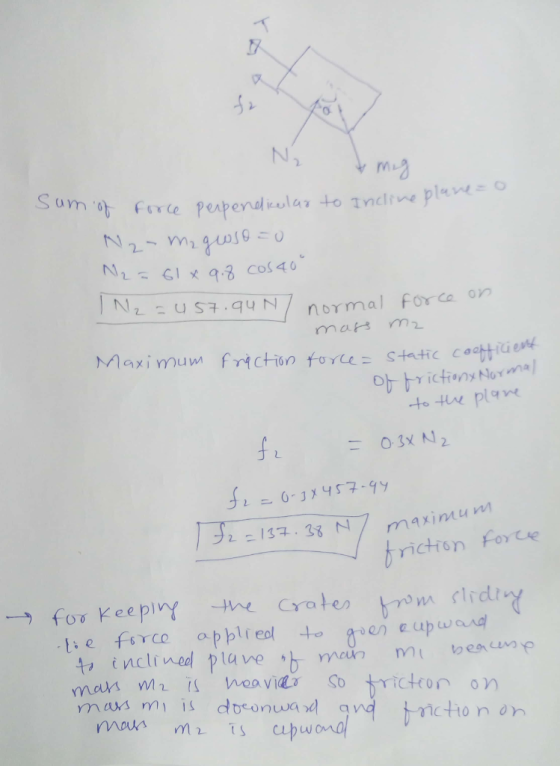

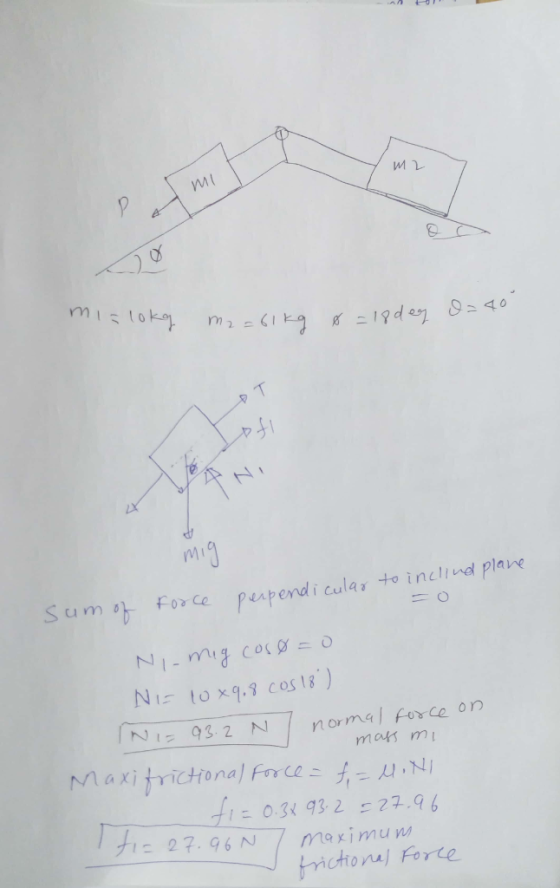

If the acting force is P, determine the normal and frictional forces acting on the mi kg and m2 kg crate. The static coefficient of friction is .3. The pulley is frictionless. Calculate the force P to keep the crates in equilibrium. mi m2 m1 = 19 kg m2 = 71 kg $ = 20 deg 0 = 30 deg The normal force of m1. ENTER 3 tries remaining. 1 point(s) possible The maximum frictional force of m1. 2 ENTER...
Determine the range of the force P that will keep the crate A in equilibrium. Crate...
Determine the range of the force P that will keep the crate A in equilibrium. Crate A has a mass of 968kg, the angle alpha is 65 deg, the angle Theta is 25 deg, pulley C is frictionless, and the two drums B and D are fixed. The coefficient of friction between the crate and the slopped surface is mu = 0.25, between the rope and the fixed drum B mu = 0.20, and between the rope and the fixed...
An object of mass, mi, is placed on a rough table and connected to a string...
An object of mass, mi, is placed on a rough table and connected to a string which passes under a pulley then over a pulley and then is fastened to a hanging mass, m2. Assuming mi is stationary, how would you measure the coefficient of friction on mi? (That is calculate a formula for mu s as a function of m1 and m2) If the mass of m2 is increased until mi accelerates with acceleration a. What is the coefficient...
mi m2 Two wooden crates rest on top of one another. The smaller top crate has...
mi m2 Two wooden crates rest on top of one another. The smaller top crate has a mass of my = 24 kg and the larger bottom crate has a mass of m2 = 87 kg. There is NO friction between the crate and the floor, but the coefficient of static friction between the two crates is Hs = 0.82 and the coefficient of kinetic friction between the two crates is Mk = 0.64. A massless rope is attached to...
Problem Statement: Two crates ofmasses mi=41kg and m2 =53 kg are connected to each other by...
Problem Statement: Two crates ofmasses mi=41kg and m2 =53 kg are connected to each other by a massless cord. Attached to crate m2 is another massless cord with a pulling tension force of magnitude Fp= 215 Nand at an angle θ 27° relative to the horizontal as shown in the figure below. The masses are pulled on a table that is frictionless. Calculate the acceleration of the two masses 01 2. Make a System Schema for the problem. Use ONLY...
The figure shows three crates being pushed over a concrete floor by a horizontal force of...
The figure shows three crates being pushed over a concrete floor
by a horizontal force of magnitude 634 N. The masses of the crates
are m1 = 31 kg, m2 = 12 kg, and m3 = 20 kg. The coefficient of
kinetic friction between the floor and each of the crates is 0.7. What is
the magnitude F32 of the force on crate 3 from crate 2?
mi 13) A block with mass m = 5.00 kg is placed on an inclined plane...
mi 13) A block with mass m = 5.00 kg is placed on an inclined plane with slope of a = 30.0° and is connected to a hanging block with mass m2 = 3.00 kg by a cord passing over a small, frictionless pulley as shown in the figure to the right. The coefficient of static friction is 0.333, and the coefficient of kinetic friction is 0.150. What is the magnitude and direction of the friction force on block mı?
Which forces are acting on the book? Check all that apply. kinetic friction static friction spring force normal...
Which forces are acting on the book? Check all that apply. kinetic friction static friction spring force normal force drag tension gravity Which forces are acting on the book?
Two blocks are in contact on a frictionless table. A horizontal force is applied to the...
Two blocks are in contact on a frictionless table. A horizontal force is applied to the larger block a Dwnin figure. If m1 = 2.30 kg, m2 = 1.20 kg, and F = 3.20 NNSi mi Step 6 me tiree forces oetingon-the block 2 must be identified. Which forces act on the block 2? Normal force from the table Applied horizontal force Tension Gravitational force Frictional force Normal force from block 1 JS)
If the acting force is P, determine the normal and frictional forces acting on the mi kg and m2 kg crate. The static coefficient of friction is .3. The pulley is frictionless. Calculate the force P to keep the crates in equilibrium. mi m2 m1 = 19 kg m2 = 71 kg $ = 20 deg 0 = 30 deg The normal force of m1. ENTER 3 tries remaining. 1 point(s) possible The maximum frictional force of m1. 2 ENTER...
Determine the range of the force P that will keep the crate A in equilibrium. Crate A has a mass of 968kg, the angle alpha is 65 deg, the angle Theta is 25 deg, pulley C is frictionless, and the two drums B and D are fixed. The coefficient of friction between the crate and the slopped surface is mu = 0.25, between the rope and the fixed drum B mu = 0.20, and between the rope and the fixed...
An object of mass, mi, is placed on a rough table and connected to a string which passes under a pulley then over a pulley and then is fastened to a hanging mass, m2. Assuming mi is stationary, how would you measure the coefficient of friction on mi? (That is calculate a formula for mu s as a function of m1 and m2) If the mass of m2 is increased until mi accelerates with acceleration a. What is the coefficient...
mi m2 Two wooden crates rest on top of one another. The smaller top crate has a mass of my = 24 kg and the larger bottom crate has a mass of m2 = 87 kg. There is NO friction between the crate and the floor, but the coefficient of static friction between the two crates is Hs = 0.82 and the coefficient of kinetic friction between the two crates is Mk = 0.64. A massless rope is attached to...
Problem Statement: Two crates ofmasses mi=41kg and m2 =53 kg are connected to each other by a massless cord. Attached to crate m2 is another massless cord with a pulling tension force of magnitude Fp= 215 Nand at an angle θ 27° relative to the horizontal as shown in the figure below. The masses are pulled on a table that is frictionless. Calculate the acceleration of the two masses 01 2. Make a System Schema for the problem. Use ONLY...
The figure shows three crates being pushed over a concrete floor
by a horizontal force of magnitude 634 N. The masses of the crates
are m1 = 31 kg, m2 = 12 kg, and m3 = 20 kg. The coefficient of
kinetic friction between the floor and each of the crates is 0.7. What is
the magnitude F32 of the force on crate 3 from crate 2?
mi 13) A block with mass m = 5.00 kg is placed on an inclined plane with slope of a = 30.0° and is connected to a hanging block with mass m2 = 3.00 kg by a cord passing over a small, frictionless pulley as shown in the figure to the right. The coefficient of static friction is 0.333, and the coefficient of kinetic friction is 0.150. What is the magnitude and direction of the friction force on block mı?
Two blocks are in contact on a frictionless table. A horizontal force is applied to the larger block a Dwnin figure. If m1 = 2.30 kg, m2 = 1.20 kg, and F = 3.20 NNSi mi Step 6 me tiree forces oetingon-the block 2 must be identified. Which forces act on the block 2? Normal force from the table Applied horizontal force Tension Gravitational force Frictional force Normal force from block 1 JS)
