Add Answer to:

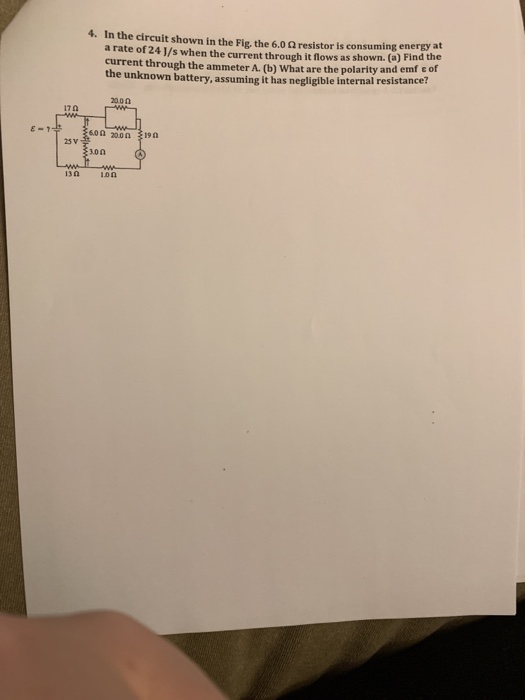

4. In the circuit shown in the Fig, the 6.0 Ω resistor is consuming energyat a...
In the circuit shown in (Figure 1), the 6.0 Ω resistor isconsuming energy at a...
In the circuit shown in (Figure 1), the 6.0 Ω resistor is
consuming energy at a rate of 25.0 J/s when the current through it
flows as shownA) Find the current through the ammeter AB) What are the polarity and emf E of the battery, assuming it has
negligible internal resistance?
In the circuit shown in the figure (Figure 1) . the 6.0 ohm resistor is consuming...
In the circuit shown in the figure (Figure 1) . the 6.0 ohm
resistor is consuming energy at a rate of 23.0 J/s when the current
through it flows as shown. Find the current through the ammeter A.
What are the polarity and emf of the battery , assuming it has
negligible internal resistance?

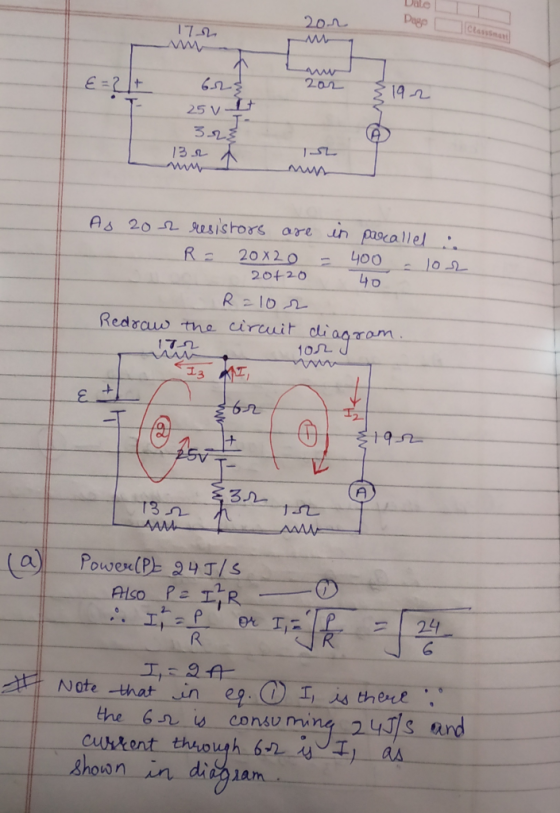

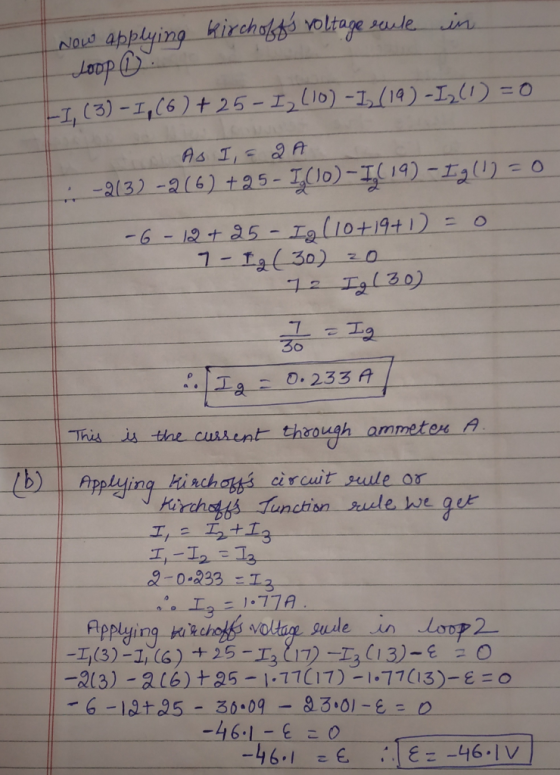

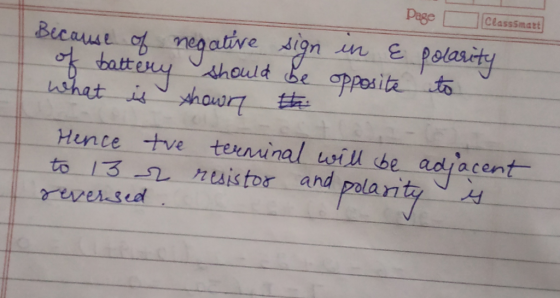

Consider the circuit shown below. The 62 resistor is consuming power at a rate of 24...
Consider the circuit shown below. The 62 resistor is consuming power at a rate of 24 J/s when the current passes through it. 20.012 1792 em الام E = ? 36.00 20.0 22 1922 25 V 33.00 130 P 1.012 (a) Find the current through the ammeter A. What are the polarity and emfe of the unknown battery? If point P of the circuit is grounded (that is Vp = 0V), what is the voltage at point Q? What is...
In the circuit shown in the figure (Figure 1), the 6.0 12 resistor is consuming energy...
In the circuit shown in the figure (Figure 1), the 6.0 12 resistor is consuming energy at a rate of 21 J/s when the current through it flows as shown Part A Find the current through the ammeter A. Express your answer with the appropriate units. li μΑ ? I = Value Units Submit Previous Answers Request Answer X Incorrect; Try Again; 4 attempts remaining Part B Figure < 1 of 1 > What are the polarity and emf of...
M Review Constants In the circuit shown in the figure (Figure 1), the 6.0 2 resistor...
M Review Constants In the circuit shown in the figure (Figure 1), the 6.0 2 resistor is consuming energy at a rate of 27 J/s when the current through it flows as shown. Part A Find the current through the ammeter A. Express your answer with the appropriate units. LE UA ? 1 = Value Units Submit Request Answer Part B What are the polarity and emf of the battery E, assuming it has negligible internal resistance? Express your answer...
In the circuit shown in (Figure 1) , current flows through the 5.00 Ω resistor in...
In the circuit shown in (Figure 1) , current flows through the
5.00 Ω resistor in the direction shown, and this resistor is
measured to be consuming energy at a rate of 24.9 W . The batteries
have negligibly small internal resistance.
Question: What current does the ammeter A read?
15.0 7.000 5.00 2.000
A circuit contains a 100-Ω resistor and a 48.0-V battery. An ammeter is inserted into the...
A circuit contains a 100-Ω resistor and a 48.0-V battery. An ammeter is inserted into the circuit to measure the current and has an internal resistance of 0.50 Ω. What is the voltage drop across the ammeter terminals?
In the circuit shown below the ammeter consists of a galvanometer, with resistance Rg = 100...
In the circuit shown below the ammeter consists of a
galvanometer, with resistance Rg = 100 Ω, in parallel with a
‘shunt’ resistor, Rs = 2.00 Ω. The current, Ig, flowing through the
galvanometer is 22.1 mA. The external circuit resistance is Rc =
20.0 Ω. If the EMF of the cell is 25.0 V, what is its internal
resistance?
EMF 25.0 V A )ammeter
A 9.0-Ω resistor and a 6.0-Ω resistor are connected in parallel across a power supply, and...
A 9.0-Ω resistor and a 6.0-Ω resistor are connected in parallel across a power supply, and the current through the 9.0-Ω resistor is found to be 0.25 A. Find the voltage setting of the power supply. A series RC circuit for which C = 6.0 μF, R = 2.0 × 106 Ω, and ε = 20 V. Find the maximum charge on the capacitor after a switch in the circuit is closed.
For the circuit shown in Fig. 6, calculate:(a) the current in the 2.00−Ω resistor.(b) the potential...
For the circuit shown in Fig. 6, calculate:(a) the current in
the 2.00−Ω resistor.(b) the potential difference between points a
and b.
Assume that the components on Fig. 7 have the following
values:V1 = 10.0 V , V2 = 15.0 V , R1 = 5.0 Ω, R1 = 5.00 Ω, R2 =
10.0 Ω, R3 = 15.0 Ω, R4 = 20.0 Ω. (a) Find the current trough each
branch of the circuit. (b) Find the power dissipated in each
circuit...
In the circuit shown in (Figure 1), the 6.0 Ω resistor is
consuming energy at a rate of 25.0 J/s when the current through it
flows as shownA) Find the current through the ammeter AB) What are the polarity and emf E of the battery, assuming it has
negligible internal resistance?
In the circuit shown in the figure (Figure 1) . the 6.0 ohm
resistor is consuming energy at a rate of 23.0 J/s when the current
through it flows as shown. Find the current through the ammeter A.
What are the polarity and emf of the battery , assuming it has
negligible internal resistance?
Consider the circuit shown below. The 62 resistor is consuming power at a rate of 24 J/s when the current passes through it. 20.012 1792 em الام E = ? 36.00 20.0 22 1922 25 V 33.00 130 P 1.012 (a) Find the current through the ammeter A. What are the polarity and emfe of the unknown battery? If point P of the circuit is grounded (that is Vp = 0V), what is the voltage at point Q? What is...
In the circuit shown in the figure (Figure 1), the 6.0 12 resistor is consuming energy at a rate of 21 J/s when the current through it flows as shown Part A Find the current through the ammeter A. Express your answer with the appropriate units. li μΑ ? I = Value Units Submit Previous Answers Request Answer X Incorrect; Try Again; 4 attempts remaining Part B Figure < 1 of 1 > What are the polarity and emf of...
M Review Constants In the circuit shown in the figure (Figure 1), the 6.0 2 resistor is consuming energy at a rate of 27 J/s when the current through it flows as shown. Part A Find the current through the ammeter A. Express your answer with the appropriate units. LE UA ? 1 = Value Units Submit Request Answer Part B What are the polarity and emf of the battery E, assuming it has negligible internal resistance? Express your answer...
In the circuit shown in (Figure 1) , current flows through the
5.00 Ω resistor in the direction shown, and this resistor is
measured to be consuming energy at a rate of 24.9 W . The batteries
have negligibly small internal resistance.
Question: What current does the ammeter A read?
15.0 7.000 5.00 2.000
In the circuit shown below the ammeter consists of a
galvanometer, with resistance Rg = 100 Ω, in parallel with a
‘shunt’ resistor, Rs = 2.00 Ω. The current, Ig, flowing through the
galvanometer is 22.1 mA. The external circuit resistance is Rc =
20.0 Ω. If the EMF of the cell is 25.0 V, what is its internal
resistance?
EMF 25.0 V A )ammeter
For the circuit shown in Fig. 6, calculate:(a) the current in
the 2.00−Ω resistor.(b) the potential difference between points a
and b.
Assume that the components on Fig. 7 have the following
values:V1 = 10.0 V , V2 = 15.0 V , R1 = 5.0 Ω, R1 = 5.00 Ω, R2 =
10.0 Ω, R3 = 15.0 Ω, R4 = 20.0 Ω. (a) Find the current trough each
branch of the circuit. (b) Find the power dissipated in each
circuit...
