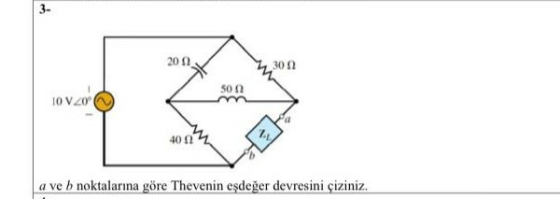

according to A and B please draw thevenin equivalent circuit
according to points A and B and please draw Thevenin Equivalent circuit

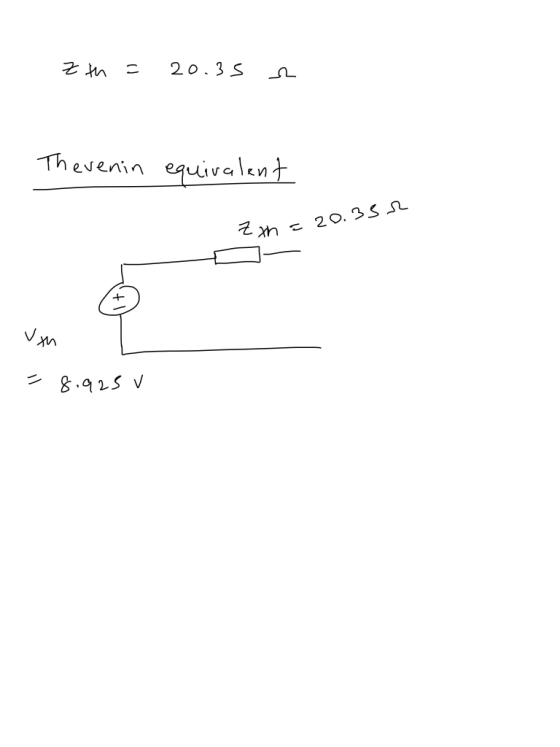

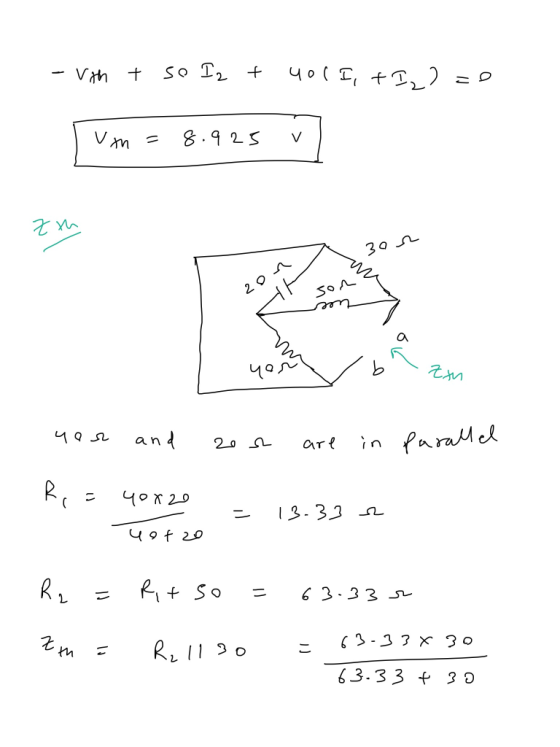

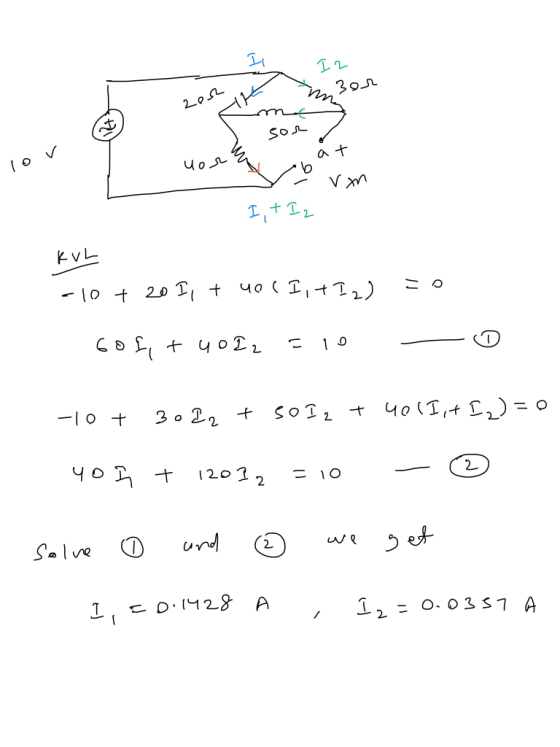

Homework Answers
Add Answer to:
according to A and B please draw thevenin
equivalent circuit
according to points A and B...
For the circuit below, perform a Thevenin equivalent analysis. a) Determine the Thevenin equivalent resistance R_TH...
For the circuit below, perform a Thevenin equivalent analysis. a) Determine the Thevenin equivalent resistance R_TH between points A and B. b) Determine the Thevenin equivalent voltage V_TH between points A and B. c) Let the components have the following values: epsilon_1 = 4 V, epsilon_2 = 3 V, R_1 = 15 k Ohm, and R_2 = 8 k Ohm. You attach a 12 k Ohm resistor from A to B. Using parts a) and b), draw the Thevenin equivalent...
(4) Determine and draw the Thevenin equivalent circuit with respect to terminals a and b. 20ix...
(4) Determine and draw the Thevenin equivalent circuit with respect to terminals a and b. 20ix i 452 42
Find the Thevenin equivalent circuit for the circuit shown below. Draw the equivalent circuit along with...
Find the Thevenin equivalent circuit for the circuit shown below. Draw the equivalent circuit along with the load impedance. V 10 /0° V, w 1000 rad/s. Calculate the current through and the voltage across the load resistor. (30 pts) L1 1 mH R1 L2 500 Q 1 mH V C1 RL 100 μF 1.5 kQ
Find the Thevenin Equivalent at terminals a-b for the given circuit. Find the Thevenin resistance,...
Find the Thevenin Equivalent at terminals a-b for the given circuit. Find the Thevenin resistance, Rth, of the circuit using the test source method. Write answer in the box provided and draw equivalent circuit.
2. (a) Find and draw the Thevenin equivalent circuit seen by the terminals A & B.(I0...
2. (a) Find and draw the Thevenin equivalent circuit seen by the terminals A & B.(I0 points) (b) If a load is connected at terminals A &B what the load must be for maximum transfer to the load? (5 points). )29- 98ル 82 o B
3. (10 Points) Find the Thevenin equivalent circuit between terminals a and b. a 30 22...
3. (10 Points) Find the Thevenin equivalent circuit between terminals a and b. a 30 22 2002 102 I 51 ЗА b
Fing the Thevenin and Norton Equivalent circuit. please explain with clear steps. Find: a) Thevenin equivalent...
Fing the Thevenin and Norton Equivalent circuit.
please explain with clear steps.
Find:
a) Thevenin equivalent
b) Norton equivalent
R, - 180 W R-112 -sv 3R, -4.7K9 3R, -2.269 SR.-5.6 kA
please do not skip steps and show all work 4. THEVENIN AND NORTON CIRCUIT EQUIVALENT (25...
please do not skip steps and show all work
4. THEVENIN AND NORTON CIRCUIT EQUIVALENT (25 POINTS) Consider the circuit shown below. - коа oa OA 122 w -ob 1. Find the Thevenin circuit equivalent to the left of terminals a and b. (20 points) 2. Find the Norton circuit equivalent to the left of terminals a and b. (5 points)
Problem 1 (15 points) For the circuit shown in the Figure: a. Find the Thevenin equivalent...
Problem 1 (15 points) For the circuit shown in the Figure: a. Find the Thevenin equivalent at terminals a-b. (12 points) b. What is the value of a resistor R, if connected across terminal a-b will absorb maximum power from the circuit.?, what is that maximum power? 3 points) 14V 142 o a 1A 6 2 ЗА 5 2 o b
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where...
Find the Thevenin and Norton equivalent circuit at terminals
a-b for the circuit shown below, where R
= 12 Ω. Please report your answer so the magnitude is positive and
all angles are in the range of negative 180 degrees to positive 180
degrees.
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 12 n. Please report your answer so the magnitude is positive and all angles are in the range...
For the circuit below, perform a Thevenin equivalent analysis. a) Determine the Thevenin equivalent resistance R_TH between points A and B. b) Determine the Thevenin equivalent voltage V_TH between points A and B. c) Let the components have the following values: epsilon_1 = 4 V, epsilon_2 = 3 V, R_1 = 15 k Ohm, and R_2 = 8 k Ohm. You attach a 12 k Ohm resistor from A to B. Using parts a) and b), draw the Thevenin equivalent...
(4) Determine and draw the Thevenin equivalent circuit with respect to terminals a and b. 20ix i 452 42
Find the Thevenin equivalent circuit for the circuit shown below. Draw the equivalent circuit along with the load impedance. V 10 /0° V, w 1000 rad/s. Calculate the current through and the voltage across the load resistor. (30 pts) L1 1 mH R1 L2 500 Q 1 mH V C1 RL 100 μF 1.5 kQ
2. (a) Find and draw the Thevenin equivalent circuit seen by the terminals A & B.(I0 points) (b) If a load is connected at terminals A &B what the load must be for maximum transfer to the load? (5 points). )29- 98ル 82 o B
3. (10 Points) Find the Thevenin equivalent circuit between terminals a and b. a 30 22 2002 102 I 51 ЗА b
Fing the Thevenin and Norton Equivalent circuit.
please explain with clear steps.
Find:
a) Thevenin equivalent
b) Norton equivalent
R, - 180 W R-112 -sv 3R, -4.7K9 3R, -2.269 SR.-5.6 kA
please do not skip steps and show all work
4. THEVENIN AND NORTON CIRCUIT EQUIVALENT (25 POINTS) Consider the circuit shown below. - коа oa OA 122 w -ob 1. Find the Thevenin circuit equivalent to the left of terminals a and b. (20 points) 2. Find the Norton circuit equivalent to the left of terminals a and b. (5 points)
Problem 1 (15 points) For the circuit shown in the Figure: a. Find the Thevenin equivalent at terminals a-b. (12 points) b. What is the value of a resistor R, if connected across terminal a-b will absorb maximum power from the circuit.?, what is that maximum power? 3 points) 14V 142 o a 1A 6 2 ЗА 5 2 o b
Find the Thevenin and Norton equivalent circuit at terminals
a-b for the circuit shown below, where R
= 12 Ω. Please report your answer so the magnitude is positive and
all angles are in the range of negative 180 degrees to positive 180
degrees.
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 12 n. Please report your answer so the magnitude is positive and all angles are in the range...
