Please show full working and answer to 4 sig fig at leastHomework Answers

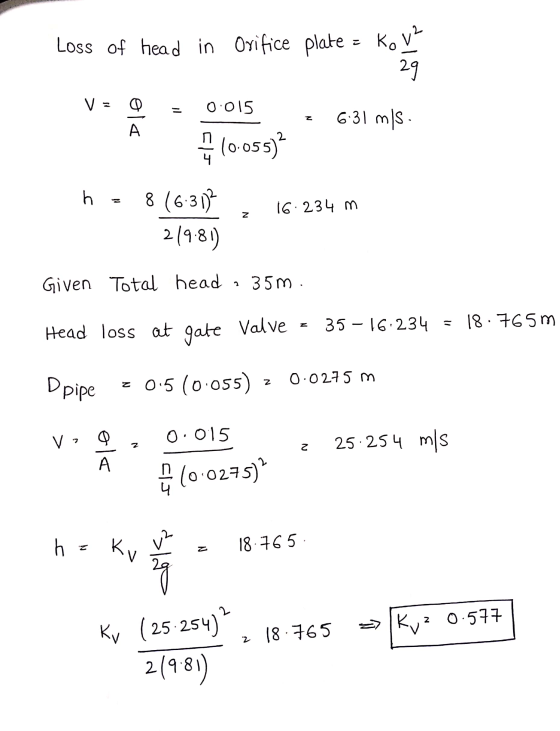

GIVEN FLOW RATE Q = 15L/S = 0.015 m^3 /s
Add Answer to:
Please show full working and answer to 4 sig fig at least

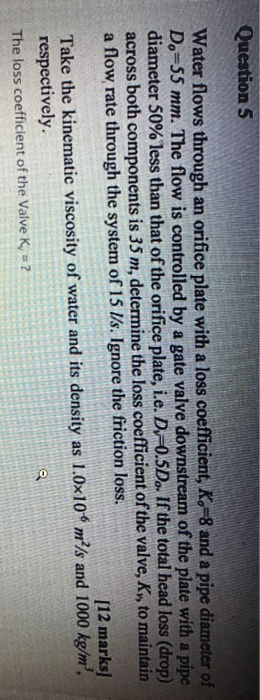

Question 5 Water flows...
2. Water flows at a rate of 60 L/s from a main reservoir to a subsidiary...
2. Water flows at a rate of 60 L/s from a main reservoir to a subsidiary through a 600 m long, 185 mm diameter asphalted cast iron pipe as shown in the figure. The pipeline contains a gate valve, a globe valve and 4 standard 90° elbows. The entrance and exit are square edged, and all fittings are screwed ends, determine, You need Kinematic viscosity of water, 1 x 10-6 m/s2 (a) The friction head loss in the pipe, (b)...
It is Fluid Class! 8. The minor loss coefficients K = Ap/(PV/2) for a 600-mm-diameter valve...
It is Fluid Class!

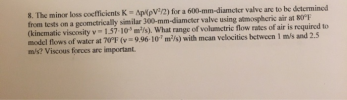

8. The minor loss coefficients K = Ap/(PV/2) for a 600-mm-diameter valve are to be determined from tests on a geometrically similar 300-mm-diameter valve using atmospheric air at 80°F (kinematic viscosity v = 1.57.10 mº/s). What range of volumetric flow rates of air is required to model flows of water at 70°F (v=9.96-10-mº/s) with mean velocities between 1 m/s and 2.5 m/s? Viscous forces are important.
Water (density 998 kg/mº, dynamic viscosity 0.001 Pa s) is pumped between two reservoirs at a...
Water (density 998 kg/mº, dynamic viscosity 0.001 Pa s) is pumped between two reservoirs at a volumetric flow rate of 0.006 m/s through a 120-m long pipe of 5 cm diameter. The roughness ratio of the pipe is a/d = 0.001. There are some fittings and valves in the pipe system, as shown in Figure Q1. The loss coefficients of the valves and fittings can be found in Table Q1. The Darcy friction factor can be found in the Moody...
Calculate the volumetric flow rate of water through the pipe with inside diameter = 0.2m fitted...
Calculate the volumetric flow rate of water through the pipe with inside diameter = 0.2m fitted with an orifice plate contains a concentric hole of diameter = 0.15 m. The head differential across the orifice plate is 3.4 m and the discharge coefficient =0.6 Select one: O a. 0.2944 m3/s O b. 0.1567 m/s O c.0.1048 m/s O d. 0.3011 m/s O e. 0.1296 m/s
Engineering Fluid Mechanics PO 17: Water flows through a section of a pipe of length L...
Engineering Fluid Mechanics
PO 17: Water flows through a section of a pipe of length L and diameter D as indicated in the figure. The pipe has a roughness of k, = 0.3mm. The discharge is Q = 1m/s. The kinematic viscosity of water is V = 10 m/s. (a) What is the friction factor ? (Moody diagram on next page). (b) What is the head loss over the pipe section of length L? (c) What horizontal force is required...
Question 3 (a) Water flows through a horizontal pipeline of constant 400 mm diameter in a...
Question 3 (a) Water flows through a horizontal pipeline of constant 400 mm diameter in a water treatment plant. The pipe bends through a 70° angle. In order to design a thrust block for the bend, calculate the magnitude and line of action of the force exerted by the water on the pipe. The discharge through the pipe is 0.4 m/s. The water pressure at the inlet is equivalent to 22 m head of water. [10 marks] (b) Oil of...
Water flows in a 20 cm diameter pipe at 5 m/s as shown in Fig. A.4....
Water flows in a 20 cm diameter pipe at 5 m/s as shown in Fig.
A.4. It exits by impacting upon a 90- cone and leaves with a
uniform flow of thickness 1 cm around the cone edge.
(a) Calculate the force acting on the cone. (15 marks)
(b) If the flow exits non-uniformly, explain how the movement of
the cone will be affected. (5 marks)
A.4 Water flows in a 20 cm diameter pipe at 5 m/s as shown...
Question 3 [20 marks] Water (density p1000 kg/m2; dynamic viscosity 0.001 Pa-s) flows steadily through a horizontal, st...
Question 3 [20 marks] Water (density p1000 kg/m2; dynamic viscosity 0.001 Pa-s) flows steadily through a horizontal, straight pipe with circular cross section of diameter D=0.2 m. The volumetric flow rate is 0.01 m°/s. Argue that this is turbulent flow. [4 marksl а. Pressure drop in the pipe is due to friction. The pressure drop per unit length can be written as Др 4f L with U the average velocity in the pipe and fthe friction factor. Given the pipe...
Water, with density of 1000 kg/m3 and kinematic viscosity of 1.0 x 10- m2/s, is pumped through a ...
Water, with density of 1000 kg/m3 and kinematic viscosity of 1.0 x 10- m2/s, is pumped through a total length of 60 m of pipe from a lower reservoir to a higher reservoir. The inner diameter of the pipe is 30 cm. Both reservoirs are open to the atmosphere, and the water surface of the higher reservoir is 10 m above that of the lower reservoir. The entrance from the lower reservoir to the pipe is sharp-edged, and along the...
Water (density = 1000 kg/m3, viscosity = 1.15 x 10-3 N-s/m2) is delivered from a large reservoir ...
Water (density = 1000 kg/m3, viscosity = 1.15 x 10-3 N-s/m2) is delivered from a large reservoir upstream (Section"1") through two mortar lined steel circular pipes arranged in series to another large reservoir downstream (Section "2") as shown in Figure E4.7 The upstream pipe is 80 m long and 0.15 m in diameter, whereas the downstream pipe is 50 m long and 0.1 m in diameter. Both pipes have sharp-edged entrance and exit. Consider both major and minor losses. Determine...
2. Water flows at a rate of 60 L/s from a main reservoir to a subsidiary through a 600 m long, 185 mm diameter asphalted cast iron pipe as shown in the figure. The pipeline contains a gate valve, a globe valve and 4 standard 90° elbows. The entrance and exit are square edged, and all fittings are screwed ends, determine, You need Kinematic viscosity of water, 1 x 10-6 m/s2 (a) The friction head loss in the pipe, (b)...
It is Fluid Class!
8. The minor loss coefficients K = Ap/(PV/2) for a 600-mm-diameter valve are to be determined from tests on a geometrically similar 300-mm-diameter valve using atmospheric air at 80°F (kinematic viscosity v = 1.57.10 mº/s). What range of volumetric flow rates of air is required to model flows of water at 70°F (v=9.96-10-mº/s) with mean velocities between 1 m/s and 2.5 m/s? Viscous forces are important.
Water (density 998 kg/mº, dynamic viscosity 0.001 Pa s) is pumped between two reservoirs at a volumetric flow rate of 0.006 m/s through a 120-m long pipe of 5 cm diameter. The roughness ratio of the pipe is a/d = 0.001. There are some fittings and valves in the pipe system, as shown in Figure Q1. The loss coefficients of the valves and fittings can be found in Table Q1. The Darcy friction factor can be found in the Moody...
Calculate the volumetric flow rate of water through the pipe with inside diameter = 0.2m fitted with an orifice plate contains a concentric hole of diameter = 0.15 m. The head differential across the orifice plate is 3.4 m and the discharge coefficient =0.6 Select one: O a. 0.2944 m3/s O b. 0.1567 m/s O c.0.1048 m/s O d. 0.3011 m/s O e. 0.1296 m/s
Engineering Fluid Mechanics
PO 17: Water flows through a section of a pipe of length L and diameter D as indicated in the figure. The pipe has a roughness of k, = 0.3mm. The discharge is Q = 1m/s. The kinematic viscosity of water is V = 10 m/s. (a) What is the friction factor ? (Moody diagram on next page). (b) What is the head loss over the pipe section of length L? (c) What horizontal force is required...
Question 3 (a) Water flows through a horizontal pipeline of constant 400 mm diameter in a water treatment plant. The pipe bends through a 70° angle. In order to design a thrust block for the bend, calculate the magnitude and line of action of the force exerted by the water on the pipe. The discharge through the pipe is 0.4 m/s. The water pressure at the inlet is equivalent to 22 m head of water. [10 marks] (b) Oil of...
Water flows in a 20 cm diameter pipe at 5 m/s as shown in Fig.
A.4. It exits by impacting upon a 90- cone and leaves with a
uniform flow of thickness 1 cm around the cone edge.
(a) Calculate the force acting on the cone. (15 marks)
(b) If the flow exits non-uniformly, explain how the movement of
the cone will be affected. (5 marks)
A.4 Water flows in a 20 cm diameter pipe at 5 m/s as shown...
Question 3 [20 marks] Water (density p1000 kg/m2; dynamic viscosity 0.001 Pa-s) flows steadily through a horizontal, straight pipe with circular cross section of diameter D=0.2 m. The volumetric flow rate is 0.01 m°/s. Argue that this is turbulent flow. [4 marksl а. Pressure drop in the pipe is due to friction. The pressure drop per unit length can be written as Др 4f L with U the average velocity in the pipe and fthe friction factor. Given the pipe...
Water, with density of 1000 kg/m3 and kinematic viscosity of 1.0 x 10- m2/s, is pumped through a total length of 60 m of pipe from a lower reservoir to a higher reservoir. The inner diameter of the pipe is 30 cm. Both reservoirs are open to the atmosphere, and the water surface of the higher reservoir is 10 m above that of the lower reservoir. The entrance from the lower reservoir to the pipe is sharp-edged, and along the...
Water (density = 1000 kg/m3, viscosity = 1.15 x 10-3 N-s/m2) is delivered from a large reservoir upstream (Section"1") through two mortar lined steel circular pipes arranged in series to another large reservoir downstream (Section "2") as shown in Figure E4.7 The upstream pipe is 80 m long and 0.15 m in diameter, whereas the downstream pipe is 50 m long and 0.1 m in diameter. Both pipes have sharp-edged entrance and exit. Consider both major and minor losses. Determine...
