Design a Partial address decoded memory containing – 4 Chips – Each chip contains 8K x...
Homework Answers

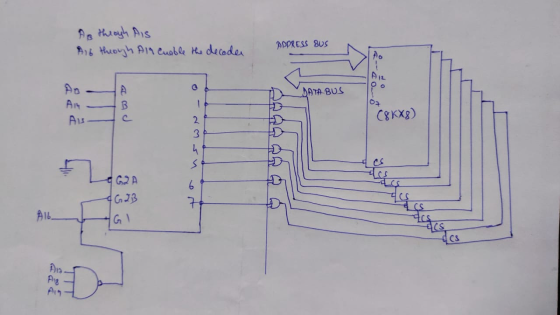

Here is the partial address decoder with 8k x 8bits with 20 address lines. .
Add Answer to:
Design
a Partial address
decoded memory containing
–
4
Chips
–
Each chip contains
8K x...
Construct a 16KB memory system using 1024x32 chips. The system address bus has 14 address bits....
Construct a 16KB memory system using 1024x32 chips. The system address bus has 14 address bits. The memory must be placed on the upper half of the memory map. Show the logic for the CS input of the chip(s), assume the CS are active low, assuming full address decoding scheme, and you may use a decoder. Draw the logic, address bus, and chips, and annotate the chip.
you answer for this question but very shortcut can you please answer with some nots thanks . Provide this 8-bit CPU with a 64Kb yte memory space by making use of 16K x 4 memory chip like the ones...
you answer for this question but very shortcut can you please
answer with some nots thanks
. Provide this 8-bit CPU with a 64Kb yte memory space by making use of 16K x 4 memory chip like the ones provided in the figure below. ) Fill in the blanks beside and inside the memory chips with the appropriate numbers. The number on top of this The spaces besides the A's and the D's are to indicate which lines of the...
A computer's operating system would normally be stored in nonvolatile memory. True False Question 18 (1...
A computer's operating system would normally be stored in nonvolatile memory. True False Question 18 (1 point) A microprocessor has an 8-bit data bus and a 16-bit address bus. Three address lines are decoded to generate CE signals for the memory chips. What size are the memory chips? 2K x 8 4K x 8 8K x 8 16K x 8 32K x 8
Consider a RAM system of size 64 Kbytes. For each of the following cases show how...
Consider a RAM system of size 64 Kbytes. For each of the following cases show how this RAM can be built. Draw a MEMORY MAP showing which chips are used for which range of addresses. Draw a NEAT drawing (employ the use of drawing aids such as rulers, templates, etc.) showing how the chips are connected to the address decoder and the CPU address, data, and control lines: (a) Use memory chips each having 8K x 8 bits. (b) Use...
5 Pages No. 4 Points Design ques tion . (19 points) 6. 4bits RAM memory chips...
5 Pages No. 4 Points Design ques tion . (19 points) 6. 4bits RAM memory chips to design tempt we use some 2K * In a computer, a 2K 8bits main memory module. Using the bit expansion method to expand er the the capacity of storage . nts) Answer the questions as follows : (1) How many 2K*4bits memory chips should be used? (4 pointsl are (2) How many address lines and data lines are there in memory system. (4...
1. Fill in the information requested for each of the following memory units. a. 64K x...
1. Fill in the information requested for each of the following memory units. a. 64K x 32 Number of words on this chip ________________________ Number of address lines on this chip ________________________ Number of data lines on this chip ________________________ Number of bytes on this chip ________________________ b. 16M x 8 Number of words on this chip ________________________ Number of address lines on this chip ________________________ Number of data lines on this chip ________________________ Number of bytes on this chip...
Design an address decoding using decoder (2 x 4). Consider, we wish to construct 1K byte...
Design an address decoding using decoder (2 x 4). Consider, we wish to construct 1K byte memory using 4 RAM chips, having 8 bits address line.
(40) Design 64k x 8 of memory starting at location 2000h. Us either 16k x 8...
(40) Design 64k x 8 of memory starting at location 2000h. Us either 16k x 8 Ram or 8k x 8 Ram memories for this. Use the decoder below plus any additional circuitry as necessary. Assume 2 additional address than needed for your design ((log2( total memory)+2) address lines) 2 1. BIN OCT EN
explain and comment out your answer 40. A composite memory, 32G × 32 is created using...
explain and comment out your answer 40. A composite memory, 32G × 32 is created using component memory chips, 2G × 8. How many of the address lines must be decoded to produce the chip select inputs? a. 4 b. 5 c. 6 d. 3
Memory organization a) Suppose that a 32MB system memory is built from 32 1MB RAM chips. How many...
Memory organization a) Suppose that a 32MB system memory is built from 32 1MB RAM chips. How many address lines are needed to select one of the memory chips? Suppose a system has a byte-addressable memory size of 4GB. How many bits are required for each address? Suppose that a system uses 16-bit memory words and its memory built from 32 1Mx 8 RAM chips. How large, in words, is the memory on this system? Suppose that a system uses...
you answer for this question but very shortcut can you please
answer with some nots thanks
. Provide this 8-bit CPU with a 64Kb yte memory space by making use of 16K x 4 memory chip like the ones provided in the figure below. ) Fill in the blanks beside and inside the memory chips with the appropriate numbers. The number on top of this The spaces besides the A's and the D's are to indicate which lines of the...
A computer's operating system would normally be stored in nonvolatile memory. True False Question 18 (1 point) A microprocessor has an 8-bit data bus and a 16-bit address bus. Three address lines are decoded to generate CE signals for the memory chips. What size are the memory chips? 2K x 8 4K x 8 8K x 8 16K x 8 32K x 8
5 Pages No. 4 Points Design ques tion . (19 points) 6. 4bits RAM memory chips to design tempt we use some 2K * In a computer, a 2K 8bits main memory module. Using the bit expansion method to expand er the the capacity of storage . nts) Answer the questions as follows : (1) How many 2K*4bits memory chips should be used? (4 pointsl are (2) How many address lines and data lines are there in memory system. (4...
Design an address decoding using decoder (2 x 4). Consider, we wish to construct 1K byte memory using 4 RAM chips, having 8 bits address line.
(40) Design 64k x 8 of memory starting at location 2000h. Us either 16k x 8 Ram or 8k x 8 Ram memories for this. Use the decoder below plus any additional circuitry as necessary. Assume 2 additional address than needed for your design ((log2( total memory)+2) address lines) 2 1. BIN OCT EN
Memory organization a) Suppose that a 32MB system memory is built from 32 1MB RAM chips. How many address lines are needed to select one of the memory chips? Suppose a system has a byte-addressable memory size of 4GB. How many bits are required for each address? Suppose that a system uses 16-bit memory words and its memory built from 32 1Mx 8 RAM chips. How large, in words, is the memory on this system? Suppose that a system uses...
