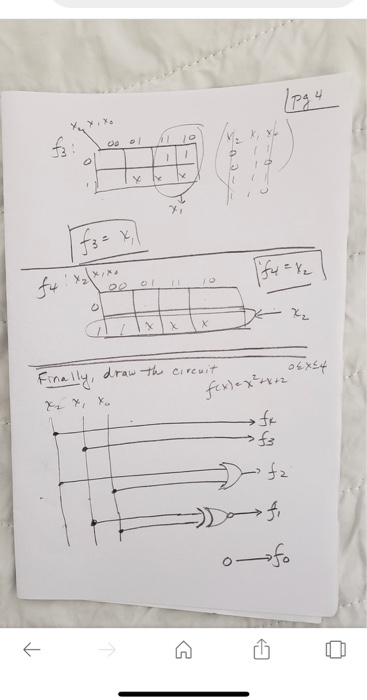

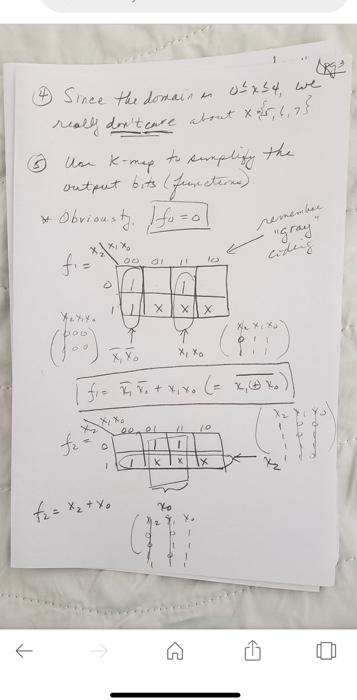

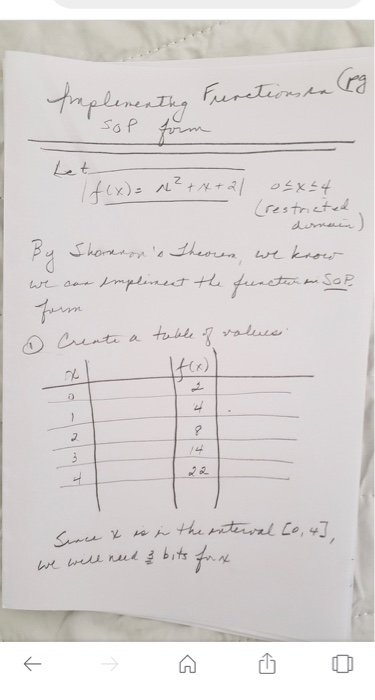

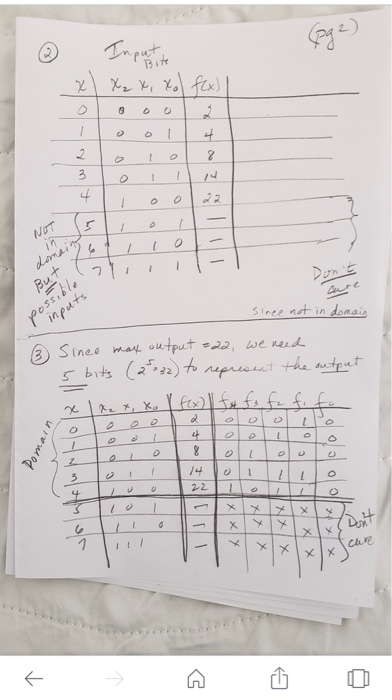

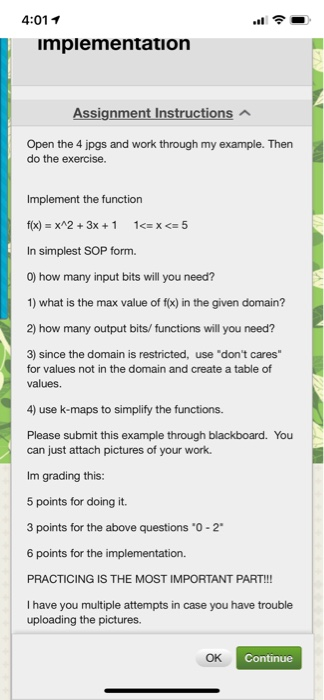

4:01 7 mpiementation Assignment Instructions Open the 4 jpgs and work through my example. Then do the exercise. Implement the function f(x) = x^2 + 3x + 1 1<= x <= 5 In simplest SOP form. 0) how many input bits will you need? 1) what is the max value of f(x) in the given domain? 2) how many output bits/ functions will you need? 3) since the domain is restricted, use dont cares for values not in the domain and create a table of values. 4) use k-maps to simplify the functions. Please submit this example through blackboard. You can just attach pictures of your work. Im grading this: 5 points for doing it. 3 points for the above questions 0-2 6 points for the implementation. PRACTICING IS THE MOST IMPORTANT PART!!! I have you multiple attempts in case you have trouble uploading the pictures. OK
media%2F064%2F0641ee40-c4cf-4728-a911-c7
media%2Fd21%2Fd2177b00-932b-4a01-9a47-d5
media%2F015%2F0156811e-38f1-4a6e-b3d8-7f
media%2F015%2F015b3fa2-092a-4d5b-94a1-e6
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

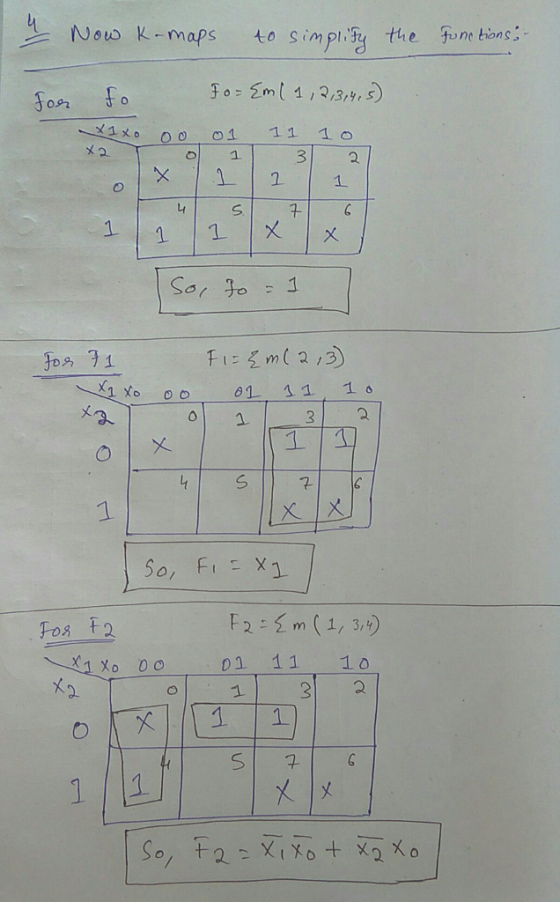

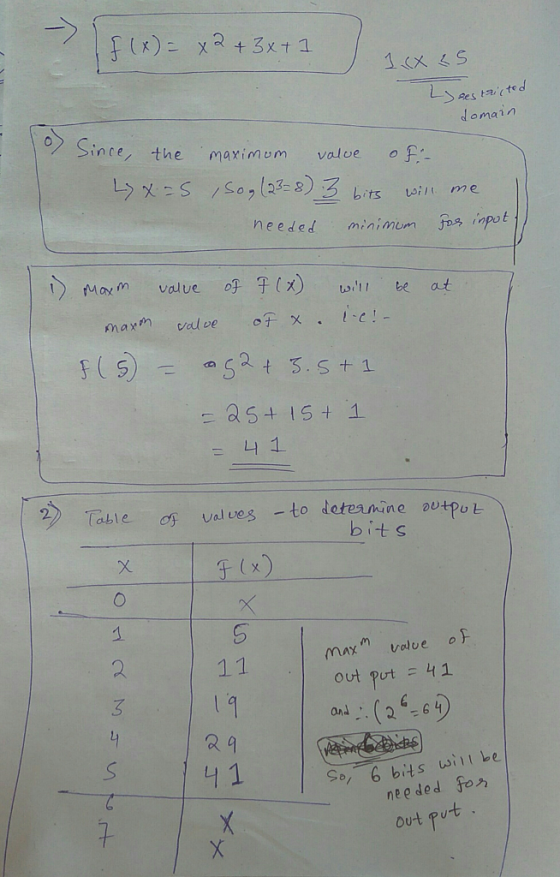

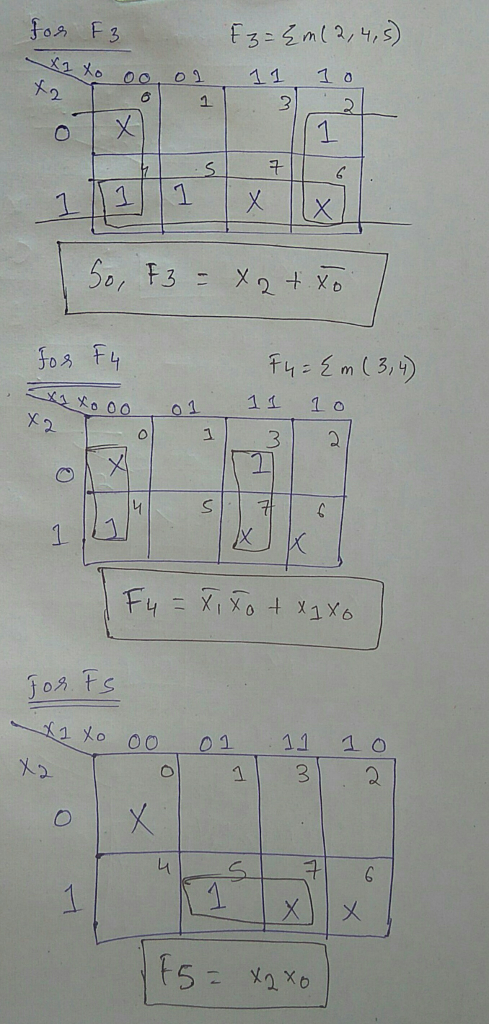

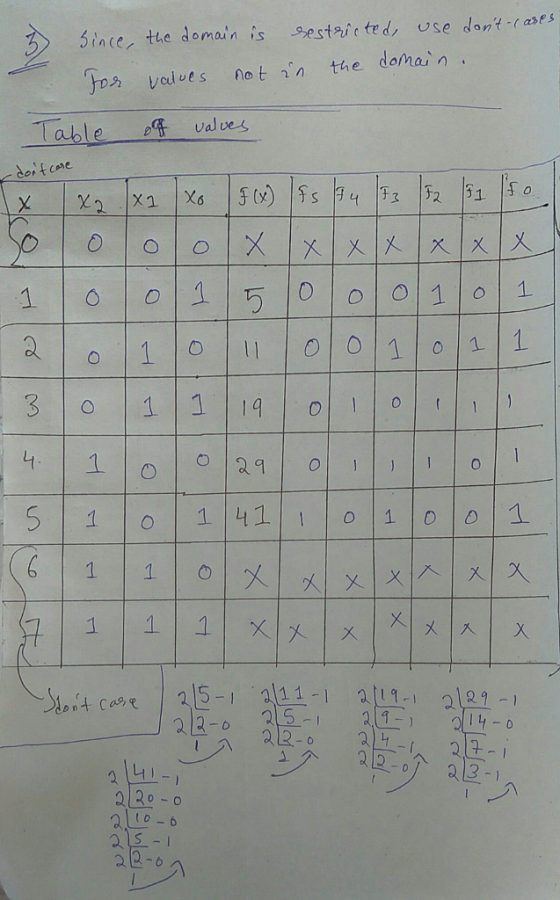

sted domain ince, the maximum valve of bits oiit me needed minimmjs ipot 1 ) Max m oFT(x) value w,11 beat 니! 2) Table cy values -to dotes nun eoutpoe bits maxn valve of output = 41 and 2 so, 6 bits w、like needed fo 七 Out PU

0 0
