Can you please provide the canonical sum of products and minimum sum of products for both functions?

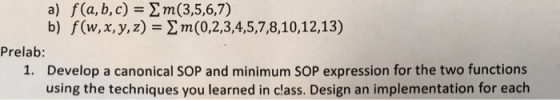

f(a,b,c)=Σ m(3,5,6,7) b) a) f(w, x, y, z)=Σ m(0,2,3,4,5,7,8,10, 12,13) Prelab: Develop a canonical SOP and minimum SOP expression for the two functions using the techniques you learned in class. Design an implementation for each 1.
