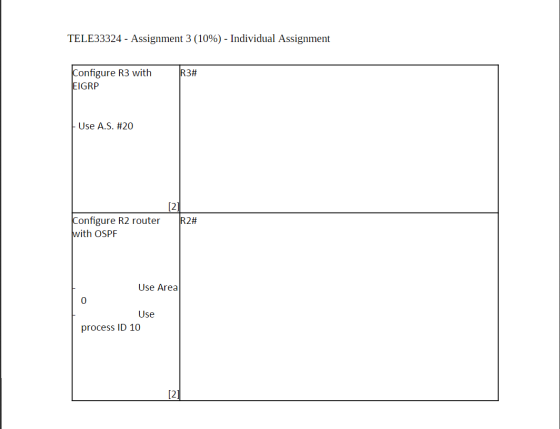

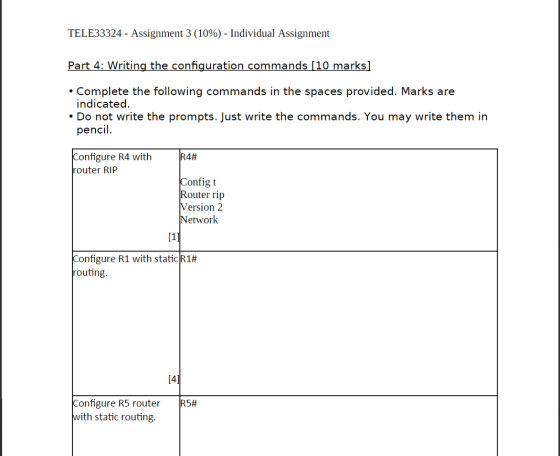

TELE33324 - Assignment 3 (10%) - Individual Assignment Packet Tracer Assignment 3 - VLSM - 10 MARKS (worth 10%) Objective: ToTELE33324 - Assignment 3 (10%) - Individual Assignment Part 4: Writing the configuration commands [10 marks] • Complete the fTELE33324 - Assignment 3 (10%) - Individual Assignment R3# Configure R3 with EIGRP Use A.S. #20 [2 R2# Configure R2 router wi

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

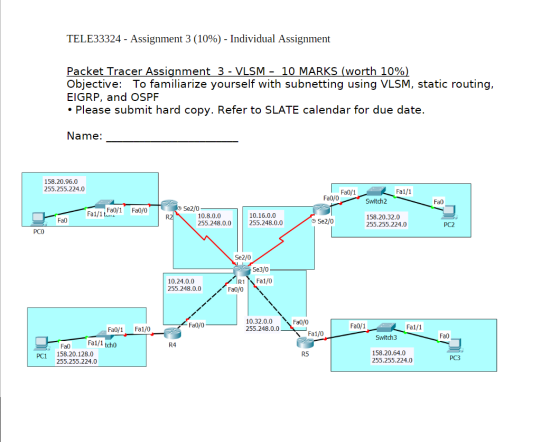

Screenshot of logical diagram configured with all given OSPF,static configurations:-

Cisco Packet Tracer Eile Edit Options View Tools Extensions Help Q 1 Logical Physical x 1395, y: 339 Fao Fa1/1 PC-PT PC3 Fa0/

Configuring R1 with a static Route:-

Static Routing:-

ip route [ip address of router] [subnet mask of destination network] [network address of the dest network]

R1#

conf t

ip route 10.0.0.0 255.248.0.0 10.8.0.0

end

R1#

conf t

ip route 10.0.0.0 255.248.0.0 10.16.0.0

end

R1#

conf t

ip route 10.0.0.0 255.248.0.0 10.24.0.0

end

R1#

conf t

ip route 10.0.0.0 255.248.0.0 10.32.0.0

end

**************************************************************************************************

Static Routing

IP route [ip address of router] [subnet mask of destination network] [network address of the dest network]

R5#

conf t

ip route 10.32.0.0 255.255.224.0 158.20.64.0

end

***************************************************************************************************

EIGRP configuration

eigrp [A.s #20]

network [network Address of dest router] [wildcard mask of the network]

R3#

eigrp 20
network 158.20.32.0  0.0.31.255
network 10.16.0.0  0.7.255.255
end

***************************************************************************************************

router ospf [number]

network [network Address of dest router] [wildcard mask of the network] [area number]

R2#

router ospf 10

network 158.20.96.0 0.0.31.255 area 0

network 10.8.0.0 0.7.255.255 area 0

end

***************************************************************************************************

IF you have any doubt please feel free to comment. Thank You..Please UPVOTE.
